MOTU Monitor 8
24x16x8 Monitor Mixer & USB/AVB Audio Interface with 6-Channel Headphone Amplifier

OUR PART #:  MONITOR-8

Monitor 8 is three products in one: monitor mixer, headphone amp and audio interface.
Learn More
Our Price: $995.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

MOTU Monitor 8
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

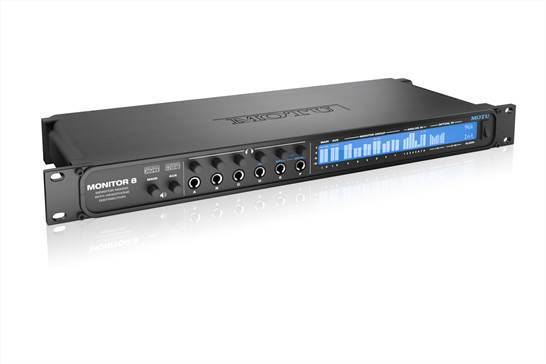

Monitor 8 is three products in one: monitor mixer, headphone amp and audio interface. With exceptional analog audio quality, Monitor 8 can mix 24 inputs, multi-channel computer audio, and dozens of AVB audio network channels to eight stereo monitor groups. Connect primary and secondary PA speakers or studio monitors to Main and Aux Outs. Then use six additional, independent monitor groups (A through F) to connect up to 12 headphones, 6 stage monitors, and four stereo in-ear modules or other stereo line out destinations.

Powerful DSP delivers large console style mixing with 48 channels, 12 stereo busses, and 32-bit floating point effects processing, including modeled analog EQ, vintage compression and classic reverb. The unit's extensive routing grid patches ins to outs, or splits inputs to multiple destinations. Use Monitor 8 as a stand-alone mixer and control everything from the Monitor 8's innovative web app running on your iPad™, iPhone™, tablet, smart phone, and laptop. Connect a second MOTU AVB interface (1248, 8M, 16A, 24Ai or 24Ao) with a simple Ethernet cable.

Add more I/O with the MOTU AVB Switch (sold separately). Build an AVB audio network with multiple switches and sub-millisecond latency, even over long cable runs. Stream hundreds of channels among devices and computers on the network. From studio to stage, Monitor 8 delivers superb sound quality, state-of-the-art operation, and reliable performance.

Mark of the Unicorn Monitor 8 Features:

  • Three products in one — 24 x 16 x 8 monitor mixer, 6-channel headphone amp and USB/AVB audio interface.
  • Superb audio quality — Employs the same industry-recognized analog design as MOTU's groundbreaking 1248, 8M and 16A audio interfaces.
  • 24 inputs and 8 stereo bus outputs — Mix 24 physical inputs, multi-channel computer audio, and 64 AVB audio network channels to eight stereo bus outputs (Main, Aux, and monitor groups A thru F). Inputsinclude 8 channels of balanced (TRS) analog and 16 channels (2 banks) of ADAT optical.
  • Six monitor groups with flexible outputs — Each group provides multiple mirrored outputs, including 2x 1/4-inch phones (front and rear panel), summed 1/4-inch mono out for stage monitors, and, for groups A-D, balanced stereo 1/4-inch outs.
  • Universal connectivity — Connects to a computer with standard AVB Ethernet or audio class compliant high-speed USB 2.0 (compatible with USB 3.0 and iOS). Discovery app and web app software works alongside any host audio software.
  • On-board 32-bit floating point DSP with large console style mixing and effects — Flexible 48-input digital mixer with 12 stereo busses and DSP effects, including reverb with sends, plus modeled analog EQ and compression, gate, and reverb.
  • System expansion — Add a 2nd MOTU AVB interface (1248, 8M, 16A, 24Ai or 24Ao) with a simple Cat-5e ethernet cable. Connect upto five MOTU interfaces using a MOTU AVB Switch (sold separately).
  • AVB audio networking — Build a network with multiple interfaces and computers using standard AVB switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point). Stream hundreds of audio channels among devices and computers on the network.
  • Flexible matrix routing and splitting — Send any input to any output, or multiple outputs. Includes routing to and from the computer, plus any devices on the AVB network.
  • Web app control — Control on-board DSP, mixing, device settings, and network audio routing from web app software running inyour favorite browser on a laptop, tablet or smart phone connected by wire or Wi-Fi to your local area network.
  • Stand-alone mixing with wireless control — Connect an Apple Airport™ or other Wi-Fi router directly to the Monitor 8 with a standard Ethernet cableand control the Monitor 8's powerful mixing and DSP effects from your smartphone or tablet, without a computer. Great for live show monitor mixing.
