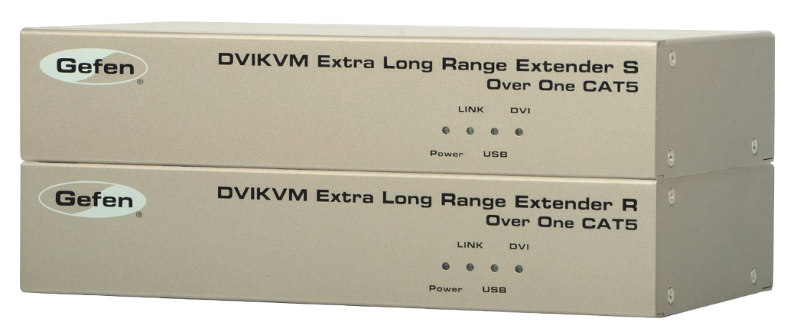

Gefen Inc EXT-DVIKVM-ELR
Extra Long Range Extender with DVI and USB

OUR PART #:  EXT-DVIKVM-ELR

The DVIKVM ELR from Gefen extends any DVI and USB source to a monitor, touch screen display...
Learn More
Gefen EXT-DVIKVM-ELR - Example Wiring Diagram
Gefen EXT-DVIKVM-ELR - Receiver Unit Rear View
Gefen EXT-DVIKVM-ELR - Receiver Unit Front View

Click a thumbnail to see more images. (6 total)

Our Price: $1,029.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Gefen Inc EXT-DVIKVM-ELR
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DVIKVM ELR from Gefen extends any DVI and USB source to a monitor, touch screen display, or other digital signage application over a distance up to 330 feet (100 meters) using one Cat-5 cable. USB 2.0 data rates up to 100 Mbps are supported in addition to backward-compatibility with USB 1.1. The Receiver unit allows the connections of up to three USB devices, providing access to printers, scanners, cameras, external storage media, digital signage, and automated control systems. This product uses Gefen ELR (Extra Long Range) technology, allowing DVI and USB signals to travel along the same CAT-5 cable, reducing cabling costs and facilitating easier installation.

How it works - Just place the DVIKVM ELR Sender unit next to the DVI source. Use the included DVI cable to connect the computer or other DVI source to the Sender unit. Use the supplied USB cable to connect the USB host (source) device to the USB port on the Sender unit. Connect the Receiver unit to the monitor or digital signage display with a DVI cable. Connect the USB devices to the Receiver unit. Use one Cat-5 cable, up to 330 feet (100 meters), to connect the Sender to the Receiver unit. Connect the included locking power supplies to the Sender and Receiver units, and then connect both power cords to available electrical outlets.

Gefen EXT-DVIKVM-ELR Includes:

  • (1) Gefen DVIKVM ELR - Sender unit(EXT-DVIKVM-ELRS)
  • (1) Gefen DVIKVM ELR - Receiver unit(EXT-DVIKVM-ELRS)
  • (1) 6 ft. DVI cable (M-M)(CAB-DVIC-DLN-06MM)
  • (1) 6 ft. USB Cable (A-B)(CAB-USB-6)
  • (2) 5V DC Locking Power Supplies(EXT-PS54AULPN)
  • (2) AC Power Cord(CAB-POWERCORD-XX)
  • (1) Quick-Start Guide (QSG-DVIKVM-ELR)

Gefen EXT-DVIKVM-ELR Features:

  • Extends DVI and USB 2.0 up to 330 feet (100 meters)over one CAT-5 cable
  • Supports resolutions up to 1080p and 1920 x1200
  • Supports up to 30 Mbps when using USB2.0
  • Backward-compatible with USB1.1
  • EDID management for rapid integration of source anddisplay devices
  • Field-upgradeable via mini-USBport
  • Supports any Operating System (OS)
  • Locking power supplies
  • 1U tall, half-rack width enclosures are rack-mountable using EXT-RACK-1U

Gefen EXT-DVIKVM-ELR Specifications:

  • Video Amplifier Bandwith: 165MHz
  • MaximumTMDS Clock: 165 MHz
  • Video Input Connector (Sender): (1) DVI-I 29-pin,female (digital only)
  • Video Output Connector (Receiver): (1) DVI-I 29-pin,female (digital only)
  • USB Host Connector (Sender): (1) USB Type B,female
  • USB Device Connectors (Receiver): (3) USB Type A,female
  • Link Connector (Sender/Receiver): (1) RJ-45,Shielded
  • Service Connector for Field Upgrades: USB Mini-B,female
  • Power Supply (Sender / Receiver): 5V DC,Locking
  • Power Consumption (Sender / Receiver): 10W(max.)
  • Dimensions (WxHxD): 8.5" x 1.75" x4.5"
  • Shipping weight: 8 lbs.
