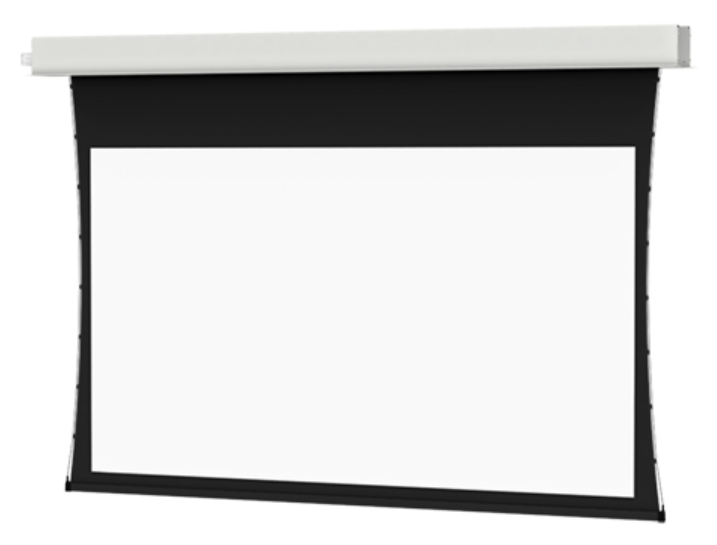

Da-Lite 21797LSR 65" x 116" Tensioned Advantage Electrol HD Progressive 0.9 Screen, SCB-100 RS232

Designed to eliminate the extra step of finishing the screen with trim, the 21797LSR is one of Da-Lite's Advantage line of projection screens that is designed with ceiling trim already in place. Once the screen is installed, the screen’s trim conceals the rough opening eliminating the need to complete additional trim work. Sliding installation brackets make it easy to attach the screen housing to the structure above the drop ceiling. Tensioned screens ensure the smoothest surface possible.

The Tensioned Advantage® Electrol® screen features simple in ceiling installation that can be done in two stages. The screen case can be installed during the rough-in construction stage and the fabric assembly can be completed during the finishing stage. The Tensioned Advantage Electrol does not include the automatic closure door.

This version comes with an HD Progressive 0.9 screen surface is ideal for moderate to high output projectors, the light gray surface achieves a perfect balance between color reproduction and image contrast. Seamless in any width up to 16' in height. HD Progressive 0.9 can be cleaned with mild soap and water, is flame retardant and mildew resistant. This surface has achieved GREENGUARD GOLD Certification.

This item also comes with an SCB-100 RS232 Control option which is a 3-tiered solution allowing for greater flexibility in the deployment of screens in multi-conference room facilities with integrated dual RS-232 control plus a relay control.

Features:

• Standard Silent Drive System to keep your screen whisper quiet (sizes up to 10’x10’)
• Standard Low Voltage Control (LVC) to keep your screen operation flexible
• Smooth Roll Technology to keep your screen perfectly flat
• Slim-Tab, a lower profile and stronger tab design to keep your screen perfectly taut
• Simple Installation with a new installation kit and user-friendly packaging to keep you on schedule
• Support includes a comprehensive five-year warranty to keep you confident in your purchase
• UL Plenum rated case
• White powder-coated case for a clean aesthetic
• Tensioning Cable System to prevent warping and ensure even lateral tension
• Available with SCB-100 and SCB-200 (RS-232 serial control board) or Video Projector Interface (screen trigger) built into the case
• Decora-style, three-button wall switch
• Standard black backing retains projected brightness
• Seamless surfaces in all models

Specifications:

• Screen Type: Tensioned Advantage Electrol
• Format: HDTV (16:9)
• Viewing Area: 65" x 116" / 165 x 295 cm
• Nominal Diagonal: 133" / 338 cm
• Overall Length of Case: 134 1/2" / 342 cm
• Approx. Ship. Wt.: 135 lbs. / 61.2 Kg
• Screen Surface: HD Progressive 0.9 (Half Angle: 85°, Gain: 0.9)
• Options: SCB-100 RS232 Control
