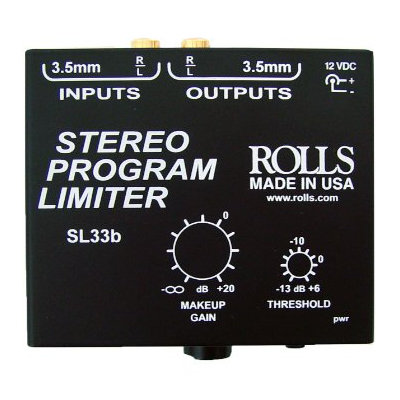

Rolls SL33b Stereo Program Limiter

The Rolls SL33b Stereo Program Limiter provides smooth dynamics processing for professional and consumer audio equipment. It features 1/8" stereo and RCA inputs and outputs for easy connection to any audio situation. Since there is no audio level standard for consumer audio, the SL33b keeps the levels maintained for a more comfortable listening environment. At the heart of the SL33b is a powerful compressor/limiter integrated circuit which provides automatic program limiting for unobtrusive and natural level control. A Threshold control has been provided to set the level at which the process engages, and a Makeup Gain control offers output leveling.

Rolls SL33b Features:

• Stereo Compressor/Limiter
• 1/8” stereo / RCA Inputs and Outputs
• Automatic program limiting
• Output Level control
• Threshold control

Rolls SL33b Specifications:

• Inputs: 1/8" stereo, RCA
• Outputs: 1/8" stereo, RCA
• Compression Ratio: Program dependent
• Threshold: Variable; -13 to +6 dB
• Input Impedance: 10 kOhms
• Output Impedance: 50 Ohms
• Max Output Level: +13 dBV
• Power: 12 VDC, 50 mA
• Dimensions (WxHxD): 4" x 3.35" x 1.5"
• Weight: 1 lb
