Sescom SES-FA1
2-Channel Unbalanced Line Level Audio Over Fiber Extender Kit


Our Price: $279.95
List Price: $295.00
You save 5%!
In Stock

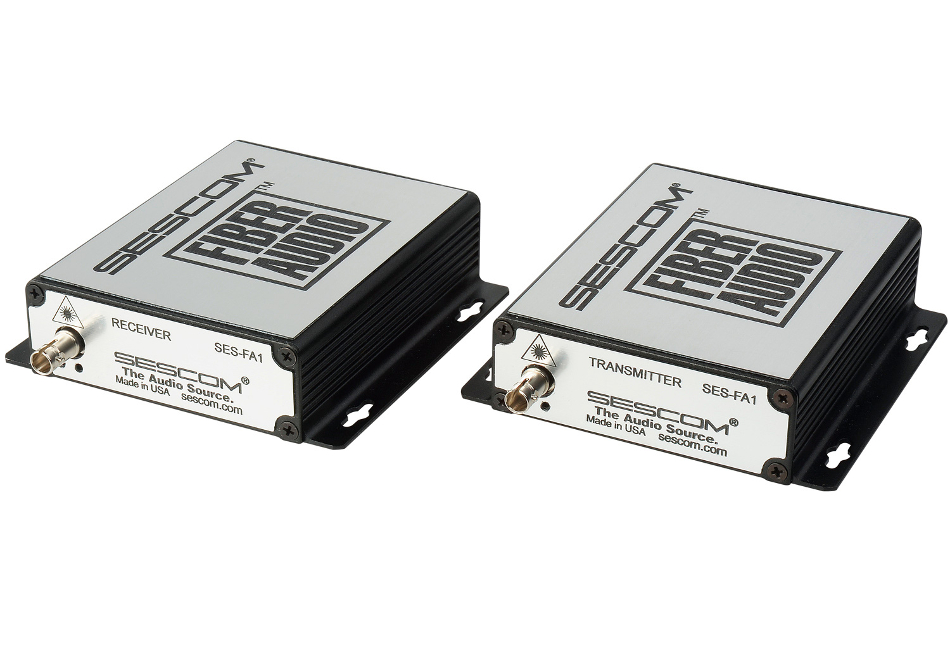

The Sescom SES-FA1 is a complete transmitter and receiver system for sending unbalanced 2 channel line-level audio over singlemode optical fiber. Housed in a rugged lightweight aluminum enclosure the SES-FA1 is perfect for broadcast or corporate studios, broadcasting in the field, OB vans, rental & staging, auditoriums, stadiums and theaters or anywhere you need to send audio up to 80Km (single mode - 2Km on multimode). Professional ST & L/R RCA connectors are included.

The Transmitter and Receiver units are each powered by a 5VDC 2Amp power supplies and feature compact 4" x 4" x 1.25" enclosures.

Sescom SES-FA1 Features:

  • Send Unbalanced 2-Channel Line-Level Audio over Singlemode Optical Fiber
  • 48 khz Sampling Rate
  • Rugged, Compact (4" x 4" x 1.25") LightweightAluminum Enclosures
  • Send Audio up to 80Km (single mode - 2Km onmultimode)
  • Professional ST & L/R RCA Connectors
  • 5VDC 2 Amp Powered
  • Complete Transmitter & Receiver System

Sescom SES-FA1 Specifications:

  • Single mode or Multimode fiber:  50/125umultimode, 62.5/125u multimode, & 9/125u Single mode supported fiber
  • Support Multi-mode Fiber up to 2Km
  • Support Single-mode Fiber up to 20Km
  • Single-Fiber Digital Transmission
  • Bit Rate:  24-bit
  • Sampling Rate:  48 khz
  • 2 Channel Analog Audio to Fiber Transmission
  • User Friendly RCA inputs and outputs
  • Signal to Noise Ratio:  > 70 dB
  • 2 Channel Line level inputs and outputs on RCAConnectors
  • AC World Voltage 100-240VAC 50/60Hz Adapters Includedfor Power
  • Industry Standard Operational TemperatureRange:  -10°C to +75°C
  • Storage Temperature Range:  -40°C to +85°C
  • Humidity Operating Range up to 95%/non-condensing
  • Large Dynamic Optical Range Requires No Optical Adjustments / SelfAdjusting
Add to Cart

We're sorry, only of this item available

Call a Sales Pro at 800-356-5844 for more information
