Cables To Go 28758

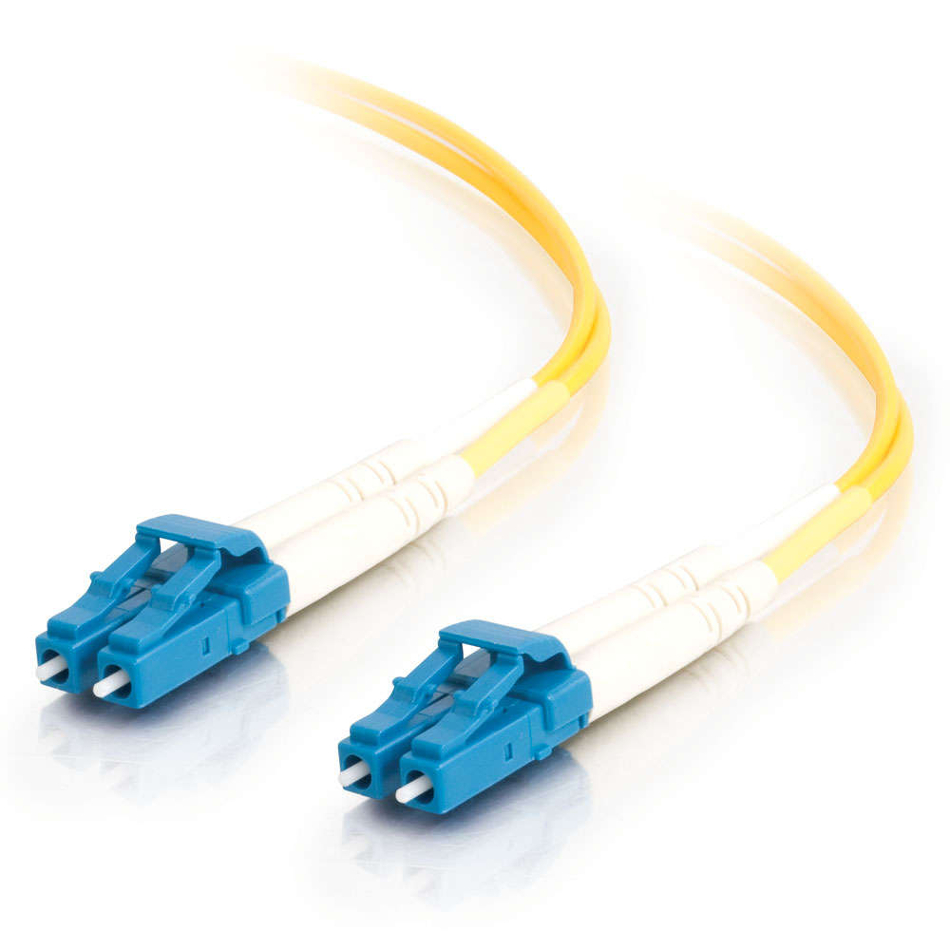

9.8 ft LC-LC 9/125 OS1 Duplex Single-Mode PVC Fiber Optic Cable

OUR PART #:  28758

The Cables To Go 28758 fiber optic cable is a cost-effective solution that provides high bandwidth and transmission rates over longer distances.
Learn More
Our Price: $24.41
List Price: $44.99
You save 46%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Cables To Go 28758
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Cables To Go 28758 fiber optic cable is a cost-effective solution that provides high bandwidth and transmission rates over longer distances. With LC to SC termination, this high quality fiber optic patch cable is specifically designed for gigabit ethernet applications. The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs.

Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 9/125 Single-mode fiber, immune to electrical interference.

Cables To Go 28758 Specifications:

  • Jacket Color:  Yellow
  • Weight:  0.456 lbs
  • Length:  9.8 ft (3 m)
  • LC Connector Dimensions:  10.75mm Height x 12.5mm Width x 50mm Depth (with installed duplex clip)
  • Maximum Connector Loss:  0.50 dB
  • Typical Connector Loss:  0.30 dB
  • Typical Return Loss:  -55 dB
  • Buffer Material:  PVC
  • Buffer OD:  900 µm
  • Jacket Material:  PVC (OFNR riser-rated)
  • Jacket OD:  1.8 mm
  • Installation Tensile Load:  100 N (445 lbs)
  • Long-Term Tensile Load:  50 N (222 lbs)
  • Maximum Tensile Load:  100 N/cm
  • Installation (Loaded) Minimum Bend Radius:  5.0 cm (1.97in)
  • Long-Term (Unloaded) Minimum Bend Radius:  3.0 cm (1.2in)
  • Crush Resistance:  750 N/cm
  • Impact Resistance:  1,000 cycles
  • Flex Resistance:  5,000 cycles
  • Attenuation at 1550 nm:  0.25 dB/km
  • Attenuation at 1310 nm:  0.35 dB/km
  • Operating Temperature:  -20°C to +70°C
