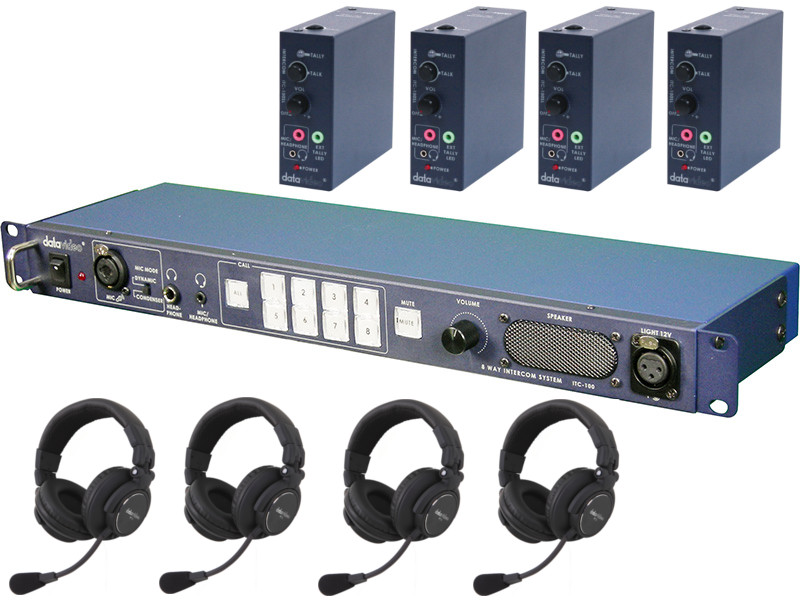

Datavideo ITC100-HP2K ITC-100 Wired Intercom System with 4 HP-2A Headsets

OUR PART #: ITC100HP2K MFR #: ITC100HP2K

Copied to clipboard

The Datavideo ITC100-HP2K is one of their Product Combo Packages. ...Read more

Datavideo ITC100-HP2K ITC-100 Wired Intercom System With 4 HP-2A Headsets Image 1
Datavideo ITC100-HP2K ITC-100 Wired Intercom System With 4 HP-2A Headsets Image 2
Datavideo ITC100-HP2K ITC-100 Wired Intercom System With 4 HP-2A Headsets Image 3
Datavideo ITC100-HP2K ITC-100 Wired Intercom System With 4 HP-2A Headsets Image 4
Datavideo ITC100-HP2K ITC-100 Wired Intercom System With 4 HP-2A Headsets
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Datavideo ITC100-HP2K is one of their Product Combo Packages. In this case, it includes an ITC-100 Intercom base station with 20 meter (65 foot) cables, upgraded headsets (HP-2A), ITC-100SL belt packs, and tally lights for 4 users. This product package is intended to help get you up and running in a timely manner.

The ITC-100 is a practical remote-user base station wired intercom with included tally lights that can use low cost headsets or high quality professional units. Users are connected to the base station via belt packs and 20 m (65 ft.) 5-pin XLR audio cables that may be extended up to 200 meters/650 feet. This portion of the package comes with a gooseneck microphone and LED light.

The upgraded HP-2A headsets are double-ear headsets that are compatible with the base station unit and feature soft ear pads for comfortable extended use, a noise cancelling microphone along with a strong resistance to feedback.

Base Station Features

  • Industry Standard 19" 1U rack design, for easy integration
  • Additional external earphone and microphone interface
  • Bi-color tally light indicator
  • Selectable channel talk, broadcast to all or mute.
  • Enables communication between the camera crew
  • Communication distance up to 200 meters
  • Supplied complete with Gooseneck Microphone and Light

Belt Pack Key Features

  • Wires Included - ITC-100SL includes one 1.8-meter tally light cable and one 20-meter XLR-to-XLR intercom cable.
  • Bi-Color Tally LED - The included TD-1 Tally Light functions with two colors — red for “live,” and amber for “up next.”
  • Half-Duplex Design - To eliminate the environmental noise

Double-Ear Headset Key Features

  • Reference Quality, Closed-Ear Monitors - HP-2A “ear muffs” are closed to block distracting outside noise.
  • Soft, Circumaural Ear Pad(s) - The ear pads are soft and comfortable for extended use.
  • Noise Cancelling Microphone - HP Headsets improve communication by blocking outside noise from sneaking into the microphone.
  • High Gain Before Feedback - The headsets’ speakers have a strong resistance to “clipping” when monitoring loud noises.

Specifications

  • ITC-100 Base Station:
    • Power: 12V 1.0A DC operation 110/220
    • Size: 1 RU high chassis
    • Interface: External headset and microphone
    • Base Station Audio Level: -15dBm
    • Base Station Impedance: 51K ohm
  • Dimensions:
    • Length: 5 in. / 127 mm
    • Width: 19 in. / 483 mm
    • Height: 1.5 in. / 38 mm
    • Weight: 4 lbs. / 1.81 kg
  • HP-2A Headset:
    • Connection: x1 1/8" Audio/Microphone Connector
  • Headphone Specifications:
    • Transducer Principle: Dynamic
    • Operating Principle: Closed
    • Transmission Range: 10Hz-22KHz
    • Nominal Impedance: 24 Ohms
    • Nominal SPL at 1KHz: 98dB
    • T.H.D.: < 0.2% (at 1KHz 100mW)
    • Nominal Power Rating: 100mW
  • Headset Microphone Specifications:
    • Transducer Principle: Condenser
    • Transmission Range: 20-16KHz
    • Polar Pattern: Omni-Directional
    • Nominal Impedance: 2.2K ohms
    • Sensitivity: -64dB
  • Beltpack and Tally Lights:
    • Input: 5-pin XLR Connector
    • Mic/Headset Socket: 3.5mm Stereo Combination Socket (Headset+Mic)
    • Headset Impedance: 8~600 ohms 100mW (min)
    • Mic Level: -67dB
    • Frequency Response: 550-3.6KHz, < +/-3dB
    • THD: Less Than 3 Percent
    • S/N: Greater Than 50dB
    • Tally Out Socket: 3.5mm Jack Socket to TD-1 Tally Light
    • Tally LED: Red (live), Amber (Up Next)
    • Operating Range: Up to 200-meters between base station and belt pack
    • Belt Pack Dimensions: 114mm x 97mm x 35mm / 4.49 x 3.82 x 1.38 in.
    • Belt Pack Weight: 348g / 12.28 oz.
