ETS ETS-PA203P InstaSnake Passive Network Audio Snake with (3) Sends and (1) Pigtail Return

The ETS PA203P is an InstaSnake series passive network audio snake that features three (3) male XLR sends, one (1) 18" female XLR pigtail and one (1) RJ45 ethernet jack. This unit allows you to run audio signals over a single run of CAT5, 5e, 6 or 6a data cables. With a roll of cable, this compact unit is easily transported and/or stored solving dozens of live and recording sound problems.

The InstaSnake is a passive unit, so you do not need power, and accepts mic or line level analog or digital audio and supports phantom power when using shielded CAT5 or 6 cables. This unit also features bi-directional capability which can be input directly into analog or digital consoles.

Designed to the highest professional standards, the PA203P InstaSnake has a wide, flat frequency response, low THD and residual noise. The InstaSnake has been factory tested to 1900 feet over CAT5 using balanced line low impedance dynamic microphones, and phantom power has been tested to 850 feet over shielded cable, which is required to pass phantom power.

ETS PA203P Features:

• Easily transported
• Expandable - add a second unit to increase the number of channels
• May be used for analog or digital audio - mic or line level
• Supports 48V phantom power when using shielded CAT5 cable
• Rugged, road-ready construction
• RoHS Compliant
• USA Made - 100% Tested

ETS PA203P Specifications:

• Crosstalk at 20 kHz:
  • -109 dB between Ch. 1 and Ch. 2
  • -102 dB between Ch. 1 and Ch. 3
  • -106 dB between Ch. 1 and Ch. 4
  • -106 dB between Ch. 2 and Ch. 3
  • -106 dB between Ch. 2 and Ch. 4
  • -109 dB between Ch. 3 and Ch. 4
• Distance:
  • UTP: 1900 ft
  • FTP or STP: 850 ft, phantom power only, female or male XLR to Ethercon RJ45
• Connectors:
  • Three (3) Male XLR Sends
  • One (1) 18" Female XLR Pigtail
  • One (1) RJ45 Ethernet Jack

Note

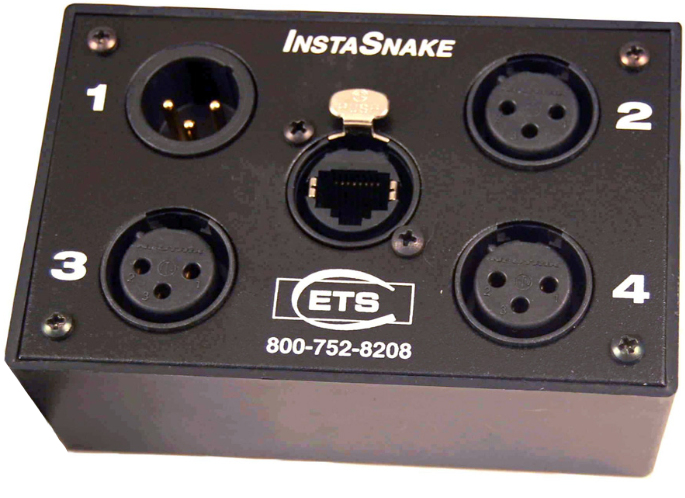

NOTE: Image shown above is for illustrative purposes only; actual product may vary in appearance and specification from the image shown. For more information on this and other products, contact your Sales Representative.
