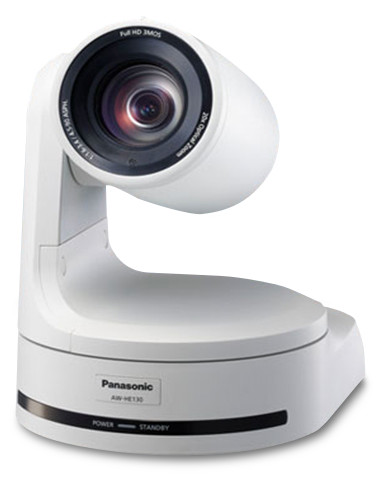

Panasonic AW-HE130
3MOS 1/3" 20x PTZ Camera System

OUR PART #  AWHE130

Call for price! Not available online.
List Price: $8,900.00

Select model: (shipping times are approximate)

Recommended Accessories

Panasonic's AW-HE130 is a pan/tilt/zoom camera employing high-sensitivity, low-noise 1/3" 3-MOS imagers that deliver exceptional pictures, even in low light conditions. Features include Power over Ethernet+ (POE+) for easier integration, and multi-stream transmission of H.264 HD video and audio (up to 1080/60p at 25Mbps.)

Panasonic's AW-HE130 builds on the features of their AW-HE120 PTZ, which has become the de facto standard remote control camera for educational, government, and house of worship use, and is likewise prevalent in news, staging, sports, and reality TV production. The HE130 offers 3G-SDI output (up to 1080/60p); stereo mic/line-level inputs for embedded and streaming audio; a Night Mode for hi-res, near IR video acquisition (using an optional IR-illuminator in the 900nm range); an Optical Image Stabilizer (O.I.S); and IP-Live Preview for remote control and management of up to 16 cameras via Browser.

With an outstanding signal to noise ratio of 60dB (F8/2000 lx, minimum illumination, 2.0 lx), 1000 TV lines of resolution, and such advanced features as 12-axis color correction, and Panasonic's exclusive DRS (Dynamic Range Stretch) and Hybrid Digital Noise Reduction, the HE130 continues to set performance standards for integrated pan-tilt cameras. The HE130 includes the same new three 2.4 megapixel MOS imagers and Digital Signal Processor (DSP) used in Panasonic’s latest broadcast camcorders, such as the AJ-PX270. Equipped with a fast F1.6 20X zoom lens plus a new high-res 1.4X digital extender, the compact HE130 is ideally matched to demanding applications in sports, rental/staging, news, and business and institutional video.

Standard professional interfaces include HD/SD-SDI, HDMI, and SD composite, as well as 3G-SDI for single cable delivery of high-quality content up to 1080/60p. In addition to continuing RS-422 serial compatibility with controllers designed for use with previous generations of Panasonic remote camera systems, the HE130 supports both direct and Web-based IP remote control. Direct IP or serial control is possible using Panasonic’s AW-RP50N and AW-RP120, as well as appropriately programmed systems from Crestron, AMX, Winnov, and other manufacturers. In addition, the camera’s built-in Web-server enables secure control, live preview, and setup from browser-equipped PCs—anywhere in the world.

Streaming video output is available from the AW-HE130 in several forms and formats, and at a wide range of transmission speeds. For remote production and video acquisition, 4 simultaneous streams are available in either H.264 or JPEG, with a maximum quality level of 1080/60p at 24 Mbps* available. For IP-Live remote monitoring and control, up to 16 cameras may be viewed simultaneously in a single Browser window, with extensive on-screen camera controls available when a single camera is selected for viewing.

Other useful new features include: native 24p and 30p output for teleproduction; iPro™ support for synergy with Panasonic’s high-end security systems; digital access authentication; MAC/Android support for web monitoring; color adjustment by color temperature; and VISCA remote control support.

The HE130 delivers a breadth of international HD and SD video signal formats including: 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 1080/29.97psF, 1080/25psF, 1080/23.98psF, 1080/29.97p, 1080/25p/1080/23.98p, 720/59.94p, 720/50p, 480/59.94p, 576/50p (HDMI), 480/59.94i and 576/50i. JPEG and H.264 video can be streamed over IP at up to 1080/60p.

The HE130’s optical zoom lens covers an extended range of shooting situations, from wide-angle to ultra-telephoto, with 35mm equivalents of 32.1 mm at the wide-angle end to 642.5 mm at the telephoto. The built-in remote-controllable four-position ND filter (clear, 1/8, 1/64, IR thru) facilitates flexible exposure control in brightly lit shooting situations.

The camera’s integrated pan-tilt head covers a wide range of motion, with a pan of ±175° and a tilt of –30° to 210°. The pan-tilt driver combines a high level of responsiveness with static precision. An NC (Noise Criteria) level of 35 is maintained for shooting in noise sensitive environments. Up to 100 preset positions and camera settings are stored in the camera, more than enough for the most demanding large venue installation. The camera weighs only 6.8 lbs., and consumes just over 21 watts at 12 VDC.

The camera is exceptionally easy to integrate, and is available in 2 colors (NOTE: PLEASE SPECIFY COLOR WHEN ORDERING) to suit a wide range of applications. A twist-lock ceiling mount is included as a standard accessory, and the HE130 is also equipped with a ¼-20 tripod mounting screw receptacle and a safety lanyard for use with many mounting and grip systems. An optional heavy-duty wall mount is available in either black (FEC-120WMK) or white (FEC-120WMW.)

*1920 x 1080 60 fps output is 1ch display only. For 2ch or more, display is max. 30 fps. Also, JPEG output is up to 3ch.

Panasonic AW-HE130 Specifications:

Environmental/Physical

  • Ambient operating temperature:  32 °F to 104 °F (0 °C to 40 °C)
  • Storage Temperature:  -4 °F to 122 °F (-20 °C to 50 °C)
  • Allowable humidity ranges:  20% to 90% (no condensation)
  • Weight (including mount bracket):  Approx. 6.83 lbs (3.1 kg)
  • Dimensions:  7-3/32" W x 9" H x 9-3/16" D (180 mm x 228 mm x 234 mm)
    (excluding protrusions, cable cover, direct ceiling mount bracket)
  • Available Colors: Black, White (NOTE: PLEASE SPECIFY COLOR WHEN ORDERING)

Power

  • Power Requirements:  DC 12 V (AC adaptor supplied) DC 42 - 57 V (PoE+ power supply)
  • Current consumption:  1.8 A (AC adaptor supplied) 0.6 A (PoE+ power supply)

Interfacing

  • Controller supported*1:  AW-RP120, AW-RP50, AK-HRP200
  • Inputs:
    • Input connector:
      • DC 12 V IN, G/L IN (BNC)
      • BBS (Black Burst Sync), tri-level sync supported
        -Locking to a color subcarrier is not possible with BBS.
      •  PoE+ (IEEE802.3at standard)
      • MIC/LINE input:
        • f3.5 mm stereo mini jack
        • Input impedance: High impedance
          -During MIC input -- Supported mic: Stereo mic (plug-in power, on/off switching via menu)
          -Supply voltage: 2.5 V +/- 0.5 V, Mic input sensitivity: Approx. -40 dBV +/- 3 dBV (0 dB=1 V/Pa, 1 kHz)
          -During LINE input -- Input level: Approx. -10 dBV +/-3 dBV
  • Outputs:
    • HD/SD SDI OUT:  SMPTE424/SMPTE292/SMPTE259 standards 75 Ohm (BNCx1)
    • VIDEO OUT:  NTSC/PAL 1.0 V [p-p]/75 Ohm (BNCx1)
  • I/O:
    • LAN:  LAN connector for IP control (RJ-45)
    • RS-422:  CONTROL IN RS-422A (RJ-45)

Functions & Performance

  • Imaging Sensors:  1/2.86-type Full-HD 3MOS
  • Lens:  Motorized 20 zoom, F1.6 to F3.4 (f=4.5 mm to 90 mm; 35 mm equivalent: 32.13 mm to 642.5 mm)
  • Focus:  Switching between auto and manual
  • Focus Distance:  Entire zooming range: 800 mm (2.62 ft.) Wide end: 400 mm (1.31 ft.)
  • Color Separation Optical System:  3MOS
  • Minimum Illumination:  2 lx (50%, F1.6, 36 dB)
  • Horizontal Resolution:  1000 TV lines Typ (Center area)
  • Gain Selection:  Auto, 0 dB to 36 dB
  • Frame mix*2:  0 dB, 6 dB, 12 dB, 18 dB, 24 dB
  • Electronic Shutter Speed:
    • 59.94p/59.94i:  1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
    • 29.97p:  1/30, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
    • 23.98p:  1/24, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
    • 50p/50i:  1/60, 1/120, 1/250, 1/500,1/1000, 1/2000, 1/4000, 1/10000
    • 25p:  1/25, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000,1/4000,1/10000
  • Synchro scan:  59.94 Hz:60.15 Hz to 642.21 Hz, 50 Hz:50.15 Hz to 535.71 Hz
  • Gamma:  HD, SD, FILMLIKE1, FILMLIKE2, FILMLIKE3, 0.30 to 0.75 (Manual setting)
  • White Balance:  AWB A, AWB B, ATW, 3200K, 5600K, VAR (2000K to 15000K)
  • Chroma Amount Variability:  OFF, -99% to 40%
  • Scene File:  Scene1, Scene2, Scene3, Scene4
  • Output Format:  1080/59.94p, 1080/29.97p*3, 1080/23.98p, 1080/59.94i, 1080/29.97PsF, 1080/23.98PsF, 720/59.94p, 480/59.94p(i)*4 , 1080/50p, 1080/25p*3, 1080/50i,80/25PsF,720/50p, 576/50p(i)*4
  • Synchronization System:  Internal/External synchronization (BBS/Tri-level sync)
  • Installation method:  Stand-alone (Desktop) or suspended (Hanging)*5
  • Camera/pan-tilt head control:  IP Connecting Cable:  When connecting through a hub: LAN cable*6 (category 5e or above, straight cable), max. 100 m (328 ft.)
  • When a hub is not used: LAN cable*6 (category 5 or above, crossover cable), max.100 m (328 ft.)
  • Camera/pan-tilt head control: RP Connecting Cable:  LAN cable*6 (category 5 or above, straight cable), max. 1000 m (3280 ft.)
  • RS-422A, AW series protocol
  • Pan-tilt operation speed:  0.08°/s to 60°/s
  • Panning range:  +/-175°
  • Tilting range*7:  -30° to 210°
  • Quietness:  NC35 or less

Footnotes:
*1 It may be necessary to upgrade the version of the controller in order to support the unit. For details on upgrading, contact your Sales Professional.
*2 This cannot be configured when the format is 1080/29.97p, 1080/23.98p, 1080/29.97PsF 1080/23.98PsF, 1080/25p, or 1080/25PsF.
*3 Native output.
*4 A "P" signal is output as HDMI output, an "I" signal is output as SDI and an analog output for output formats of 480/59.94p(i) and 576/50p(i).
*5 To ensure safety, the unit must be secured using the mount bracket supplied.
*6 Use of an STP (shielded twisted pair) cable is recommended.
*7 Depending on the pan or tilt position, the camera may be reflected in the image

For more information, please refer to the "Documentation" tab, or call your Sales Professional.
