Da-Lite 70079R
137" 16:10 Tensioned Advantage Deluxe Electrol with SCB-100 RS232 Control Option

OUR PART #:  70079R

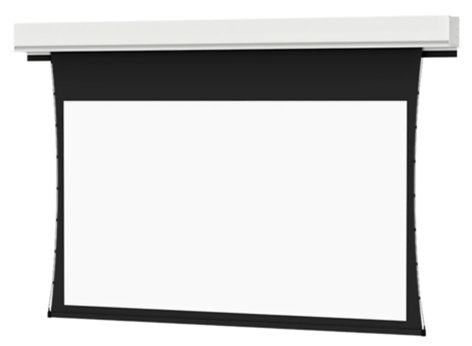

The 70079R comes from Da-Lite's ceiling recessed electric screen offerings - it's a 137" (diagonal) Tensioned Advantage Deluxe Electrol electric screen.
Learn More
Our Price: $5,352.00
List Price: $6,690.00
You save 20%!
Write the first review.
Da-Lite 70079R
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The 70079R comes from Da-Lite's ceiling recessed electric screen offerings - it's a 137" (diagonal) Tensioned Advantage Deluxe Electrol electric screen. This version comes with a SCB-100 RS232 Control Option which is a 3-tiered solution allowing for greater flexibility in the deployment of screens in multi-conference room facilities with integrated dual RS-232 control plus a relay control.

This unit also comes with a High Contrast Da-Mat® screen which is a vinyl screen surface that features a dark gray base for deeper reproductions of black, which improves the perception of contrast. Best in environments with a high output projector and completely controlled ambient light. Seamless in any width up to 16' in height.

High Contrast Da-Mat can be cleaned with mild soap and water, is flame retardant and mildew resistant. This surface has achieved GREENGUARD GOLD Certification.

Designed to eliminate the extra step of finishing the screen with trim, the Advantage line of projection screens is designed with ceiling trim already in place. Once the screen is installed, the screen’s trim conceals the rough opening eliminating the need to complete additional trim work. Sliding installation brackets make it easy to attach the screen housing to the structure above the drop ceiling.

Tensioned screens ensure the smoothest surface possible, and all Deluxe screens feature a closure door that hides the open space and screen in the ceiling, providing a cleaner aesthetic. The Tensioned Advantage® Deluxe Electrol® screen features simple in ceiling installation that can be done in two stages. The screen case can be installed during the rough-in construction stage and the fabric assembly can be completed during the finishing stage.

Da-Lite 70097R Features:

  • Standard Low Voltage Control (LVC) to keep your screen operation flexible
  • Smooth Roll Technology to keep your screen perfectly flat
  • Slim-Tab, a lower profile and stronger tab design to keep your screen perfectly taut
  • Tensioning Cable System to prevent warping and ensure even lateral tension
  • UL Plenum rated case
  • White powder-coated closure doors and case for a clean aesthetic
  • Available with SCB-100 and SCB-200 (RS-232 serial control board) or Video Projector Interface (screen trigger) built into the case
  • Decora-style, three-button wall switch
  • Standard black backing retains projected brightness on front projection surfaces
  • Seamless surfaces in all models

Da-Lite 70097R Specifications:

  • Format: Wide (16:10)
  • Viewing Area (H x W): 72.5" x 116" / 184 x 295 cm
  • Nominal Diagonal: 137" / 348 cm
  • Overall Length of Case: 142 1/4" / 361 cm
  • Screen Surface: High Contrast Da-Mat (Half Angle: 45°, Gain: 0.8)
  • Options: SCB-100 RS232 Control
  • Approximate Ship Weight: 170 lbs / 77.1 Kg
