The Light Source PCB3/8
Purlin Clamp with 3/8in Fasteners in Black Anodized

OUR PART #  PCB3/8

Our Price: $9.45
List Price: $13.95
You save 32%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

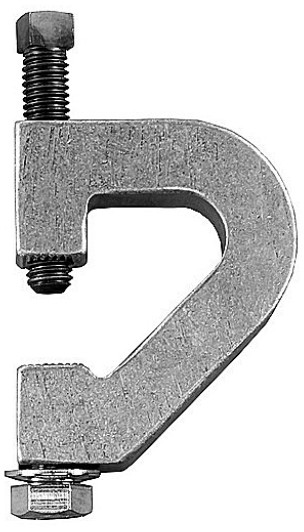

The Light Source's Purlin Clamp [model PCB3/8] is perfect for installing to purlins, I-beams and bar joists up to 1" thick. 3/8" × 2.5" square head set screw for locking onto I-beam. 1/2" × 1" grade 5 Hex Head Bolt supplied to connect load or use for 1/2" – 13 tpi threaded rod. Micro-grooves for secure connection to beam. 1" thick.

Light Source PCB3/8 Specifications:

  • Safe Vertical Working Load:  300 lbs.
  • Hardware:
    • 3/8" × 2-1/2" Square Head Set Screw
    • .5 × 1" Hex Head Cap Screw
    • 1" Belleville Washer
  • Dimensions:  3-3/8" × 3-7/8"
  • Weight:  0.40 lbs.

The Light Source PCB3/8
Purlin Clamp with 3/8in Fasteners in Black Anodized

OUR PART #  PCB3/8

Product Information:

The Light Source's Purlin Clamp [model PCB3/8] is perfect for installing to purlins, I-beams and bar joists up to 1" thick. 3/8" × 2.5" square head set screw for locking onto I-beam. 1/2" × 1" grade 5 Hex Head Bolt supplied to connect load or use for 1/2" – 13 tpi threaded rod. Micro-grooves for secure connection to beam. 1" thick.

Light Source PCB3/8 Specifications:

  • Safe Vertical Working Load:  300 lbs.
  • Hardware:
    • 3/8" × 2-1/2" Square Head Set Screw
    • .5 × 1" Hex Head Cap Screw
    • 1" Belleville Washer
  • Dimensions:  3-3/8" × 3-7/8"
  • Weight:  0.40 lbs.
