Product Overview

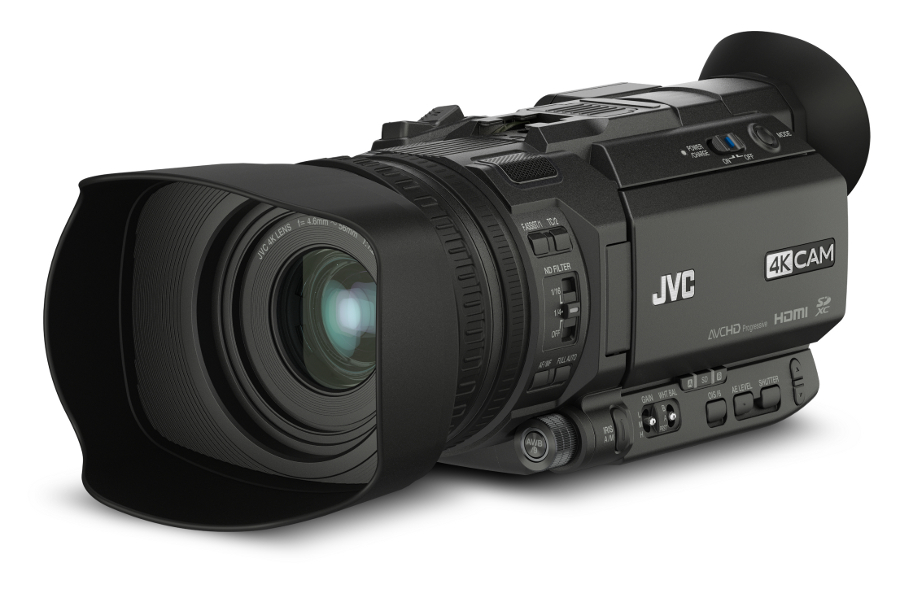

Small but mighty, the GY-HM170U brings high-end JVC features and 4K Ultra HD to your productions without getting in the way. Versatile enough to shoot stunning 4K full HD or space-saving yet equally impressive 4:2:2 Full HD at 50Mbps makes the 170U is the right camera for any application. The 1/2.3 4K CMOS sensor displays high sensitivity for beautifully detailed image capture in a variety of lighting conditions. Internal recording to SDHC/SDXC memory cards (sold separately) yields hours of HD recording in-the-field and all you need is your GY-HM170U. The camera downconverts UHD footage to standard HD for direct playback from the camera via an onboard HDMI connection. A simultaneous record option lets you choose between instant backup or extended capture time to fit your current workflow. Video this good deserves audio to match, so JVC included a removable handle that offers professional XLR audio connections and control. You never know when what's up ahead, be ready to capture it with the GY-HM170U.
JVC GYHM170U Includes:
- Battery(BN-VF823) x1
- AC Adapter x1
- XLR Audio Handle
JVC GYHM170U Features:
- Single 1/2.3-inch CMOS image sensor with 12.4 million pixels
- High quality integrated 12x F1.2-3.5 zoom lens (35mm equivalent: 29.5-354mm)
- Dynamic Zoom in HD mode combines optical zoom and pixel mapping to create seamless and lossless 24x zoom.
- 4K Ultra HD recording (150 Mbps, 24/30p) to SDXC(UHS-I Speed class3) card
- 4:2:2 Full HD recording at 50Mbps (24-60p)
- 120 fps recording for smooth slow motion (coming December 2015)
- Live 4K UHD output via HDMI connector
- 2 position ND filter (1/4, 1/16)
- Built-in stereo microphone
- Audio handle with 2 XLR connectors (as of 10/20/2015)
- Dual SDHC/SDXC slots enable dual, relay and backup
- Clip Continuous mode records multiple start/stop sequences as single clip
- 3.5-inch color LCD display (920K pixel) with smart focus assist function
- 0.24-inch color viewfinder (1.56M pixel) with smart focus assist function
- Wired remote control supported
- 9 user button assignable functions
- Includes BN-VF823 7.2V Battery, AC Adapter
JVC GYHM170U Specifications:
- GENERAL SPECIFICATIONS
- Power: DC 12V (AC adapter), DC 7.2V (Battery)
- Power Consumption: Approx. 8.1W (with VF in 4K REC mode, default setting )
- Weight: Approx. 1.11kg (including battery)
- Dimensions: 153 mm(W) x 112 mm(H) x 299 mm(D)
- Operation temperature: 0℃ to 40℃ (32°F to 104°F)
- Storage temperature: -20℃ to 50℃ ( 14°F to 122°F)
- Operating humidity: 30% to 80%
- Storage humidity: under 85%
- CAMERA
- Image Sensor
- 1/2.3-inch Back Side Illuminated CMOS
- Total 12.4M pixels
- Synchronizing: Internal synchronization
- Stabilizer: Optical image stabilizer
- Shutter speed: 1/4～ 1/10000
- Lens
- F1.2 (wide) to F3.5 (tele)
- f=4.67mm to 56.04mm
- 35mm equivalent: 29.5mm to 354mm
- Filter diameter: 62mm
- Gain: 0, 3, 6, 9, 12, 15, 18,21,24 dB, Lolux(30,36 dB), AGC
- ND filter: none , 1/4, 1/16
- LCD display: 3.5-inch 920 k pixels, 16:9
- Viewfinder: 0.24-inch 1.56 M pixel, 16:9
- VIDEO/AUDIO RECORDING
- Recording media: 2x SDHC/SDXC memory card (4K:UHS-1 U3 HD:50Mbps Class10, MOV HDClass 6 AVCHD Class4)
- Video recording
- Video codec: MPEG-4 AVC/H.264 (4K/HD) ,AVCHD(HD/SD)
- File format : MOV(H.264), MTS(AVCHD)
- 4K(H.264)
- NTSC setting: 3840 x 2160/29.97p, 23.98p (70, 150 Mbps)
- PAL setting: 3840 x 2160/25p (70, 150Mbps
- HD(H.264)
- NTSC setting:
- YUV422 mode:1920 x1080/59.94p.29.97p,23.98p(50Mbps),
- XHQ mode: 1920x1080/59.94p,29.97p,23.98p(50Mbps)
- UHQ mode: 1920x1080/59.94i,29.97p, 23.98p(35Mbps) 1280x720/59.94p(35Mbps)
- PAL setting: XHQ mode:1920 x 1080/50p(50Mbps)
- XHQ mode:1920x1080/50p,50i,25p(50Mbps),1920x1080/50i,25p(35Mbps), 1280x720/50p(35Mbps)
- AVCHD
- NTSC setting: Progressive mode(Max 28Mbps):1920 x 1080/59.94p,
- HQ mode(24Mbps):1920 x 1080/59.94i, SP mode(17Mbps):1920 x1080/59.94i
- LP mode(9Mbps):1440 x 1080/59.94i, EP mode(5Mbps):1440 x1080/59.94i
- PAL setting: Progressive mode(Max 28Mbps):1920 x 1080/50p,
- HQ mode(24Mbps):1920 x 1080/50i, SP mode(17Mbps):1920 x1080/50i
- LP mode(9Mbps):1440 x 1080/50i, EP mode(5Mbps):1440 x1080/50i
- SD(AVCHD)
- NTSC setting: 720 x 480/59.94i
- SD(H.264)
- NTSC setting: 720 x 480/59.94i
- Proxy(H.264)
- NTSC setting: HQ mode(3Mbps):960 x 540/29.97p, 23.98p, LP mode(1.2Mbps):480 x 270/29.97p, 23.98p
- PAL setting: HQ mode(3Mbps):960 x 540/25p, LP mode(1.2Mbps):480 x 270/25p
- Audio recording: LPCM 2ch, 48kHz/16-bit(4k/HD/SD MOV)), AC3 2ch(AVCHD), μlow 2ch(Proxy)
- INTERFACE
- Video output
- AV output (φ3.5mm mini jack x1)
- HDMI output x1
- Audio input: φ3.5mm mini jack x1
- Audio output: AV output (φ3.5mm mini jack x1)
- Headphone: φ3.5mm mini jack x1
- Remote: φ2.5mm mini jack x1
- USB: DEVICEx1(Mass storage)
- INCLUDED ACCESSORIES: Battery(BN-VF823) x1, AC Adapter x1, XLR Audio Handle
