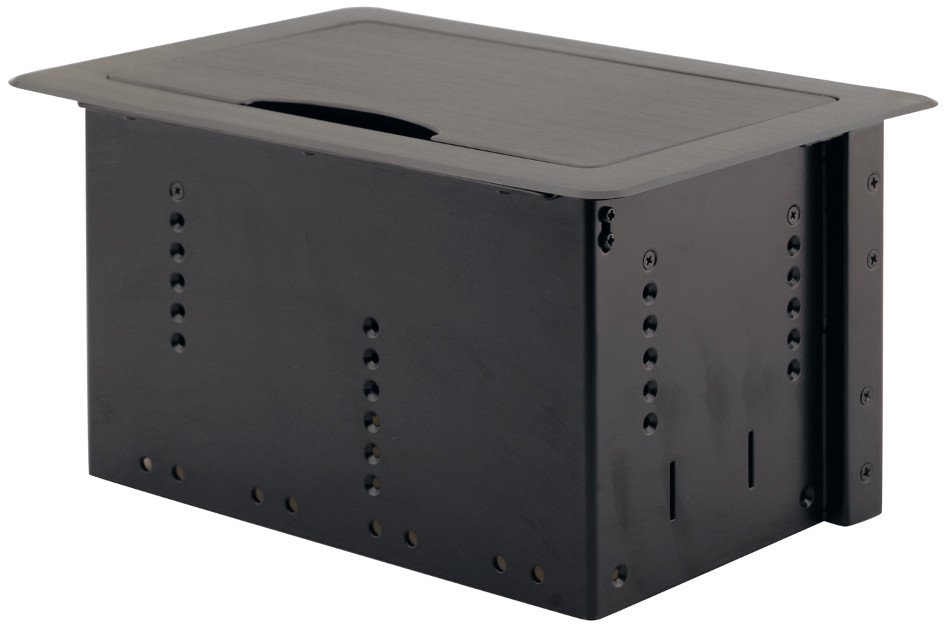

Kramer TBUS-10XL(BC) Table Mount Modular Multi-Connection Solution with Manually Retracting Lid

The Kramer TBUS-10XL is the enclosure of a new modular system with a manually retracting lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord.

Features

• Cover - Manually opens & closes.
• Inner Frames - T10F-22M can accommodate a combination of up to 2 power sockets, 2 inserts, 1 opening for a Kramer MegaTOOL SID-X1; T10F-33 contains 3 power sockets and 3 inserts.
• Power Sockets - 11 different "TS" single and 10 dual power socket options are available to accommodate power requirements worldwide.
• Power Cord - 8 different "C-AC" single power cords (and 3 "Y" power cords) for each power socket. UL and CE qualified.
• Connector Depth - Adjustable.
• Installation Requirement - Table cutout of 9.65" x6.07" (245mm x 154mm).
• Dimensions - Top plate (WxD): 6.8" x10.3" (171.6mm x 261mm).
• Weight - TBUS-10XL: 2.8 lbs. (1.35kg) approx.; table clamps: 0.6 lbs. (0.25kg) approx.
• Accessories - TBUS clamps (part of the TBUS enclosure), cut-out template, template screws, self-locking ties.
• Options (all sold separately) - Inner frames, passive wall plates and interfaces, power socket kits, power cord, T-2INSERT kit, T-RC-8IR kit, T-RC-76 kit, T-RC-78 kit, Kramer K-Able Box (furniture-mounted cable extension).
• Size - TBUS.

Note

NOTE: The TBUS enclosure, inner frame, power socket(s), power cord, and inserts are all sold separately.

NOTE: T10F-33 shown in picture is NOT INCLUDED, and is SOLD SEPARATELY. Contact your Sales Professional for more information.
