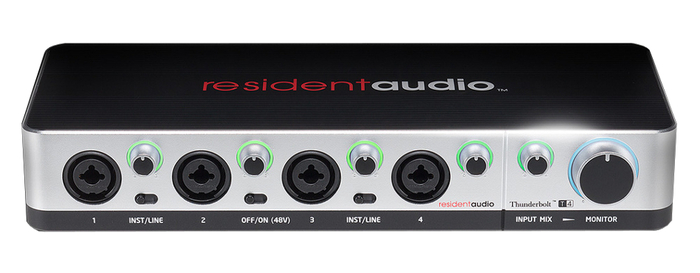

Resident Audio T4 4-Channel Bus Powered Thunderbolt Interface

The Resident Audio T4 is the first ever four-channel Thunderbolt™ audio interface which requires no external power — a breakthrough in the worlds of live performance and recording. It adds four channels of I/O to Thunderbolt-equipped Mac and Windows computers, with support for high-resolution 24-bit/96kHz audio and near-zero latency for virtually instantaneous recording and playback.

The lightweight and portable T4 comes with all required software drivers and a ton of innovative features such as an auto-detecting Multichannel Output Mode and Smart Monitoring, which automatically switches between stereo and mono depending upon input configuration. Four combo XLR / 1/4" input jacks allow you to plug in microphones, instruments and line-level devices — with phantom power for all inputs — and there are four balanced TRS outputs for connection to speakers and external mixers. MIDI connectors enable the T4 to be used as an ultra-stable MIDI interface, and there are even dual headphone outputs. Tilted tactile gain controls with three-color wraparound LEDs allow you to quickly set optimal levels, even in low-light onstage environments.

The T4 offers a number of features that make recording and live performance easy. These include a "Big Knob" master volume control; an Input Mix control for blending live signal with computer playback; Smart Monitoring, which automatically switches between stereo and mono depending upon input configuration; and two different modes of operation: Stereo Mix mode, optimized for the studio, and Multichannel mode, perfect for live performance.

The T4 allows you to record and play back audio with awesome sound quality. Unlike USB devices (which can only carry a maximum of 2.5 watts of bus power), Thunderbolt allows for a full 10 watts of power to be carried over the same wire as the audio signal. This allows Reseiden Audio to use higher quality components in the T4, such as custom designed analog preamps (the T4 has eight of them — two for each channel) and high-power A/D/A converters.

Setting up the T4 is fast and easy. It comes with everything you need: a Thunderbolt cable, a QuickStart guide, and a USB card preloaded with all required software and user manual. Simply plug it in, install the drivers, and you're good to go.

The T4's drivers have been programmed by some of the best engineers in the industry. They're specifically designed to ensure stable performance and minimal CPU overhead, allowing your computer to focus on tasks like effects processing and real-time graphic display.

Built with both the studio and the road in mind, the T4 is mounted in a sturdy aluminum/acrylic chassis that can stand up to the wear and tear of an artist on the go. And because it doesn't need a power cable, it can easily be integrated into any live performance rig.

Resident Audio T4 Features:

• Near-zero latency for virtually instantaneous recording and playback
• Support for high resolution 24-bit/96kHz audio
• Four channels of I/O
• Four combo XLR / 1/4" inputs, each with input gain controls and three-color wraparound LEDs
• Four balanced TRS 1/4" outputs
• Dedicated headphone output and secondary headphone output
• Input mix control to blend live signal with computer playback
• Master "Big Knob" output control
• Smart Monitoring automatically switches between stereo and mono
• High quality mic preamps and ADA converters
• Phantom power allows use of condenser microphones
• Bus-powered (no need for AC or batteries)
• Compatible with Thunderbolt™ equipped Mac and Windows computers
• Thunderbolt cable included
• Comes with all required software drivers
• Lightweight and portable
• Sturdy aluminum/acrylic chassis ensures roadworthiness

Resident Audio T4 Specifications:

• Connectors:
  • Inputs: Four (4) Combo XLR Mic / Balanced 1/4" TRS, line/instrument level
  • Outputs:
    • Four (4) Balanced 1/4" TRS line-level
    • One (1) Stereo 1/4" Headphone Output, Optional second headphone output via Output 3
  • MIDI: One (1) Input and One (1) Output
  • Thunderbolt Port: One (1), bus-powered
• Controls:
  • Trim: 4 (1 per channel) with 0 to +35 dBu mic gain range
  • LED Clip Indicator: 5 (1 per channel and 1 for Input Mix)
  • Line/Instrument Switch: 2 (Inputs 1 & 2 / 3 & 4)
  • Phantom Power: On/Off +48V (global for all channels)
  • Input Mix: Blends live input signal with computer output signal
  • Big Knob: Controls headphone level and monitoring level (Stereo Mix mode only)
• Microphone Preamplifiers:
  • Connector: XLR Female
  • Input Impedance: 1.5 kOhms
  • Dynamic Range: > 92 dB
  • Gain Range: +15 dB - +60 dB (45 dB range)
  • Maximum Input at Minimum Gain: -1 dBu
  • Equivalent Input Noise: -124 dBu (Gain +60 dB @ 150 Ohm termination)
  • Total Harmonic Distortion + Noise: > 0.009% (@ 1 kHz, -1 dBFS
• Line Preamplifiers:
  • Connector: TRS 1/4" Phone
  • Input Impedance: 9.2 kOhms
  • Dynamic Range: > 95 dB
  • Gain Range: +0 dB - +45 dB
  • Maximum Input at Minimum Gain: +15 dBu
  • Total Harmonic Distortion + Noise: > 0.008%
• Instrument Preamplifiers:
  • Connector: TS 1/4" Phone
  • Input Impedance: 1000 kOhms
  • Dynamic Range: > 91 dB
  • Gain Range: +0 dB - +45 dB
  • Maximum Input at Minumum Gain: +15 dBu
  • Total Harmonic Distortion + Noise: > 0.01%
• Audio:
  • Bit Resolution: 24-bit
  • Sampling Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
  • Mac- and Windows-Compatibility: Recommended Mac OS X 10.9 Mavericks or Higher, Windows 8 or higher
  • Supports: ASIO, Core Audio, Windows Audio Session API (Windows 8)
• Hardware:
  • Preamps: 2 per channel, mic/instrument
  • Chassis: Aluminum/Acrylic
  • A/D/A Converters: More than 100 dB dynamic range
  • Smart Monitoring: Stereo or Mono, selected by Line/Instrument Switch
  • Stereo Mix Mode: All inputs and outputs to Outputs 1 & 2 plus Output 3
  • Multichannel Mode: 4 individual output channels
• Dimensions: 10.6" x 4.4" x 1.8"
• Weight: 2.3 lbs
• Minimum System Requirements: Windows Computers:
  • Thunderbolt equipped system running Windows 8.0 or later
  • Internet connection or USB port (nneded for driver installation)
• Minimum System Requirements: Mac Computers:
  • Thunderbolt equipped system running OS X 10.9 or later
  • Internet connection or USB port (needed for driver installation)
