Mega Grid Lock with Black Finish


Our Price: $10.81
List Price: $17.00
You save 36%! (Low Price Guarantee)
In Stock

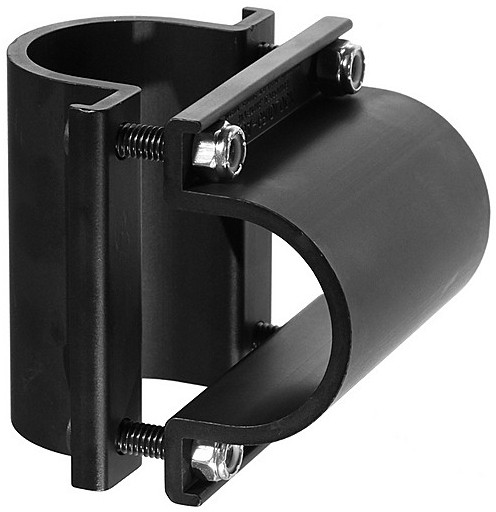

Designed for permanent pipe grid installations in studios and theaters, The Light Source's MGB Mega-Gridlock joins 2 overlapping pipes together in a 90° joint. Grooves act as a wrench holding the nut from turning while installing. It installs with a hex key tool in a battery drill.

It fastens any combination of 1-1/2" pipe (1.9" OD), 1-1/4" pipe (1.66" OD), and 2" OD Tube (Tight fit on 2" OD tube).

The Mega-Gridlock can be used on curved track down to a radius of 3 feet (or a circle with a diameter of 6 feet).

The Light Source MGB Specifications:

  • Minimum Size: 1.25" pipe, 1.66" OD pipe
  • Maximum Size: 1.5" pipe, 1.90" OD pipe, 2" OD truss tube
  • Safe Vertical Working Load: 1250 lbs. (568kg)
  • Hardware:
    • 4 each – 5/16" × 2" socket head cap screws
    • 4 each – 5/16" Nylock nuts
  • Dimensions: 3.65" × 3.65" x 4.375" tall max. (.375" plus the thickness of the 2 pipes joined.)
  • Weight: 15 oz.
  • Case Quantities: 12
Add to Cart

We're sorry, only of this item available

Call a Sales Pro at 800-356-5844 for more information
