DPA Microphones 4006A
d:dictate Omnidirectional Small Diaphragm Condenser Microphone

OUR PART #:  4006A

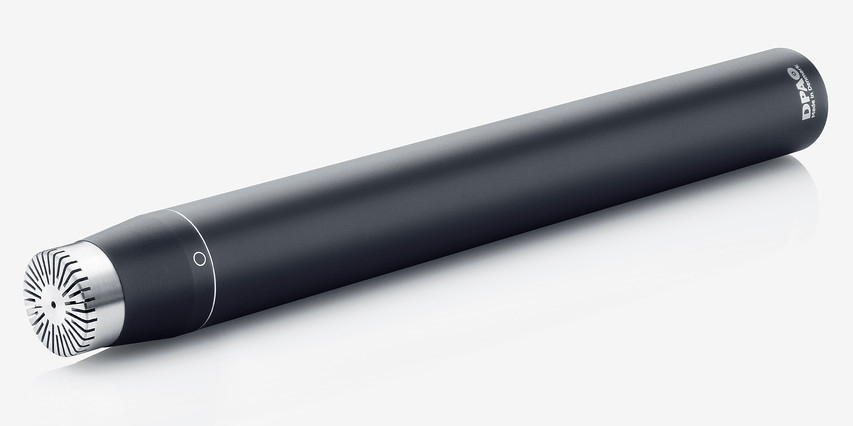

The DPA Microphones 4006A is a d:dictate series omnidirectional condenser microphone that is designed for use in a multitude of instrument miking applications.
Learn More
Our Price: $1,969.95
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones 4006A
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DPA Microphones 4006A is a d:dictate series omnidirectional condenser microphone that is designed for use in a multitude of instrument miking applications.

Timeless Transparency
The versatile DPA 4006A is without a doubt the most popular mic in their standard range and has rightly earned its status as a worldwide recording standard.  This highly sought after omni has forged its enviable reputation over the past quarter of a century by repeatedly exhibiting its total transparency in any recording situation, and by picking up incredible detail and depth of sound.  The definition of its high-frequency characteristics across a wide range of instruments is undeniably impressive for the vast majority of miking applications.

Renaissance Microphone
With the 4006A, engineers, broadcasters and musicians alike can achieve extremely clean, natural and precise reproduction in a variety of applications.  Ideal for A-B stereo pairs for symphonic concert hall recordings, the 4006A also excels on vocals and for close-miking instruments like grand piano, guitar, double bass and percussion.

Several Tools in One
A selection of acoustic modification accessories, including nose cone and interchangeable protection grids, allows the 4006A to be acoustically transformed into different microphone versions, making it the most multifaceted mic in your collection and a tremendous value.  By simply changing a grid, it is possible to gain several unique frequency responses and directional characteristics from a single mic.  Furthermore, these grids and elements will not produce any phase shift, noise or distortion that would otherwise be introduced by an electrical filter.

DPA Microphones 4006A Specifications:

  • Directional Characteristics:  Omnidirectional
  • Principle of Operation:  Pressure
  • Cartridge Type:  Pre-polarized condenser
  • Frequency Range:  10 Hz - 20 kHz
  • Frequency Range, ± 2 dB:  10 Hz - 20 kHz
  • Sensitivity, Nominal, ±2 dB at 250 Hz:  40 mV/Pa; -28 dB re. 1 V/Pa
  • Equivalent Noise Level, A-weighted:  Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
  • Equivalent Noise Level, ITU-R BS.468-4:  Typ. 27 dB (max. 29 dB)
  • S/N Ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL):  Typ. 79 dB(A)
  • Total Harmonic Distortion (THD):  < 1 % up to 139 dB SPL peak
  • Minimum Load Impedance: 2 kOhms
  • Dynamic Range:  Typ. 124 dB
  • Max. SPL, Peak Before Clipping:  147 dB
  • Switchable Attenuator:  0 dB / -20 dB
  • Output Impedance: < 200 Ohms
  • Cable Drive Capability:  328 ft (100 m)
  • Output Balance Principle:  Impedance balancing with Active Drive
  • Common Mode Rejection Ratio (CMRR):  > 60 dB
  • Power Supply (for full specifications):  48 VPhantom power (± 4 V)
  • Current Consumption:  2.8 mA
  • Connector:  XLR-3M. Pin 1: shield, Pin 2: signal+ phase, Pin 3: - phase
  • Color:  Matte black
  • Weight:  5.7 oz (163 g)
  • Diameter:  16 to 19 mm (0.63 to 0.75")
  • Capsule Diameter:  16 mm (0.63")
  • Length:  170 mm (6.7")
  • Output voltage, RMS:  > 5 V
  • Polarity:  +V at Pin 2 for positive sound pressure
  • Temperature Range:  -40 °C to 50 °C (-40 °F to 122 °F)
  • Relative Humidity (RH):  Up to 90 %
  • Classification:  Conforms to IEC 61672 Class I (with Near-field Grid DD0251)
  • Matching Tolerance:  ± 0.5 dB
  • Phase Deviation for Kit:  < 5°
