DPA Microphones 3511A
d:dictate Matched Pair Stereo Microphone Kit with (2) 4011A Cardioid Microphones

OUR PART #:  3511A

The DPA Microphones 3511A is a complete stereo kit with two compact 4011A cardioid microphones with active side cables...
Learn More

Call for price! Not available online.
List Price: $6,389.95

Similar Products

The DPA Microphones 3511A is a complete stereo kit with two compact 4011A cardioid microphones with active side cables, carefully factory-matched within ±1 dB on frequency response and sensitivity in the microphone's entire frequency bandwidth.

The first-order cardioid pickup pattern provides superb separation between sound sources when used as a spot mic on literally any style of live music, from rock ‘n' roll to opera. The 4011A is equally suitable for close-up work on acoustic guitar, grand piano, overheads, percussion, wind instruments and vocals as it is for spot-miking symphonies. It can handle incredibly high sound levels.

A flat on-axis frequency response and excellent phase response deliver a totally faithful reproduction of the original sound. The off-axis response is similarly smooth so that any leakage is an accurate reflection of the original, though attenuated according to the true first-order cardioid pickup pattern. The sensation of "being there" will always be more intense with the DPA 4011 than with any other cardioid. Chosen for its qualities as an all-around performer, the 4011 is a great, clean-sounding colorless mic. The variety of applications is as wide as the imagination of the user.

These cardioids are exceptionally linear in their frequency responses - also off-axis. Several standard set-ups such as ORTF and XY are possible. The included XY/ORTF stereo holder makes it possible to fix the two mics in one mount. The 4011A's handle very high SPL and will allow for close-miking as well as more distant placement. They are often used for piano recordings of jazz or pop or overheads for drums. Magnets mounts make it flawless to mount the mics at the piano frame without placing microphone stands.

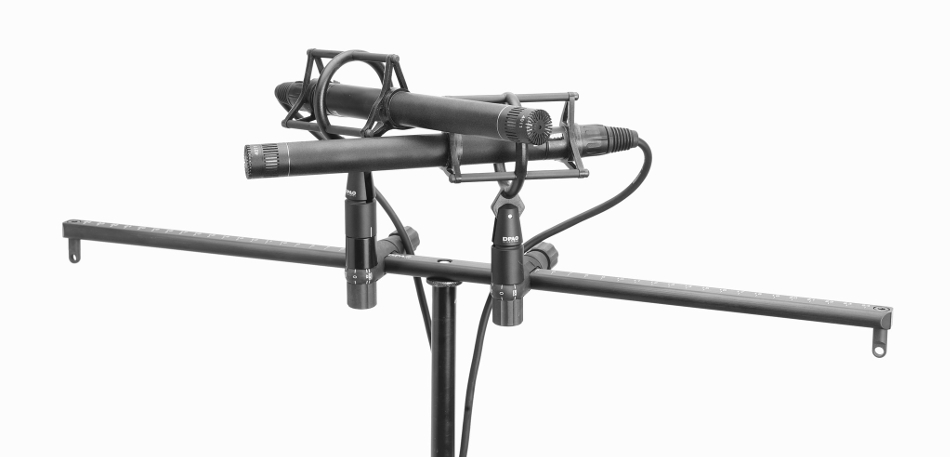

NOTE:  Image shown above is for illustrative purposes only; microphone stand and cables shown are NOT included with purchase of this kit. For more information on this and other products, contact your Sales Representative.

DPA Microphones 3511A Includes:

  • Two (2) 4011A Cardioid Microphones, factory-matched
  • One (1) CXO4000 Compact XY/ORTF Stereo Holder
  • One (1) UA0897 Shock Mount
  • One (1) EXY4000 Extension for CXO4000
  • Two (2) DUA0041 Foam Windscreen for mics w. active cable
  • Two (2) SM4000-C Suspension Mount for MMP-C
  • Two (2) GM1500 Gooseneck Mount
  • Two (2) MC4001 Microphone Clip for MMP-E active cable
  • Two (2) MB1500 Magnet Base for Microphone Holder

DPA Microphones 3511A Specifications:

  • Directional Characteristics:  Cardioid
  • Principle of Operation:  Pressure gradient
  • Cartridge Type:  Pre-polarized condenser
  • Frequency Range:  20 Hz - 20 kHz
  • Frequency Range, ± 2 dB, at 30 cm:  40 Hz - 20 kHz
  • Sensitivity, Nominal +/- 2 dB at 1 kHz:  10 mV/Pa; -40 dB re. 1 V/Pa
  • Equivalent Noise Level, A-weighted:  Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
  • Equivalent Noise Level, ITU-R BS.468-4:  Typ. 25 dB
  • S/N Ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL):  Typ. 76 dB(A)
  • Total Harmonic Distortion (THD):  < 1 % up to 139 dB SPL peak
  • Dynamic Range:  Typ. 121 dB
  • Max. SPL, Peak Before Clipping:  144 dB
  • Output Impedance:  100 Ohms
  • Minimum Load Impedance:  2 kOhms
  • Cable Drive Capability:  328 ft (100 m)
  • Output Balance Principle:  Impedance balancing
  • Common Mode Rejection Ratio (CMRR):  > 40 dB
  • Power Supply:  48 V Phantom power (± 4 V)
  • Current Consumption:  3.5 mA
  • Connector:  XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
  • Color:  Matte black
  • Weight:  3.8 oz (109 g)
  • Microphone Diameter:  0.75" (19 mm)
  • Capsule Diameter:  0.75" (19 mm)
  • Microphone Length:  1.38" (35 mm)
  • Output voltage, RMS:  2.2 V
  • Polarity:  +V at pin 2 for positive sound pressure
  • Temperature Range:  -40 °F to 113 °F (-40 °C to 45 °C)
  • Relative Humidity (RH):  Up to 90%
  • Matching Tolerance (frequency response and sensitivity):  ± 1 dB
  • Phase Deviation for Kit:  < 10°
