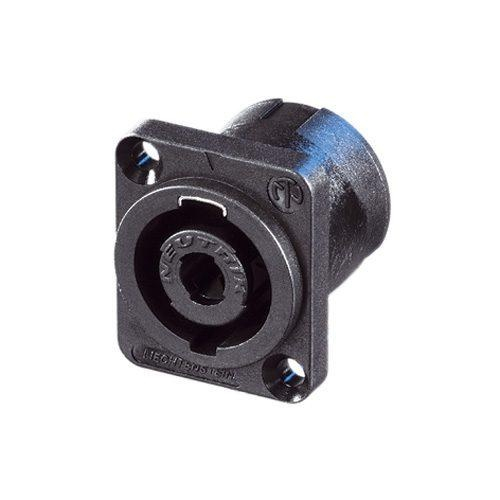

Neutrik NL4MD-V
4 Pole SpeakON Vertical PCB Mount Chassis Connector

OUR PART #:  NL4MD-V

The Neutrik NL4MD-V is a 4 pole chassis connector that features black D-size flange, countersunk thru holes and vertical PCB mount.
Learn More
Our Price: $2.68
List Price: $6.83
Save up to 67% when you order by quantity!
  • Buy 25: $2.42 each.
  • Buy 50: $2.33 each.
  • Buy 100: $2.25 each.
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NL4MD-V
Qty:
Similar Products

The Neutrik NL4MD-V is a 4 pole chassis connector that features black D-size flange, countersunk thru holes and vertical PCB mount.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Neutrik NL4MD-V Features:

  • Current rating 30 A rms
  • Glass reinforced materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
  • Airtight design - optimized for speaker applications
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Neutrik NL4MD-V Specifications:

  • Electrical:
    • Contact resistance:  </= 3 Megohms (inner) (after lifetime)
    • Dielectric strength:  4 kVdc (peak)
    • Insulation resistance:  > 1 Gigohm (after dampheat)
    • Rated current per contact:  30 A rms continuous
    • Rated current per contact:  40 A audiosignal, duty cycle 50 %
    • Rated voltage:  250 V (Insulation)
    • Attention:  speakON is NOT to be used as an AC mains or power supply connector!
  • Mechanical:
    • Lifetime:  > 5000 mating cycles
    • Wiring:  vertical PCB mount
    • Locking device:  Quick Lock
    • Mounting direction:  rear
    • Chassis shape:  D
    • Layout:  standard hole position, thru holes
  • Material:
    • Contact plating:  4 um Ag
    • Contacts:  Bronze (CuSn6)
    • Shell:  Polyamide (PA 6 30 % GR) black
  • Environmental:
    • Flammability:  UL 94 HB
    • Solderability:  Complies with IEC 68-2-20
    • Temperature range:  -30 °C to +80 °C
