Apogee Sound (Bogen) AFI-4MW
12" Passive Stage Monitor with Wide Angle Dispersion in White

OUR PART #:  AFI-4MW

The Apogee Sound AFI-4MWis a white 12" passive two-way multi-angle monitor loudspeaker that features a rotatable high-frequency horn with a 90° x 45° pattern.
Learn More
Our Price: $961.76
List Price: $1,210.75
You save 21%!
Write the first review.
Apogee Sound (Bogen) AFI-4MW
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Apogee Sound AFI-4MWis a white 12" passive two-way multi-angle monitor loudspeaker that features a rotatable high-frequency horn with a 90° x 45° pattern.

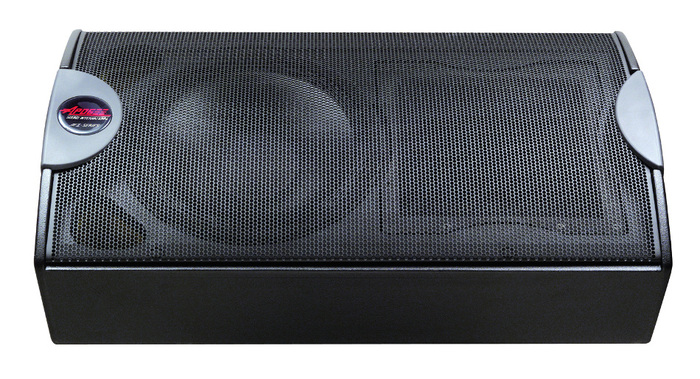

NOTE:  Image shown above is for illustrative purposes only; acutal product will come White in color. For more information on this and other products, contact your Sales Representative.

Apogee Sound AFI-4MW Specifications:

  • Format: Passive, Two-way
  • Drivers:
    • LF:  12" (305mm) driver
    • HF:  1.75" (45mm) voice coil, 1" (25.4mm) driver exit
  • Dispersion:  H: 90° x V: 45° (rotatable)
  • Frequency Response (1m on axis):  58 Hz to 20 kHz +/- 3 dB
  • Max. SPL (@1m):  121 dB cont./127 dB peak
  • PTML (Peak Transient Mechanical Limit): 138 dB
  • Sensitivity (1W @ 1m):  99 dB SPL/100 Hz to 4 kHz
  • HF: 103 dB SPL/1.4 kHz to 5 kHz
  • Nominal Impedance:  8 Ohms, each driver
  • Max. Power Handling (cont./peak):  200 W cont./800 W peak
  • Dimensions:  28.1" (714mm) W x 14.7" (373mm) H x 14.9" (379mm) D
  • Weight:  53 lb. (24 kg)
