Radio Design Labs RU-TPDA
4 Output Signal and Power Distributor Module for RDL Format-A Twisted Pair Products

OUR PART #  RU-TPDA

Our Price: $231.51
List Price: $309.69
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

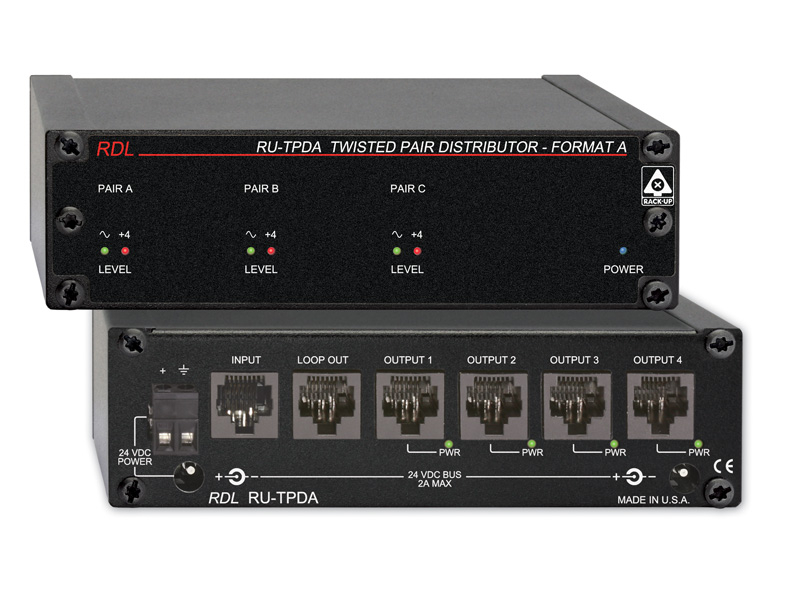

The Radio Design Labs RU-TPDA is a four output signal and power distributor module compatible with RDL Format-A twisted pair products. The INPUT RJ45 jack accepts a twisted pair cable originating from one or multiple FORMAT-A senders. The LOOP OUT connector permits the input signal to daisy-chain to additional distributor modules. The RU-TPDA input circuits bridge the cable pairs, allowing up to 10 distributors to be connected together to produce 40 distributed outputs. Further expansion is possible by using one distributor output to drive up to an additional 10 distributors.

Three RDL Dual-LED VU meters are provided on the front panel of the RU-TPDA. One meter monitors the audio level on each of the three FORMAT-A audio pairs.

The RU-TPDA is constructed in the durable MAX RACK-UP chassis which facilitates mounting three distributors in a single rack unit. A wide variety of mounting accessories are available in the RDL RACK-UP series. A power bus in each RU-TPDA allows power to enter one module at either side of the rack. The included power jumper cable provides a simple method of interconnecting one distributor module to the next, so multiple modules can be operated from a single power supply.

The RU-TPDA is powered directly from a 24 Vdc power supply using either one of the power jacks or the detachable terminal block. Local power connected to the module is also fed to all modules connected to the INPUT and OUTPUT RJ45 jacks. The power feeding each OUTPUT jack is separately protected by an automatically resetting fuse. A power LED is associated with each OUTPUT jack, facilitating identification of wiring faults. Module power is indicated by a front-panel LED.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product. Please click here for more information on the PS-24AS power supply.

Radio Design Labs RU-TPDA Features:

  • Input Jack Accepts Signals from All FORMAT-A Senders
  • Output Jacks Drive All FORMAT-A Receivers
  • Four Receivers may be Driven From Each Distributor
  • LOOP OUT Jack Can Feed Additional Distributor
  • Power Bus Provides Expansion to Adjacent Distributors
  • Powers All Connected Senders and Receivers
  • Dual-LED VU Meters Display the Level on Each Pair
  • Blue Power LED Shows the Module is Receiving dc Power
  • Rear-Panel LEDs Indicate Correct Output Voltage on RJ45s
  • High-Density Rack Mounting Using RACK-UP Accessories

Radio Design Labs RU-TPDA Specifications:

  • Input:  RDL TP Format-A
  • Input Connection:  RJ45
  • Format-A Signal Pairs Used (3):  A, B, C
  • Format-A Output:  RJ45 LOOP OUT
  • Outputs (4):  RDL TP Format-A
  • Output Connection:  RJ45
  • Frequency Response:  10 Hz to 50 kHz (± 0.1 dB)
  • THD+N:  < 0.005%
  • Noise below +4 dBu:  < 90 dB
  • Crosstalk:  < 90 dB (1 kHz); < 75 dB (20 Hz to 20 kHz)
  • Headroom above +4 dBu:  > 18 dB
  • CMRR:  > 80 dB (50 Hz to 150 Hz)
  • Indicators (11):  Power In (1); Power Out (4); 3 Dual-LED VU Meters (6)
  • Power Connections (3):  Power Jack (2); Detachable Terminal Block
  • Ambient Operating Environment:  0° C to 55° C
  • Power Requirement:  24 Vdc @ 120 mA plus connected loads
  • Dimensions (WxHxD):  5.8" x 1.7" x 3.25" (15cm x 4.3cm x 8.25cm)
  • Shipping Weight:  1.08 lbs.

Radio Design Labs RU-TPDA
4 Output Signal and Power Distributor Module for RDL Format-A Twisted Pair Products

OUR PART #  RU-TPDA

Product Information:

The Radio Design Labs RU-TPDA is a four output signal and power distributor module compatible with RDL Format-A twisted pair products. The INPUT RJ45 jack accepts a twisted pair cable originating from one or multiple FORMAT-A senders. The LOOP OUT connector permits the input signal to daisy-chain to additional distributor modules. The RU-TPDA input circuits bridge the cable pairs, allowing up to 10 distributors to be connected together to produce 40 distributed outputs. Further expansion is possible by using one distributor output to drive up to an additional 10 distributors.

Three RDL Dual-LED VU meters are provided on the front panel of the RU-TPDA. One meter monitors the audio level on each of the three FORMAT-A audio pairs.

The RU-TPDA is constructed in the durable MAX RACK-UP chassis which facilitates mounting three distributors in a single rack unit. A wide variety of mounting accessories are available in the RDL RACK-UP series. A power bus in each RU-TPDA allows power to enter one module at either side of the rack. The included power jumper cable provides a simple method of interconnecting one distributor module to the next, so multiple modules can be operated from a single power supply.

The RU-TPDA is powered directly from a 24 Vdc power supply using either one of the power jacks or the detachable terminal block. Local power connected to the module is also fed to all modules connected to the INPUT and OUTPUT RJ45 jacks. The power feeding each OUTPUT jack is separately protected by an automatically resetting fuse. A power LED is associated with each OUTPUT jack, facilitating identification of wiring faults. Module power is indicated by a front-panel LED.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product. Please click here for more information on the PS-24AS power supply.

Radio Design Labs RU-TPDA Features:

  • Input Jack Accepts Signals from All FORMAT-A Senders
  • Output Jacks Drive All FORMAT-A Receivers
  • Four Receivers may be Driven From Each Distributor
  • LOOP OUT Jack Can Feed Additional Distributor
  • Power Bus Provides Expansion to Adjacent Distributors
  • Powers All Connected Senders and Receivers
  • Dual-LED VU Meters Display the Level on Each Pair
  • Blue Power LED Shows the Module is Receiving dc Power
  • Rear-Panel LEDs Indicate Correct Output Voltage on RJ45s
  • High-Density Rack Mounting Using RACK-UP Accessories

Radio Design Labs RU-TPDA Specifications:

  • Input:  RDL TP Format-A
  • Input Connection:  RJ45
  • Format-A Signal Pairs Used (3):  A, B, C
  • Format-A Output:  RJ45 LOOP OUT
  • Outputs (4):  RDL TP Format-A
  • Output Connection:  RJ45
  • Frequency Response:  10 Hz to 50 kHz (± 0.1 dB)
  • THD+N:  < 0.005%
  • Noise below +4 dBu:  < 90 dB
  • Crosstalk:  < 90 dB (1 kHz); < 75 dB (20 Hz to 20 kHz)
  • Headroom above +4 dBu:  > 18 dB
  • CMRR:  > 80 dB (50 Hz to 150 Hz)
  • Indicators (11):  Power In (1); Power Out (4); 3 Dual-LED VU Meters (6)
  • Power Connections (3):  Power Jack (2); Detachable Terminal Block
  • Ambient Operating Environment:  0° C to 55° C
  • Power Requirement:  24 Vdc @ 120 mA plus connected loads
  • Dimensions (WxHxD):  5.8" x 1.7" x 3.25" (15cm x 4.3cm x 8.25cm)
  • Shipping Weight:  1.08 lbs.
Add to Cart

We're sorry, only of this item available



Call a Sales Pro at 800-356-5844 for more information
