Sony CBK55BK
EFP-Style Build-up Kit for PMW-F55 and PMW-F5 CineAlta cameras


The Sony CBK-55BK build-up kit enables one-person operation of the PMW-F55 and PMW–F5 CineAlta cameras...
Learn More
Our Price: $4,995.00
List Price: $5,850.00
You save 15%!
Write the first review.
Sony CBK55BK
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Sony CBK-55BK build-up kit enables one-person operation of the PMW-F55 and PMW–F5 CineAlta cameras, offering greater flexibility of shooting style for applications such as documentaries, sports and news.   This makes it easier to achieve a shooting style to suit a variety of needs while maintaining the familiar, easy-to-use interface features of traditional shoulder camcorders.

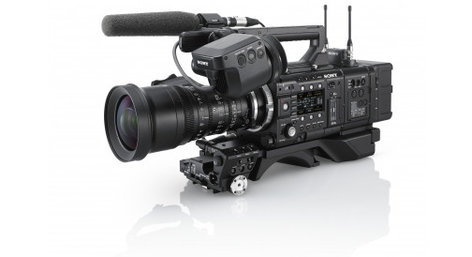

NOTE:  Picture shown is for illustrative purposes. Camera body, lens, and microphone are NOT INCLUDED, and are SOLD SEPARATELY. Contact your Full Compass Sales Professional for more information.

Sony CBK-55BK Features:

  • Good Weight Balance
    Ergonomic design usable with any lenses and featuring an adjustable shoulder pad and front block control.
  • Two adjustable blocks for good weight balance
    Shoulder pad has 33m adjustable range. Front block with all control buttons has 37mm adjustable range.
  • RAW recording functionality
    The build-up kit also supports the AXS-R5 for 2K/4K 16-bit RAW recording up to 240 fps in 2K.
  • Battery adaptor1
    Battery adaptor includes DC input, Hirose 1.8A DC output and D-TAP 4.17A (50W) DC output1.
  • Easy to attach/detach mechanism
    The build-up kit features an easy to attach/detach mechanism that allows you to use the PMW-F55/F5 as a full shoulder camera or in the original style, giving you more flexibility in your style of shooting.
  • Support of wireless audio receiver
    The build-up kit includes an audio section and input/output section at the rear side, offering support for wireless audio, with a familiar design common to main broadcast camcorders.
  • Lens support
    Using standard PL lenses or common B4 2/3-inch broadcast lenses with the LA-FZB1 or LA-FZB2will suit a wide variety of applications.
  • Supplied top handle
    The new improved top handle comes with a microphone holder and viewfinder cable protection. It also provides cover for the fan input on the top of the body to protect against rain or dust. The handle is also able to attach the CBK-WA100 wireless adaptor without needing a USB connection.

1 D-TAP DC output not available when using AXS-R5.
2 When using the LA-FZB2, the original handle supplied with the camera needs to be used.
