DPA Microphones IMK-SC4060
d:screet Instrument Mic Kit with SC4060 Miniature Microphone


The DPA Microphones IMK-SC4060 features a d:screet™ SC4060 Miniature Microphone with reinforced cable relief, a DAD6001-BC XLR adapter...
Learn More
Our Price: $479.95
Write the first review.
DPA Microphones IMK-SC4060
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The DPA Microphones IMK-SC4060 features a d:screet™ SC4060 Miniature Microphone with reinforced cable relief, a DAD6001-BC XLR adapter, and a selection of DPA's unique mounting accessories. This kit is designed to be used as a close miking solution for a wide variety of musical instruments. The SC4060 microphone offers a clean, detailed and natural sound quality, leaving placement up to the user, in order to receive the desired timbre for studio use or amplification for live use.

For maximum versatility, the DPA adapter system makes it possible to use the SC4060 with nearly any professional wireless system available.

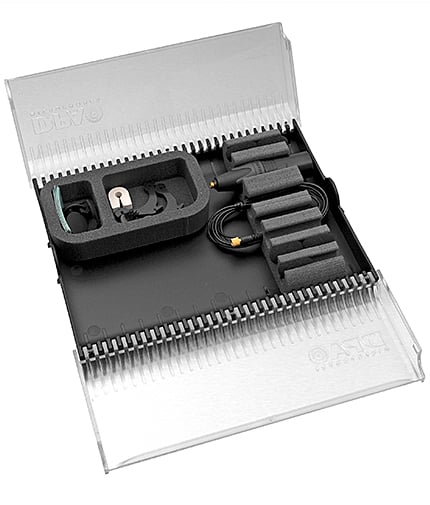

DPA Microphones IMK-SC4060 Includes:

  • One (1) SC4060 Hi-Sensitivity Omnidirectional Microphone
  • One (1) DAD6001-BC Adapter, MicroDot to 3-pin XLR (P48) with Belt Clip
  • One (1) DMM0002-B Miniature Double Pin
  • One (1) DMM0007 Universal Surface Mount with double-sided tape, 5 pcs.
  • One (1) DMM0011-B Magnet Mount
  • One (1) DUA0560 Windscreens, Black, 5 pcs.
  • Two (2) Microphone Holder for Strings

DPA Microphones IMK-SC4060 Specifications:

  • Directional characteristics: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser element with vertical diaphragm
  • Frequency range, ± 2 dB:
    • Soft boost grid: 20 Hz - 20 kHz ±2 dB, 3 dB soft boost at 8 - 20 kHz
    • High boost grid: 20 Hz - 20 kHz ±2 dB, 10 dB boost at 12 kHz
  • Sensitivity, nominal, ±3 dB: 20 mV/Pa; -34 dB re. 1 V/Pa
  • Equivalent noise level A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
  • Equiv. noise level ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
  • S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): 71 dB(A)
  • Total harmonic distortion (THD): <1% THD up to 123 dB SPL peak
  • Dynamic range: Typ. 100 dB
  • Max. SPL, peak before clipping: 134 dB
  • Output impedance: 30 - 40 Ohm
  • Cable drive capability: Up to 300 m (984 ft)
  • Power supply: For wireless systems: Min. 5 V – max. 50 V through DPA adapter; with DAD6001: 48 V phantom power ±4 V.
  • Connector: MicroDot
  • Weight: <7.5 g (0.26 oz) incl. cable and MicroDot connector
  • Microphone length: 12.7 mm (0.5")
  • Cable length: 1.8 m (6 ft)
