Blizzard Lightcaster WDMX Receiver 2.4GHz W-DMX Receiver

OUR PART #: LIGHTCASTER-W-DMX-R MFR #: 123585

Copied to clipboard

The Blizzard Lighting LightCaster™ W-DMX® Receiver is the receiver unit of the LightCaster W-DMX system. ...Read more

Blizzard Lightcaster WDMX Receiver 2.4GHz W-DMX Receiver Image 1
Blizzard Lightcaster WDMX Receiver 2.4GHz W-DMX Receiver Image 2
GWl473BBmoI?rel=0
1 Video
Blizzard Lightcaster WDMX Receiver 2.4GHz W-DMX Receiver
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

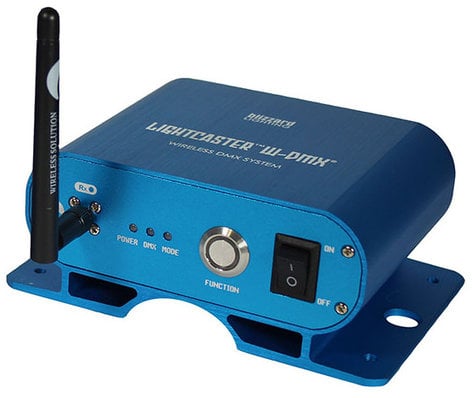

The Blizzard Lighting LightCaster™ W-DMX® Receiver is the receiver unit of the LightCaster W-DMX system. The Blizzard Lighting LightCaster W-DMX system is a full-featured, easy-to-use wireless DMX system with 4 user-selectable power levels and 16 automatic or manually selectable channel groups. 2.4Ghz operation allows maximum transmission distances of up to 500 meters under ideal conditions. A LightCaster W-DMX system must have, at a minimum, one transceiver (sold separately) and one receiver with up to an unlimited maximum number of receivers (additional receivers sold separately) per universe of DMX. A receiver (or transceiver) is required to receive the DMX signal transmitted wirelessly by the transmitter and output it to any downstream fixtures.

Includes

  • 1 x Receiver Unit
  • 1 x AC Power Cord
  • 2 x Pole Mounting Brackets
  • 1 x 2dBi Antenna
  • User Manual

Features

  • One button operation 2.4Ghz W-DMX® wireless system
  • Frequency-Agile 2.4Ghz Wireless DMX system with 16 frequency groups
  • 2-line LCD display for ease of operation
  • Simple plug-and-play setup
  • Channel group autoselection
  • Compatible with all DMX512 compliant equipment
  • FHSS (Frequency-Hopping Spread Spectrum) technology
  • PowerCON™-compatible power input
  • Integrated clamp for mounting to 2" truss

Specifications

  • Receiver sensitivity: 98dBm
  • Max Operating Range: 500 meters (line-of-sight)
  • Latency: < 5mS
  • Antenna type: 2dBi
  • Universes: 1 per transmitter, max. 16
  • Warranty: 2-year limited
