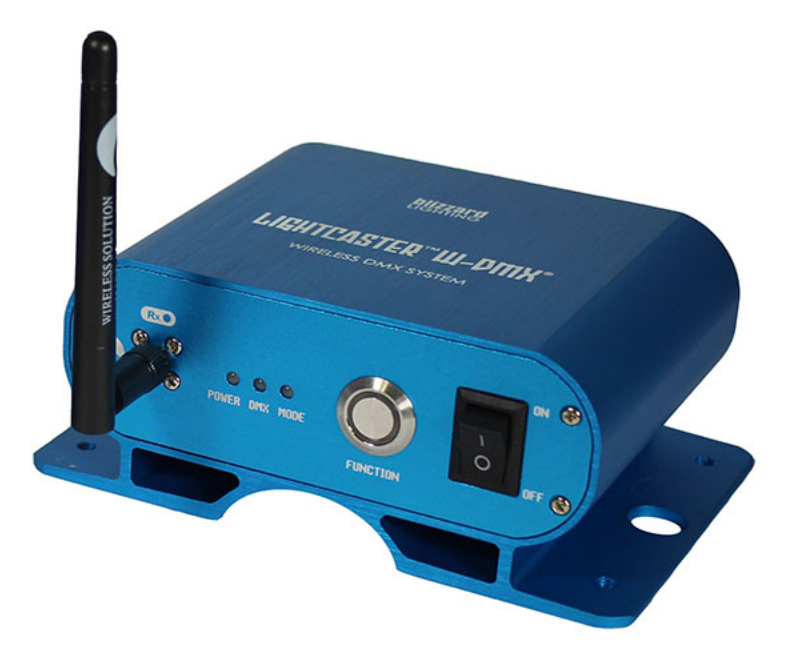

Blizzard Lighting LightCaster W-DMX
2.4 GHz Wireless W-DMX Transceiver


The Blizzard Lighting LightCaster™ W-DMX® is the transceiver (transmitter + receiver in one) portion of the LightCaster W-DMX system.
Learn More
Our Price: $299.99
List Price: $399.99
You save 25%!
Write the first review.
Blizzard Lighting LightCaster W-DMX
In Stock

Related Products

The Blizzard Lighting LightCaster™ W-DMX® is the transceiver (transmitter + receiver in one) portion of the LightCaster W-DMX system.

The Ultimate Plug-and-Play Wireless W-DMX Solution - the LightCaster W-DMX 2.4 GHz wireless system from Blizzard Lighting. For those not already familiar with W-DMX, it is a two-time award winning wireless DMX technology, created and owned by Wireless Solution Sweden AB... and is today the un-official standard for those that require the most dependable product available for transmitting lighting control data wirelessly.

Users of the LightCaster W-DMX system can expect an outstanding wireless range of up to 500 meters (line-of-sight) for any of Blizzard's DMX512 compliant equipment, and leave any worries behind concerning loss of signal due to its built-in FHSS technology (Frequency Hopping Spread Spectrum). FHSS are frequency hopping techniques, in which the transmitter jumps from sub-channel to another at a very rapid pace. This technique was first used by the U.S. military precisely because they are difficult to disrupt, and unless you knew the frequency hopping sequence, practically impossible to intercept.

Setting up a wireless DMX system with LightCaster W-DMX is a very simple procedure, with each of the two units having only a single function control button and a power, DMX, and mode status LED indicator. Users simply power on a transceiver to act as the transmitter, choose one of three modes (frequencies), then power on any number of receivers and the system will automatically sync together. For multiple transmitter setups, it's as simple as choosing a different frequency group for the next transceiver, then powering up the next receiver or a group of receivers. An unlimited number of receivers can be controlled by each transceiver, each one able to control 512 channels of DMX (1 universe).

Endless setup possibilities can be achieved by using either point-2-point or multipoint-2-multipoint operation:

  • Basic point-2-point systems are used when you want to send wireless DMXdata from a console to a single receiver. As the receiver accepts all 512 DMXchannels from the transceiver, you can easily daisy chain more fixtures bycable from the fixture with the wireless connection.
  • Up to 16 universes of DMX can be transmitted simultaneously using amultipoint to multipoint approach. All receivers in a multipoint system willlisten only to the designated transmitter without any delays or interferencefrom the systems working alongside.

Each LightCaster W-DMX unit also features an integrated clamp for mounting to 2" truss, is housed in a durable anodized aluminum casing, and equipped with a PowerCON™-compatible power connection, so no wall wart is necessary.

**Sold Separately - contact your Sales Professional for more information.

Blizzard Lighting LightCaster W-DMX Includes:

  • 1 x Transceiver Unit
  • 1 x AC Power Cord
  • 2 x Pole Mounting Brackets
  • 2dBi Antenna
  • User Manual

Blizzard Lighting LightCaster W-DMX Features:

  • One button operation 2.4Ghz W-DMX wireless system
  • Compatible with all DMX512 compliant equipment
  • FHSS (Frequency-Hopping Spread Spectrum) technology
  • PowerCON™-compatible power input
  • Integrated clamp for mounting to 2" truss

Blizzard Lighting LightCaster W-DMX Specifications:

  • Control:
    • Transceiver transmit power: 100mW
    • Receiver sensitivity: 98dBm
    • Max Operating Range: 500 meters (line-of-sight)
    • Latency: < 5mS
    • Antenna type: 2dBi
    • Universes: 1 per transmitter, max. 16
  • Warranty:  2-year limited warranty

NOTE: All specifications subject to change without notice.
