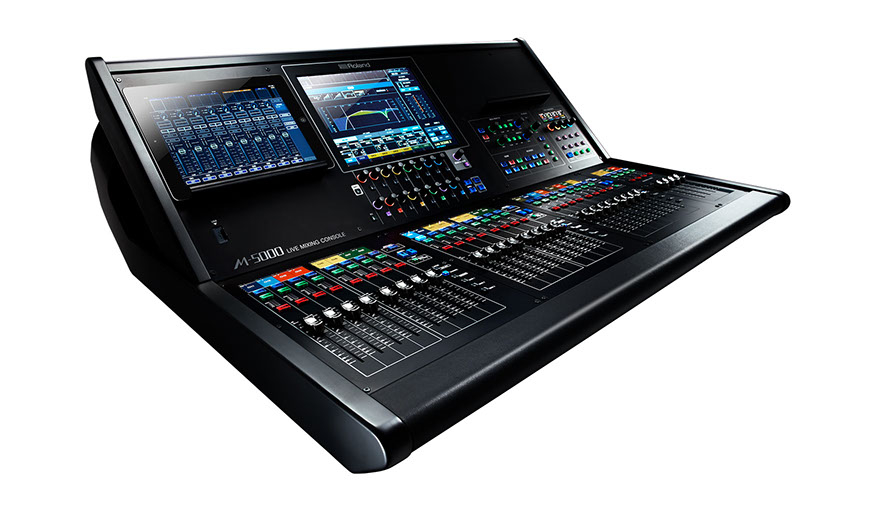

Roland Professional A/V M-5000 Digital Mixer Digital Mixing Console, Up To 128-Channels Image 1
Roland Professional A/V M-5000 Digital Mixer Digital Mixing Console, Up To 128-Channels Image 2
Roland Professional A/V M-5000 Digital Mixer Digital Mixing Console, Up To 128-Channels Image 3
e4r8LFL3eOc
5 Videos
Roland Professional A/V M-5000 Digital Mixer Digital Mixing Console, Up To 128-Channels
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Roland's M-5000 is the first embodiment of Open High Resolution Configurable Architecture (O.H.R.C.A.), a a powerful new concept in audio console technology that's designed to quickly adapt and excel in any mixing application including traditional FOH, monitor mix position, broadcast and theater. Using these core O.H.R.C. philosophies, the Roland M-5000 allows for freely assignable audio paths, support for multiple current and future digital audio protocols and native 96 kHz audio quality throughout the system. The M-5000 delivers liberating user definable workflows that make operation fast, accurate and friendly.

Stunning Design: The M-5000 has an uncluttered and approachable user interface that was designed to make anyone familiar with a specific digital console workflow feel immediately comfortable mixing on it. Gone are awkward graphical recreations of analog controls. The M-5000 graphical interface uses a fresh, digital and decidedly futuristic design that supports the advanced technology of O.H.R.C.A.

Local connections on the rear of the M-5000 include 16x16 XLR analog I/O, 4x4 AES/EBU, a 16x16 ASIO USB audio interface, an iPad direct cable connection and direct USB wireless connection, along with control ports including footswitches, GP I/O, RS-232C and MIDI. All of this connectivity enables simultaneous access to up to 300 inputs and 296 outputs, all at 96kHz and even more at 48kHz.

High Resolution: Pure and transparent 96 kHz audio processing is combined with world-class mic pre’s both local to the console as well as included in Roland’s extensive digital snake lineup to ensure the highest quality of sound from end to end. Input and output processing includes an advanced 4-band PEQ, two assignable dynamics processors, delay adjustable in milliseconds, units of distance or video frame rates as well as two insert point per channel for direct patching or internal or external effect processors. 8 stereo or dual mono multi-effect processors are included and feature classic Roland vintage and famous Boss compact pedal modeling. An incredible 32, 31-band Graphic EQs are also included that can be grouped together and also be changed to an 8-band Parametric EQ.

In the rapidly changing world of live sound, the ability to adapt on the fly to meet the needs of the application is sometimes the difference between a good show and a great show. The power of O.H.R.C.A in the M-5000 combines flexibility, usability and incredible sound quality in an approachable console that's ready to meet the current and future demands of audio professionals regardless of application.

Roland's M-5000 is the first embodiment of Open High Resolution Configurable Architecture (O.H.R.C.A.), a a powerful new concept in audio console technology that's designed to quickly adapt and excel in any mixing application including traditional FOH, monitor mix position, broadcast and theater. Using these core O.H.R.C. philosophies, the Roland M-5000 allows for freely assignable audio paths, support for multiple current and future digital audio protocols and native 96 kHz audio quality throughout the system. The M-5000 delivers liberating user definable workflows that make operation fast, accurate and friendly.

Features:

  • 128 Audio paths assignable as channels, auxes, groups, matrices, etc.
  • Easily adaptable to many applications including front-of-house, monitor position or broadcast
  • Unrestricted patching for up to 300 / 460 inputs and 296 / 456 outputs (96kHz / 48kHz)
  • Support for a wide range of protocols and formats including REAC, Dante, MADI and Waves SoundGrid
  • Full compatibility with the family of Roland Professional Audio snakes, personal mixing and multi-channel playback / recording
  • Outstanding 24-bit, 96kHz quality
  • High-precision 72-bit linear summing circuitry
  • High-end discrete preamps onboard and available in remote snake options
  • 12" touch screen with "touch and turn" operation
  • 28 freely scrollable, isolatable or assignable faders
  • Numerous knobs and buttons, both contextual and assignable to support rapid response
  • Dedicated, freely assignable user section

Specifications:

  • Processing:
    • Mixing Channels - Up to 128 audio paths selectable by:
      • INPUT channel
      • MAINS
      • AUX
      • SUBGROUP
      • MATRIX
      • MIX-MINUS
      • MONITOR
      • COMM
      • OSC
      • PHONES
    • Inputs - Max 300 ports (96kHz) and 460 ports (48kHz, 44.1kHz):
      • Analog: 16
      • AES / EBU: 4 (2 stereo)
      • REAC: 80 (40 x 2 ports)
      • Expansion Slots: 2 (160 @ 96kHz, 320 @ 48kHz, 44.1kHz)
      • FX Return: 16 (1L – 8R)
      • USB Audio Interface: 16
      • iPad Dock Playback: 2 (1 stereo)
      • USB Flash Playback: 2 (1 stereo)
      • Oscillator (OSC): 2
      • Talkback: 2
    • Outputs - Max 296 ports (96kHz) and 456 ports (48kHz, 44.1kHz):
      • Analog: 16
      • AES / EBU: 4 (2 stereo)
      • REAC: 80 (40 x 2 ports) + Backup / Split Port
      • Expansion Slots: 2 (160 @ 96kHz, 320 @ 48kHz, 44.1kHz)
      • FX Send: 16 (1L – 8R)
      • USB Audio Interface: 16
      • iPad Dock Record: 2 (1 stereo)
      • USB Flash Record: 2 (1 stereo)
      • Internal Processing: 72 bits (fixed point, buss-summing)
    • Signal Processing:
      • AD/DA Conversion: 24-bit
      • Sampling Rates: 96kHz, 48kHz, 44.1kHz
      • Console Latency
      • Network Latency: 1.6ms (typ.)
        • * Network Latency: Total system latency of audio signal from S-2416 inputs to outputs via M-5000's REAC ports (A or B).
      • Console Latency: 1.1ms (typ.)
        • * Console Latency: Total system latency of audio signal from console inputs to console outputs.
      • * Sampling rate: 96kHz
      • * Effect: No insert effects
      • * When a REAC Splitter S-4000D or a switching hub is used in-line with REAC cables, the network latency will increase by the amount of processing delay introduced by the splitting device itself. The actual delay is dependent upon the specifications of the splitting device, though the maximum delay amount for a single splitting device should be about 200 microseconds.
    • Connectors:
      • INPUT jacks (1 - 16): XLR-3-31 type (balanced, phantom power)
      • TALKBACK Mic 2 jack: XLR-3-31 type (balanced, phantom power)
      • AES / EBU IN jacks (1/2, 3/4): XLR-3-31 type (balanced)
      • OUTPUT jacks (1 - 16): XLR-3-32 type (balanced)
      • PHONES 1 jack: Stereo 1/4 inch phone type
      • PHONES 2 jack: Stereo miniature phone type
      • AES/EBU OUT jacks (1/2, 3/4): XLR-3-32 type
      • REAC ports (A, B, SPLIT/BACKUP): RJ-45 EtherCon type, SPLIT/BACKUP port supports REAC EMBEDDED POWER (PoE).
      • WORD CLOCK connector (IN, OUT): BNC type
      • RS-232C connector: DB-9 type
      • MIDI connector: OUT/THRU, IN
      • USB port (MEMORY): USB type A
      • USB WLAN ADAPTER port: USB type A
      • USB COMPUTER port: USB type B
      • LAN port: RJ-45 type
      • DOCK CABLE port: 10-pin mini DIN type
      • GP I/O port: DB-25 type
      • FOOT SWITCH jacks (1, 2): 1/4-inch TRS phone type
      • LAMP jacks: XLR-4-31 type x 2, LAMP power: DC +12V / 500mA
      • EXTERNAL POWER DC IN jack: XLR-4-32 type
    • Input/Output Characteristics:
      • Input Impedance:
        • INPUT jacks (1 - 16): 7kΩ
        • TALKBACK Mic 2 jack: 4kΩ (Phantom: ON)
      • Nominal Input Level (Variable, typical):
        • INPUT jacks (1 - 16): -65 to -10dBu (Pad: OFF), -45 to +10dBu (Pad: ON)
        • TALKBACK Mic 2 jack: -50 to -10dBu
      • Non Clip Maximum Input Level (1kHz, typical)
        • INPUT jacks (1 - 16): +8dBu (Pad: OFF), +28dBu (Pad: ON)
        • TALKBACK Mic 2 jack: +8dBu
      • Output Impedance (typical):
        • OUTPUT jacks (1 - 16): 600Ω
        • PHONES jacks (1, 2): 45Ω
      • Recommended Load Impedance:
        • OUTPUT jacks (1 - 16): 10kΩ or greater
        • PHONES jacks (1, 2): 32Ω or greater
      • Minimum Load Impedance - PHONES jacks (1, 2): 16Ω
      • Nominal Output Level (typical) - OUTPUT jacks (1 - 16): +4 dBu (Load impedance: 10kΩ)
      • Non Clip Maximum Output Level (1kHz, typical):
      • OUTPUT jacks (1 - 16): +22dBu (10kΩ load)
      • PHONES jacks (1, 2): 500mW + 500mW (40Ω load)
    • Other:
    • Display:
      • Graphic color LCD touch screen (800 x 600 pixel)
      • 8 graphic color organic light emitting displays (256 x 64 pixel)
      • Fader Bank x 7 + User-Assignable Section x 1
    • Power Consumption: 180W
    • Dimensions (WxDxH): 36-13/16” x 28-9/16” x 13-5/8” (934mm x 725mm x 346mm)
    • Weight: 79lbs. 6oz. (36kgs)
    • Operating Temperature: +41°F to +104°F (+5°C to +40°C)

NOTE:

Images shown above with iPad are for illustrative purposes only, iPad is NOT included with the M-5000. For more in-depth information on the M-5000, refer to the attached Brochure under the Documentation Tab. Please contact your Sales Representative for more information on this and other products.
