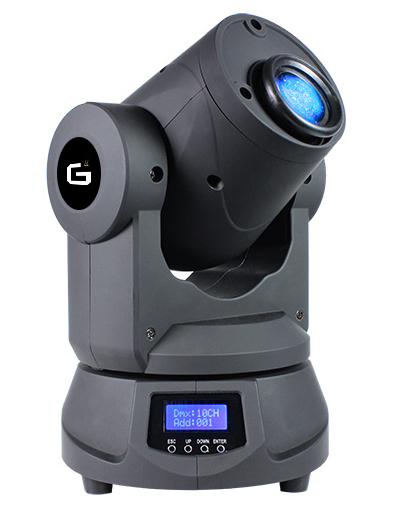

Blizzard Lighting Lil G
40W LED Compact Moving Head Fixture

OUR PART #:  LIL-G

Our Price: $399.99
List Price: $449.99
You save 11%!
Write the first review.
Blizzard Lighting Lil G
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Blizzard Lighting Lil G™ is a powerful mini moving spot head that features a bright 40-watt LED light source with 9° optics that can produce beautiful beams with 9 gobo patterns + open, 7 color + white color wheel, bi-directional color/gobo rotation, rainbow flow effects, & gobo shake. Its fast and precise 540° pan and 220° tilt make it a super aerial performer in a tiny, lightweight package.

Controlling Lil G is easy, using just 11-channels of DMX, or by using its 4-button LCD control panel, you can have complete control of every available feature including pan/tilt with fine 16-bit adjustments & speed control, ultra-smooth 16-bit dimming, strobe (1Hz-10Hz), bi-directional color wheel, bi-directional gobo wheel, auto mode, sound active mode, and fixture reset.

The power input connection found on the back side of Lil G is industry-standard PowerCON® compatible, and DMX 3-pin In/Out jacks + a single clamp mounting bracket are also standard on this fixture.

Blizzard Lighting Lil G Features:

  • Ultra-bright 40-watt white LED source
  • Pan: 540º/ Tilt: 220º (8-16 Bit Resolution)
  • 9° beam angle
  • 7 color + white color wheel with rainbow effect
  • 9 fixed gobos + open w/bi-directional rotation & shake
  • Built-in automated programs via master/slave
  • Built-in sound activated programs via master/slave
  • Ultra-smooth 16-bit dimming system
  • Defeatable pan/tilt correction with trim adjustment
  • Intelligent fan cooling system with temperature auto-detect
  • Easy-to-use 4-button LCD control panel menu
  • 1-10Hz/second strobe effects
  • 3-pin male input and 3-pin female output
  • Compact, high quality housing

Blizzard Lighting Lil G Specifications:

  • Light Source: Ultra-bright 40-watt white LED source
  • Power:
    • AC 110-240VAC, 50/60 Hz
    • Power Consumption: 59W, .79A, pf: .63
  • Control:
    • Protocol: USITT DMX-512
    • DMX Channels: 11
    • Operating Modes: Standalone, Master/Slave, Sound Active
    • Input: 3-pin XLR Male
    • Output: 3-pin XLR Female
    • LCD 4-button control panel
  • Optical:
    • Beam Angle: 9°
    • Luminous Intensity (Lux): 30,810 @ 1m | 1,486 @ 5m
  • Movement Range:
    • Pan: 540°
    • Tilt: 220°
  • Operating Temperature:
    • Max. Operating Temp.: 104° F (40° C) ambient
  • Dimensions: (WxDxH) 7.9" x 7.7" x 12.5" (20.1 x19.6 x 31.7 cm)
  • Weight: 7.7 lbs (3.5 kg)
  • Warranty: 2-year limited warranty, does not cover malfunction caused by damage to LEDs.
