ikan Corporation D12
11.6" 3G-SDI HD Monitor with IPS

OUR PART #:  D12-IKAN

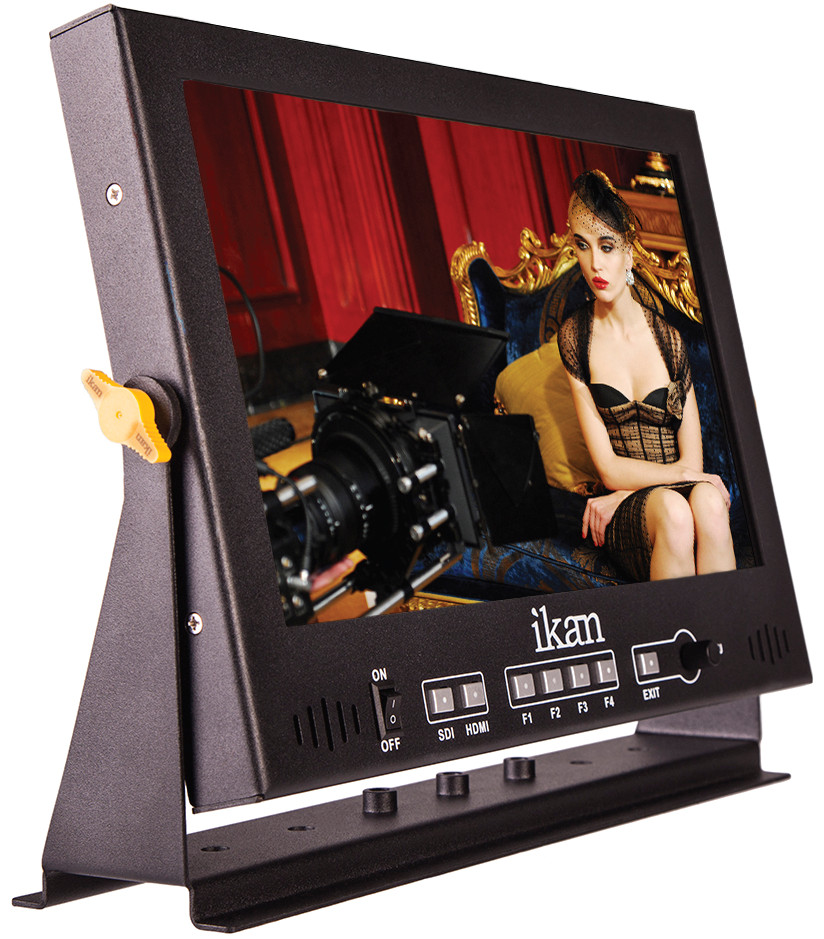

The ikan D12 is part of the D-Series monitors. It features a beautiful full HD 1920 x 1080 IPS panel with great viewing angles and amazing color reproduction.
Learn More
ikan D12 Side Tilted View
ikan D12 Back Panel View
ikan D12 Front Straight-on View

Click a thumbnail to see more images. (5 total)

Our Price: $1,199.00
List Price: $1,299.00
You save 8%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

ikan Corporation D12
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ikan D12 is part of the D-Series monitors. It features a beautiful full HD 1920 x 1080 IPS panel with great viewing angles and amazing color reproduction. The D12 feels at home on your edit suite or in the field with its included adjustable table stand with ¼-20 threaded holes for attachment to light stands. The monitor is constructed of all metal to ensure durability on the most demanding sets. When it comes to I/O the D12 has you covered with its 3G-SDI and HDMI inputs and outputs.

1920 x 1080 IPS Panel
The first thing you notice when you see the D12 is its incredible Full HD IPS Panel. Packing a total of 2,073,600 pixels into its 11.6 inch 1920 x 1080 panel, the D12 gives you a super sharp image. In addition to the sharpness the fact that it’s an IPS panel gives you great color rendition as well as near perfect viewing angles.

Durable Metal Construction
Durability is something the D12 excels at. The all metal frame inspires confidence whenever you take it out on the field. The table stand doubles as a yoke you can attach to most light stands with a ¼-20 stud. Its handle allows you to move it freely wherever it is needed.

Input/Output
The D12 features SDI and HDMI inputs and outputs. Since the monitor is all digital you get the purest and cleanest signal directly to the LCD panel. Removing legacy analog inputs and circuits helps keep your image as clean as possible.

Power
Out in the field, battery power is essential. The D12 features hole patterns for both AB mount and V-mount battery plates (sold separately) to help you power it all day long. The monitor supports 7-24v giving you enough range to keep your monitor safe from most voltage spikes from power sources.

WHAT'S INCLUDED:
AC Power Adapter
D12 Monitor
Table Stand

ikan D12 Features:

  • Resolution of 1920 x 1080
  • IPS LCD Panel for Better Color and Viewing Angles
  • Histogram for Getting the Perfect Exposure
  • 3G-SDI Inputs with Loop Through
  • HDMI Input with Loop Through Built-in Stereo Speaker with Audio I/O, False Color, Peaking, Clip Guides, & DSLR Scaling
  • Tally System (On-Screen)
  • Heavy Duty Metal Construction
  • Supports VESA 100mm
  • Includes Table Mount

ikan D12 Specifications:

Video Inputs

  • 3G-SDI
  • HDMI

Support Resolutions:

  • 3G-SDI:  1920x1080p @ 50, 59.94, 60 Hz
  • HD-SDI:
    • 1280x720p @ 50, 59.94, 60 Hz
    • 1920x1080i @ 50, 59.94, 60 Hz
    • 1920x1080psf @ 23.98, 24, 25, 29.97, 30 Hz
    • 1920x1080p @ 23.97, 24, 25, 29.94, 30 Hz
  • SD-SDI:
    • 720x480i @ 60Hz
    • 720x576i @ 50Hz
  • HDMI:
    • 720x480i & 720x480p @ 59.94, 60 Hz
    • 720x576i & 720x576p @ 50 Hz
    • 1280x720p @ 50, 59.94, 60 Hz
    • 1920x1080i @ 50, 59.94, 60 Hz
    • 1920x1080psf @ 24, 25, 29.97, 30 Hz
    • 1920x1080p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz

General

  • Screen Size: 11.6"
  • Aspect Ratio: 16:9
  • Resolution: 1920 x 1080
  • Viewing angle: H: 178 degree / V: 178 degree
  • Display Technology: IPS
  • Brightness: 350 cd/m2
  • Contrast Ratio: 700:1
  • Response Time: 25ms
  • Pixel Pitch: 0.1335×0.1335 (mm)
  • Inputs: 3G-SDI, HDMI
  • Outputs: 3G-SDI, HDMI
  • Built In Speaker: 2W x 2
  • Power Consumption: 16W
  • Color System: PAL/NTSC/SECAM (Auto-Detected)
  • Input Voltage: DC 7V - 24V
  • Operating Temperature: 32°F ~122° (F0°C ~ 50°C)
  • Build Material: Steel
  • Dimensions: 9.2" x 11.7" x 0.9" (233.6mm x 297mm x 22.8mm)
  • Weight : 5 lbs. (2.2 kg )
  • Shipping Dimensions: 4" x 15.5" x 14.6" (101.6mm x 393.7mm x 370.8mm)
  • Shipping Weight: 7 lbs. (3.1 kg )
  • UPC Code: 847983012343
