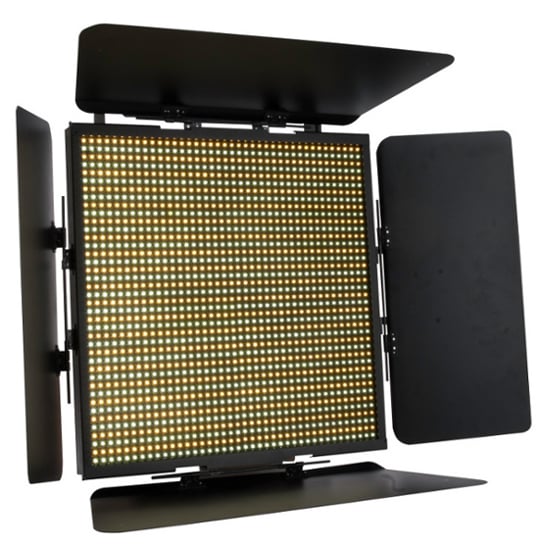

Elation TVL 4000 II CW / WW LED Panel Fixture

The improved TVL4000 II™ from Elation features a low heat, >90CRI, dynamic LED array panel consisting of 800 warm white and 800 cool white LEDs, 30° beam angle, variable manual and DMX controlled color temperature (3,200K - 6,500K). Additional highlights include dimming, adjustable barn doors, magnetic gel/diffuser holder, flicker free operation for broadcast TV and FILM, 3 and 5 pin DMX in/out and power in connections. This unit also includes (4) button (2) dial LCD display control panel, 160W max power consumption, and a multi-voltage universal auto switching power supply (100-240v)

Elation TVL4000 II Features:

• Low Heat, >90CRI Dynamic LED ArrayPanel
• 30° Beam Angle
• Variable Color Temperature Settings (3,200K -6,500K)
• Adjustable Barn Doors
• Magnetic Gel/Diffuser Holder
• Manual and DMX Controlled Color Temp and Dimming
• Flicker Free Operation for Broadcast TV and FILM

Elation TVL4000 II Specifications:

• Source: (800) Warm White + (800) Cool White LEDs
• Photometric Data:
  • 1500 LUX 139 FC @6.6’ (2M) (30° Warm White 3,200K)
  • 1900 LUX 177 FC @6.6’ (2M) (30° Cool White 6,500K)
  • 3400 LUX 316 FC @6.6’ (2M) (30° Full On 4,500-5,000K)
• Effects:
  • Variable Color Temperature (3,200K - 6,500K)
  • Electronic Dimming (0% - 100%)
• Control / Connections:
  • (3) DMX Channel Modes (2/2/3)
  • Manual and DMX Color Temperature and Dimming
  • (4) Button and (2) Dial Control Panel
  • LCD Menu Display
  • 3pin and 5pin DMX In/Out
• Power In
• Size / Weight:
  • Length: 14.8” (376mm)
  • Width: 13.3” (337mm)
  • Vertical Height: 4.4” (113mm)
  • Weight: 15.0 lbs. (6.8 kg)
• Electrical / Thermal:
  • AC 100-240V - 50/60Hz
  • 160W Max Power Consumption
  • TA: 40°C Max Ambient Temperature
• Approvals / Ratings:
  • CE Approved
  • cETLus Approved
  • RoHs Compliant
• Installation:
  • Rigging: Clamp or Stand (Not Included)
  • Working Position: Any (360°)
• Included Items:
  • 180° Dual / Yoke Bracket
  • Power Cable
