Kramer TP-122XL
Receiver Vid & Stereo/Twstd Pr

OUR PART #:  TP-122XL

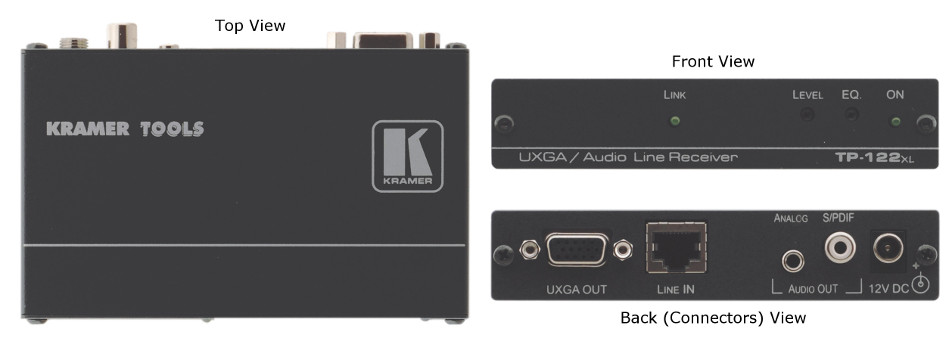

The Kramer TP-122xl is a high-performance twisted pair receiver for computer graphics video and unbalanced stereo audio signals.
Learn More
Our Price: $236.00
List Price: $295.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer TP-122XL
Qty:
In Stock

Similar Products

The Kramer TP-122xl is a high-performance twisted pair receiver for computer graphics video and unbalanced stereo audio signals. It converts the twisted pair input signal to WUXGA video, unbalanced stereo and S/PDIF audio signals.

Applications

  • Presentation and multimedia applications.
  • Long range graphics distribution for schools, hospitals, security, and stores.

Kramer TP-122xl Features:

  • Max. Resolution - WUXGA & 1080p.
  • HDTV Compatible.
  • Interference Protection - Increased level of protection against noise, spikes and interference in adverse environments.
  • System Range - More than 250m (more than 820ft).
  • Level (Gain) and Equalization (Peaking) Adjustment.
  • Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
  • Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 60m(200ft) of each other.
  • Size - Compact TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.

Kramer TP-122xl Specifications:

  • Inputs: 1 twisted pair on an RJ-45 connector.
  • Output: 1 VGA on a 15-pin HD connector; 1unbalanced stereo audio on a 3.5mm mini jack.
  • Resolution: Up to WUXGA and 1080p.
  • Audio Bandwidth (-3dB): 20Hz to 20kHz @-3dB.
  • Audio S/N Ratio: 84dB.
  • Total Gain: Audio: Analog/analog: 0dB; Analog/SPDIF: –12dBFS.
  • Coupling: AC.
  • THD+N: Audio: <0.02%.
  • Power Consumption: 12V DC, 190mA (370mA when powering both devices)
  • Dimensions (WxDxH): 4.76" x2.83" x 0.95" (12.1cm x 7.18cm x 2.42cm)
  • Weight: 0.44lbs (0.2kg) approx.
  • Included Accessories: Power supply
  • Options: RK-3TR 19” rack mount adapter
