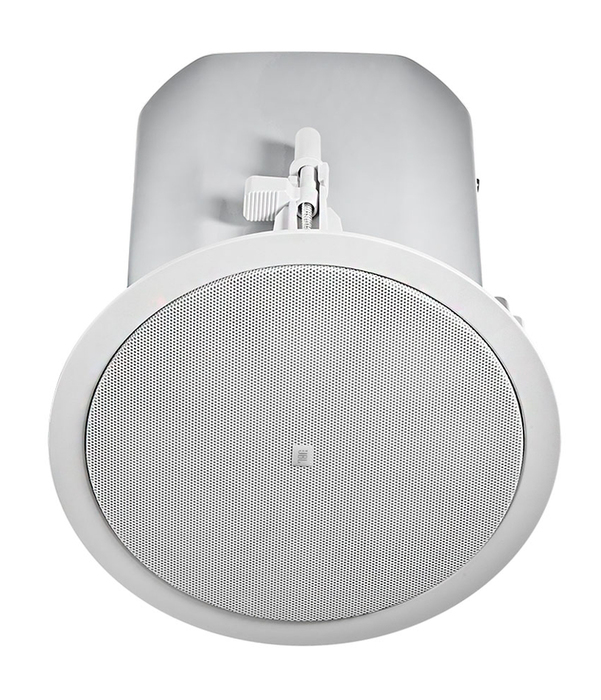

JBL Control 45C/T
5.25" 2-Way Coaxial Ceiling Speaker


Our Price: $192.00
List Price: $240.00
You save 20%!
Write the first review.
JBL Control 45C/T
In Stock

Related Products

The JBL Control 45C/T is a premium inceiling professional loudspeaker designed for applications that can benefit from extremely wide bandwidth and very consistent coverage from a ceiling speaker with a small footprint.

JBL Control 45C/T Features:

  • Extremely consistent 120° broadband pattern control featuring JBL’s exclusive conical Radiation Boundary Integrator® (RBI™) technology
  • Very consistent, full-range coverage of listening area while providing a small ceiling footprint
  • Wide, consistent coverage requires fewer speakers, reducing the cost of the installed system without sacrificing performance
  • Coaxial Design Featuring:
    • 5.25" polypropylene-coated paper cone with butyl rubber surround
    • 0.75" soft-dome tweeter on 210 mm (8.25 in) diameter wave guide
  • Bass extension down to 55 Hz
  • 8 Ohm and 70V/100V operation
  • Integrated backcan for easy “blind-mount” install
  • Packaged with grille and tile rails for easy installation

JBL Control 45C/T Specifications:

  • Frequency Range (-10 dB):  55 Hz – 20 kHz
  • Frequency Response (+/-3 dB):  80 Hz – 17 kHz
  • Power Capacity:  150 Watts Continuous Program Power, 75 Watts Continuous Pink Noise
  • Nominal Sensitivity (2.83V/1m):  88 dB
  • Nominal Coverage Angle:  120° conical coverage
  • Directivity Factor (Q):  5.6
  • Directivity Index (DI):  7.3 dB
  • Rated Maximum SPL:  107 dB @ 1 m (3.3 ft) average, 113 dB peak
  • Rated Impedance:  8 Ohms (in bypass mode)
  • Transformer Taps:  60W, 30W, 15W, (& 7.5W @ 70V)
  • Transformer Insertion Loss:  0.76 dB @ 60W, 0.70 dB @ 30W, 0.61 dB @ 15W, 0.58 dB @ 7.5W
  • LF Driver:  5.25" (130 mm) polypropylene-coated paper cone with butyl rubber surround, 1" (25 mm) copper voice coil, vented fiberglass resin voice coil former.
  • HF Driver:  0.75" (20 mm) soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former.
  • Input Connectors:  Two removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm), Key: 1) + in, 2) - in, A)+ loop thru, B) - loop thru
  • Knockouts:  Two (top, and side)
  • Safety Agency:  Suitable for use in air handling spaces per UL1480 Speakers for Fire Alarm, Emergency and Commercial and Professional Use, complies with UL-2043 Fire Tests for Heat and Visible Smoke Release for Discrete Products, CUL, NFPA-70, NFPA- 90A Installation of Air Conditioning and Ventilation Systems. In accordance with the requirements of IEC60849/EN60849.
  • Dimensions:  9.9" (250 mm) diameter, 9.4" (239 mm) mounting depth
  • Cutout Size:  8.75" (220 mm)
  • Ceiling Thickness Range:  Accommodates tiles / drywall up to 2.75" (70 mm) thick
  • Net Weight:  8.6 lb (3.9 kg)
  • Shipping Weight:  19.0 lb (8.6 kg), pair pack
  • Included Accessories:  C-ring support backing plate, 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles), press-in grille, knockout strain relief, cutout template, paint shield, 2 removable locking multi-pin connectors.
  • Optional Accessories:
    • MTC-26NC New Construction Bracket
    • MTC-26MR Mud Ring Construction Bracket
