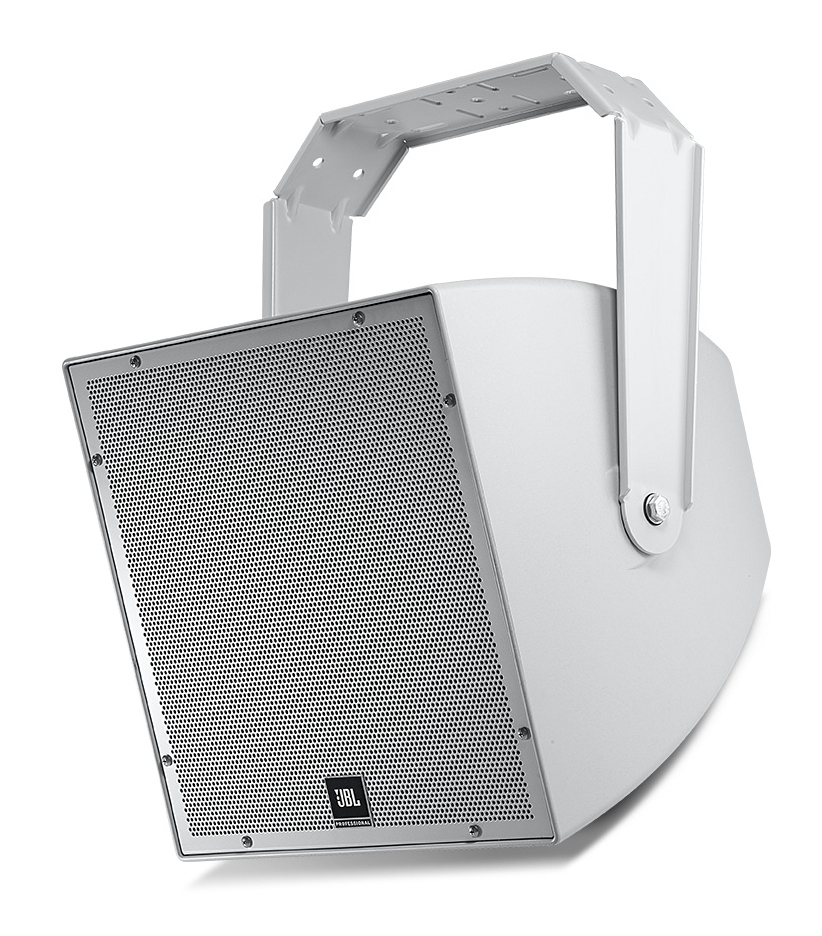

JBL AWC15LF
All-Weather Compact Low-Frequency Speaker with 15" Woofer in Gray

OUR PART #:  AWC15LF

The JBL AWC15LF is a compact highly weather resistant loudspeaker for augmenting the low frequency capability of a sound system.
Learn More
Our Price: $880.00
List Price: $1,100.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL AWC15LF
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The JBL AWC15LF is a compact highly weather resistant loudspeaker for augmenting the low frequency capability of a sound system. AWC15LF is ideal for many applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music systems, swimming pools, and a wide variety of other outdoor and indoor venue types.

JBL AWC15LF Features:

  • Low frequency reinforcement for outdoor applications
  • Highly weather-resistant IP56 rating
  • Component:  15" woofer with Kevlar reinforced cone and 3" voice coil.
  • 500 Watt power handling (average continuous pink noise)
  • Frequency range down to 45 Hz
  • 300 Watt 70V/100V multi-tap transformer or direct 8 Ohm low-impedance.

JBL AWC15LF Specifications:

  • Frequency Range (-10 dB):  45 Hz – 2.2 kHz
  • Frequency Response (+/- 3 dB):  70 Hz – 1.2 kHz
  • Long-Term System Power Rating (IEC):
    • 500 W (2000 W peak), 2 hrs.
    • 300 W (1200 W peak), 100 hrs.
  • Sensitivity (2.83V @ 1m):  94 dB (Ave. 80 Hz – 300 Hz)
  • Maximum SPL:
    • Direct 8 Ohm: 121 dB (peaks of 127 dB)
    • 300 W Tap:  119 dB (peaks of 125 dB)
  • Nominal Impedance:  8 Ohms (in Direct mode)
  • Transformer Taps:
    • 70V:  300W, 150W, 75W, 38W
    • 100V:  300W, 150W, 75W
  • Low Frequency Driver:  15" (380mm), Kevlar-reinforced cone, with weather treatment, 3" (75mm) voice coil, long throw.
  • Enclosure:  ABS with Glass enclosure, heavily braced
  • Attachment:  Two M10 (course-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
  • Grille:  Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.
  • Input Connection:  CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside openlug (#6 or #8) plus bare wire up to 2.5 sq. mm (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
  • Environmental:  IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).
  • Dimensions:
    • 19.1" x 19.1" x 18.8" (486mm x 486mm x 479mm), cabinet
    • 19.9" (507mm) depth with gland nut
    • 21.5" (546mm) including bracket extending to back
  • Included Accessories:  U-bracket, matches loudspeaker color (gray or black), zinc-rich extra-thick powder coated, steel.
