Datavideo Corporation ITC100-HP1K
ITC-100 Intercom System Combo Product Package for Four Users

OUR PART #:  ITC100HP1K

The ITC100-HP1K from Datavideo is one of their Product Combo Packages - in this case it includes a ITC-100 Intercom base station with 20m (65ft) Cables, upgraded headsets (HP-1)...
Learn More
Datavideo ITC100-HP1K Beltpack
Datavideo ITC100HP1K - Angled View HP-1 Headset
Datavideo ITC100HP1K Base Station Rear Panel

Click a thumbnail to see more images. (5 total)

Our Price: $1,412.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Datavideo Corporation ITC100-HP1K
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

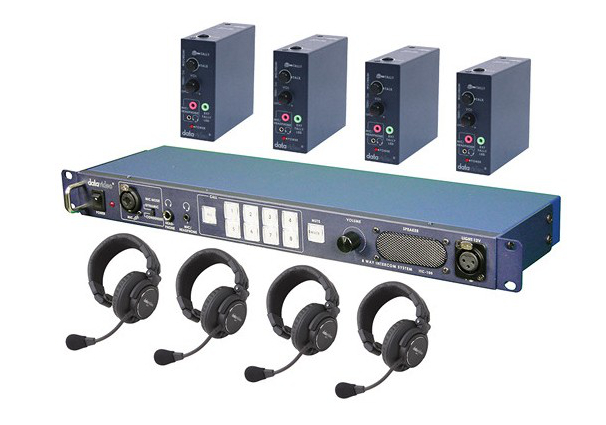

The ITC100-HP1K from Datavideo is one of their Product Combo Packages - in this case it includes a ITC-100 Intercom base station with 20m (65ft) Cables, upgraded headsets (HP-1), ITC-100SL belt packs, and tally lights for 4 users. This product package is intended to help get you up and running in a timely manner.

The ITC-100 is a practical base station wired intercom with included tally lights that can use low cost headsets or high quality professional units. Users are connected to the base station via belt packs and 20 meter (65 ft.) 5-pin XLR audio cables that may be extended up to 200 meters/650 feet. This portion of the package comes with a gooseneck microphone and LED light.

The upgraded HP-1 headsets are single-ear headsets that are compatible with the base station unit and feature soft ear pads for comfortable extended use, a noise cancelling microphone along with a strong resistance to feedback.

Datavideo ITC-100 Base Station Features:

  • Industry Standard 19" 1U rack design, for easy integration
  • Additional external earphone and microphone interface
  • Bi-color tally light indicator
  • Selectable channel talk, broadcast to all or mute.
  • Enables communication between the camera crew
  • Communication distance up to 200 meters
  • Supplied complete with Gooseneck Microphone and Light

ITC-100SL Belt Pack Key Features:

  • Wires Included
    ITC-100SL includes one 1.8-meter tally light cable and one 20-meter XLR-to-XLR intercom cable.
  • Bi-Color Tally LED
    The included TD-1 Tally Light functions with two colors — red for “live,” and amber for “up next.”
  • Half-Duplex Design
    To eliminate the environmental noise

HP-1 Single-Ear Headset Key Features:

  • Reference Quality, Closed-Ear Monitor
    HP-1 “ear muff” is closed to block distracting outside noise.
  • Soft, Circumaural Ear Pad(s)
    The ear pads are soft and comfortable for extended use.
  • Noise Cancelling Microphone
    HP Headsets improve communication by blocking outside noise from sneaking into the microphone.
  • High Gain Before Feedback
    The headsets’ speakers have a strong resistance to “clipping” when monitoring loud noises.

Datavideo ITC100-HP1K Specifications:

  • ITC-100 Base Station:
    • Power: 12V 1.0A DC operation 110/220
    • Size: 1 RU high chassis
    • Interface: External headset and microphone
    • Base Station Audio Level: -15dBm
    • Base Station Impedance: 51K ohm
  • Dimensions:
    • Length: 5 in. / 127 mm
    • Width: 19 in. / 483 mm
    • Height: 1.5 in. / 38 mm
    • Weight: 4 lbs. / 1.81 kg
  • HP-1 Headset:
    • Connection: x1 1/8" Audio/Microphone Connector
  • Headphone Specifications:
    • Transducer Principle: Dynamic
    • Operating Principle: Closed
    • Transmission Range: 10Hz-22KHz
    • Nominal Impedance: 24 Ohms
    • Nominal SPL at 1KHz: 98dB
    • T.H.D.: <0.2% (at 1KHz 100mW)
    • Nominal Power Rating: 100mW
  • Headset Microphone Specifications:
    • Transducer Principle: Condenser
    • Transmission Range: 20-16KHz
    • Polar Pattern: Omni-Directional
    • Nominal Impedance: 2.2K ohms
    • Sensitivity: -64dB
  • Beltpack and Tally Lights:
    • Input: 5-pin XLR Connector
    • Mic/Headset Socket: 3.5mm Stereo Combination Socket (Headset+Mic)
    • Headset Impedance: 8~600 ohms 100mW (min)
    • Mic Level: -67dB
    • Frequency Response: 550-3.6KHz, < +/-3dB
    • THD: Less Than 3 Percent
    • S/N: Greater Than 50dB
    • Tally Out Socket: 3.5mm Jack Socket to TD-1 Tally Light
    • Tally LED: Red (live), Amber (Up Next)
    • Operating Range: Up to 200-meters between base station and belt pack
    • Belt Pack Dimensions: 114mm x 97mm x 35mm / 4.49 x 3.82 x 1.38 in.
    • Belt Pack Weight: 348g / 12.28 oz.

NOTE: All features and specifications subject to change without notice.
