Galaxy Audio AS-WSS11T-L
AC Powered Wireless Speaker Transmission System, D-Band 655-679 MHz

OUR PART #:

The Galaxy Audio AS-WSS11T-L will transmit an audio signal from one location to another wirelessly.
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

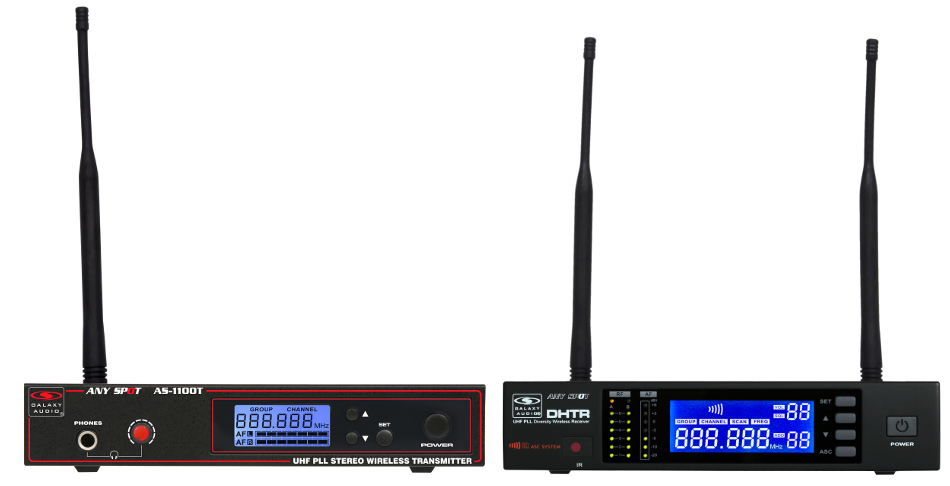

The Galaxy Audio AS-WSS11T-L will transmit an audio signal from one location to another wirelessly. Whether you need to get audio outside or to an overflow room, the AS-WSS11T can help. Both the transmitter (AS-1100T) and receiver (DHTR) are rack mountable, include rack ears, and are AC operated. This system offers 120 selectable channels, and operates on the L Wireless Band, which ranges from 655 - 679 MHz.

Galaxy Audio AS-WSS11T-L Features:

  • Send a wireless signal to any powered speaker
  • 120 Selectable Channels
  • Rack Mountable transmitter & receiver
  • 300 ft range
  • A/C operated
  • Rack Ears Included
  • XLR & 1/4" Inputs and Outputs
  • Transmit audio to a Cry Room, Outside Speakers, or Across a Sports Field.

Galaxy Audio AS-WSS11T-L Specifications:

  • AS-1100T Transmitter:
    • Max Audio input level: +6dBV
    • Gain Adjustment Range: 40dB
    • Input Impedance: 100K?
    • Dimensions: 1.5" x 8.3" x 3.78" (38mm H x 212mm W x 96mm D)
    • Weight: 21oz. (605 g)
    • Power Requirements: 12-18 V dc at 300mA supplied by external power supply
    • XLR input: Impedance balanced
      • Pin 1: Ground (cable shield)
      • Pin 2: Audio
      • Pin 3: No Audio
  • DHTR Receiver:
    • Audio Output Level (+/- 30 kHz deviation, 1 kHz tone):  XLR connector (into 600 Ohms load) -12 dBV, 1/4" connector (into 3 kOhms)
    • Output Impedance:
      • XLR Connector:  200 Ohms
      • 1/4" Connector:  1 kOhms
    • XLR Output:  Impedance balanced
      • Pin 1:  Ground (cable shield)
      • Pin 2:  Audio
      • Pin 3:  No Audio
    • Sensitivity:  -93dBm for 30dB SINAD, typical
    • Image Rejection:  > 90dB
    • Dimensions (HxWxD):  1.7" x 8.3" x 6.3" (44mm x 212mm x 160mm)
    • Weight:  31.75oz (900 g)
    • Power Requirements:  12-18 V dc at 400mA, supplied by external power supply.
