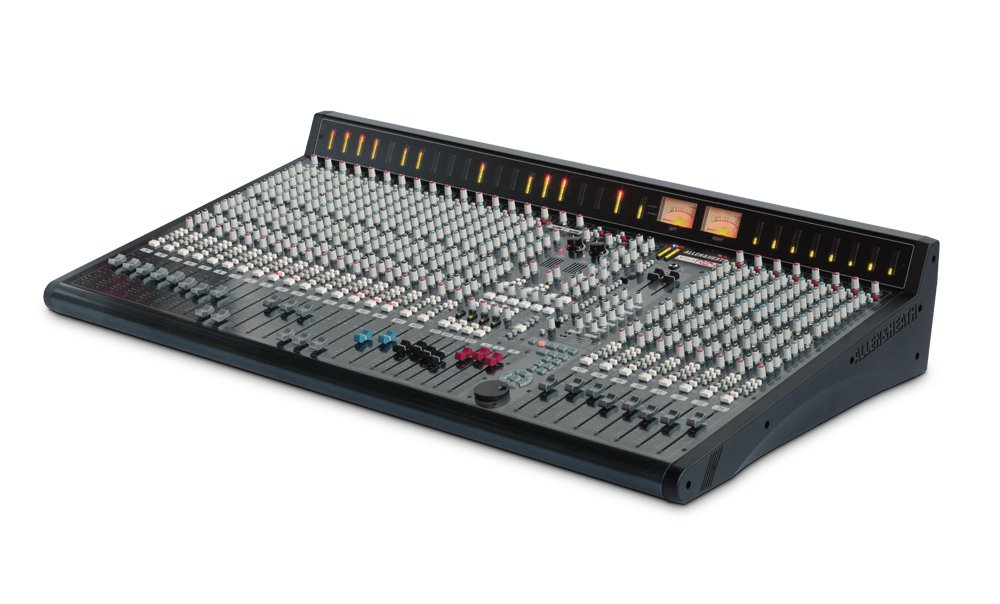

Allen & Heath GS2-R24
32 Channel Recording Console with 24 Microphone Inputs

OUR PART #:  GS2-R24

Our Price: $8,999.00
List Price: $10,999.00
Call for Special Sale Price!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Allen & Heath GS2-R24
Qty:
In Stock
Similar Products

The Allen & Heath GS-R24 combines refined analog quality with a choice of analog or Firewire / ADAT interface modules and MIDI control for your chosen Digital Audio Workstation or recording device. Designed to sit at the heart of a busy project studio, GS-R24 has the flexibility and audio excellence to enhance the impact of your recordings, whatever your workflow.

The original concept for the GS-R24 was for a larger version of the ZED-R16 with similar routing philosophy, high quality pre-amps and EQ. Interaction with recording musicians and engineers has resulted in many new features being added; a full width meterbridge for example, optional interface cards and more flexibility in workflow setup. The GS-R24 is the culmination of many things: exceptional analog design, super-flexible usability, control and integration with digital workstations, and with an easily removed interface card it can be future-proofed against fast-moving technology, helping it to gain the status of a true modern classic.

Allen & Heath GS-R24 Features:

  • 24 Mic/Line Input Preamplifiers
  • 24 Channels of 4 Band EQ with Fully Parametric Mids
  • Choice of Analog or Firewire / ADAT Interface Modules*
  • 2 Dual Stereo Inputs with EQ
  • 2 Additional Valve Inputs
  • 6 Auxes
  • 4 Subgroups
  • Main Stereo + Mono bus
  • PFL, AFL + Solo in Place
  • MIDI Control
  • 5.1 Surround Monitoring
  • Integral Meter Bridge
  • RPS15 External Linear Power Supply*
  • *NOTEInterface modules and the RPS15 power supply are  sold separately.

Allen & Heath GS-R24 Specifications:

  • Input Operating Levels:
    • Mono channel (XLR) Input -6 to –60dBu for nominal (+14dBu in max)
    • Mono channel Line Input (Jack socket) +14 to –40dBu (+34dBu maximum)
    • Insert point (TRS Jack socket) 0dBu nominal +21dBu maximum
    • Stereo Input (Jack sockets) 0dBu nominal (control =Off to +10dB)
    • Stereo input (phono sockets) 0dBu nominal (control =Off to +15dB)
    • Valve channel (XLR) -10 to –60dBu for nominal (+10dBu max)
    • Valve channel (Line) +10 to –40dBu for nominal (+30dBu maximum)
    • Valve channel (Inst gain boosted) -16 to –66dBu for nominal (122mV to 0.388mV rms)
    • 2 Track Input (phono or TRS jack sockets) 0dBu nominal +21dBu maximum
  • Outputs Operating Levels:
    • Main (2 Track 1) L-R (XLR) & Groups 1-4 (TRS Jack) +4dBu nominal. +27dBu maximum
    • L-R Insert & Group Inserts (TRS Jack socket) 0dBu nominal +21dBu maximum
    • 2 Track 2 Outputs (Jack sockets) 0dBu nominal. +21dBu maximum
    • All other analogue outputs 0 nominal +21dBu maximum
  • Headroom:
    • Analogue headroom from nominal (0Vu) 21dB
    • Analogue headroom at Mix summing amplifier 23dB
  • Frequency Response:
    • Mic in to Mix L/R Out, 10dB gain +/-1dB 10Hz to 130kHz
    • Line in to Mix L/R out 0dB gain +/-0.5dB 20Hz to 20kHz
    • Stereo in to Mix L/R out +/-0.5dB 20Hz to 40kHz
    • Mic in to Mix L/R Out, 30dB gain +/-0.5dB 20Hz to 80kHz
    • Mic in to Mix L/R Out, 50dB gain +/-1dB 20Hz to 80kHz
  • THD+N:
    • Mic in to Mix L/R Out, 10dB gain 1kHz +10dBu out (DC to 22kHz) 0.0015%
    • Mic in to Mix L/R Out, 30dB gain 1kHz (DC to 22kHz) 0.0025%
    • Line in to Mix L/R out 0dB gain +10dBu 1kHz (DC to 22kHz) 0.002%
    • Stereo in to Mix L/R out 0dB gain +10dBu 1kHz (DC to 22kHz) 0.002%
    • Mic in to Mix L/R Out, 50dB gain 1kHz (DC to 22kHz) 0.0035%
    • Mic in to Mix L/R Out, 30dB gain 10kHz (DC to 30kHz) 0.0025%
  • Noise:
    • Mono Ch Mic Pre EIN @ 60dB gain 150R input Z 22-22kHz-128.5dBu
    • Mono Ch Mic Pre EIN @ 30dB gain 150R input Z 22-22kHz-124dBu
    • Mix Noise, Aux 1-4 out, sends minimum, masters atunity 22-22kHz -84dBu
    • Mix Noise, Groups 1-4, 24 channels routed, Ref +4dBu,22-22kHz -89dB (-85dBu)
    • Mix Noise, LR out, 0 channels routed, Ref +4dBu,22-22kHz -97dB (-93dBu)
    • Mix Noise, LR out, 12 channels routed, Ref +4dBu,22-22kHz -90dB (-86dBu)
    • Mix Noise, LR out, 24 channels routed, Ref +4dBu, 22-22kHz -89dB (-85dBu)
  • Power Consumption:  170W
  • Weight:  66 lbs
