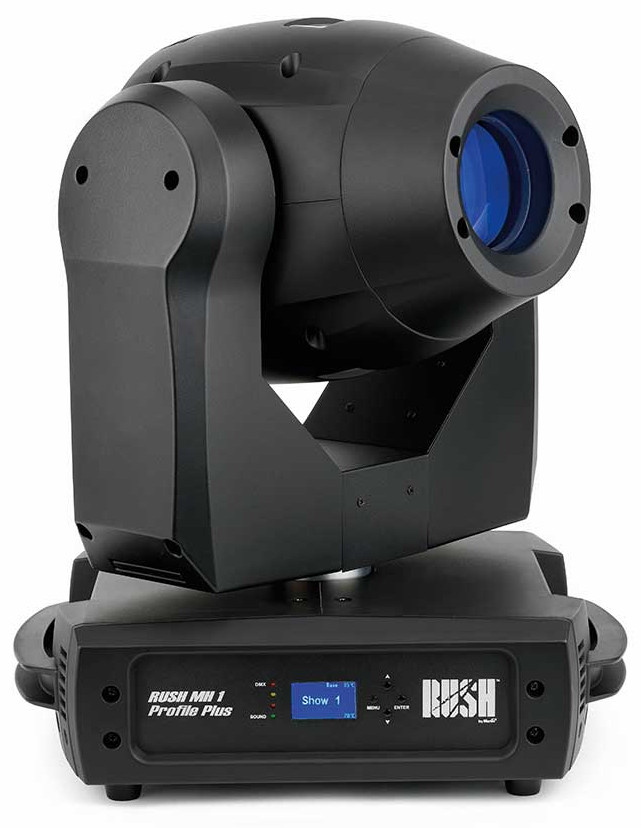

Martin Professional RUSH MH 1 Profile Plus
Moving Head LED Light Fixture

OUR PART #:  RUSH-MH1-PROFILE+

The Martin Professional RUSH MH 1 Profile Plus super bright LED profile moving head is even brighter than its predecessor RUSH MH 1 Profile, with  50% more output.
Learn More
Our Price: $1,989.00
List Price: $2,486.25
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Martin Professional RUSH MH 1 Profile Plus
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Martin Professional RUSH MH 1 Profile Plus super bright LED profile moving head is even brighter than its predecessor RUSH MH 1 Profile, with  50% more output. It features efficient optics with an increased beam angle from 13 degrees to 16 degrees punches out a variety of effects and colors from two gobo wheels and two color wheels. For added versatility and effect, it also houses an electronic dimmer and strobe, iris and 3-facet prism, and an improved cooling system for quieter operation.

Martin Professional RUSH MH 1 Profile Plus Features:

  • LED profile moving head
  • Super bright - efficient optics
  • Rotating gobo wheel
  • Fixed gobo wheel
  • 2 x color wheels
  • Electronic dimming and strobe
  • Iris and 3-facet prism
  • 3 & 5 pin XLR

Martin Professional RUSH MH 1 Profile Plus Specifications:

Physical

  • Length:  418 mm (16.5 in.) Width:  314 mm (12.4 in.) Height:  552 mm (21.7 in.)
  • Weight:  18 kg (39.7 lbs.)

Dynamic Effects

  • Color wheel 1:  7 colors plus open, rotation with variable direction and speed
  • Color wheel 2:  7 colors (incl. 1 x UV, 2 x CTC) plus open, rotation with variable direction and speed
  • Rotating gobo wheel:  7 gobos plus open, wheel rotation, gobo indexing, rotation and shake Static gobo wheel:  8 gobos plus open, wheel rotation and shake
  • Electronic 'shutter' effect:  Strobe effect, pulse effects, instant open and blackout
  • Prism:  Indexing and rotation with variable direction and speed
  • Iris: Motorized
  • Focus: Motorized
  • Electronic dimming:  0 - 100%, four dimming curve options
  • Pan: 540°
  • Tilt: 270°
  • Pan and tilt speed: Adjustable via onboard control panel and DMX

Control and Programming

  • Control options: stand-alone  DMX channels: 17
  • Stand-alone trigger options:  Music trig, auto trig
  • Stand-alone sequences:  4 pre-programmed shows
  • Stand-alone memory:  20 scenes
  • Music trig sensitivity:  Adjustable
  • Setting and addressing:  Control panel with backlit graphic display
  • DMX compliance:  USITT DMX512/1990

Optics

  • Light source: 180 W LED engine
  • Minimum LED lifetime: 20 000 hours (to >70% luminous output)*
    *Figure obtained under manufacturer´s test conditions

Photometric Data

  • Efficacy:  25.5 lumens per watt
  • Cut-off angle: 16°
  • Total output: 7100 lm

Construction

  • Color: Black
  • Housing: High-impact flame-retardant thermoplastic
  • Protection rating: IP20

Installation

  • Mounting points: Two quarter-turn brackets for rigging clamps
  • Location: Indoor use only, must be fastened to surface or structure
  • Orientation: Any

Connections

  • AC power in/thru: Neutrik PowerCon
  • DMX data in/out: 3-pin and 5-pin locking XLR

Electrical

  • AC power: 100-240 V nominal, 50/60 Hz
  • Typical total power consumption: 280 W
  • Power consumption figures are typical, not maximum. Allow for +/-10% variation. :

Thermal

  • Cooling: Forced air, temperature controlled
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): 0° C (32° F)
  • Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 1010 BTU/hr.

Approvals

  • EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
  • EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
  • US safety: UL 1573
  • US EMC: FCC Part 15 Class A
  • Australia/NZ: C-TICK N4241

 Included Items

  • Power cable: 1.5 m (4.9 ft.), without mains plug
  • Two quarter-turn brackets
