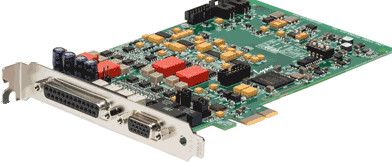

Lynx Studio Technology E22
2x2x2 AD/DA PCI Express Interface Card

OUR PART #:  E22

The Lynx Studio Technology E22 PCI Express card is designed to satisfy the most demanding professional recording and broadcast studio requirements.
Learn More
Our Price: $699.00
List Price: $795.00
You save 12%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lynx Studio Technology E22
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Lynx Studio Technology E22 PCI Express card is designed to satisfy the most demanding professional recording and broadcast studio requirements. Built upon the legacy of the industry-leading LynxONE and LynxTWO cards, the E series takes a leap forward to offer the highest performance A/D and D/A conversion system ever incorporated into a PCI Express card. In fact the E22's performance even eclipses that of the Lynx Aurora converters. Since 1998, Lynx has provided high-reliability add-in cards engineered for 24/7 operation. The E series improves upon this tradition with upgraded enhancements for I/O protection and shielding of computer noise and their associated power supplies.

The E22 is roughly the equivalent of the Lynx L22 in a PCI Express format.

The E22 card utilizes sophisticated design methodologies to achieve high performance levels. Components are meticulously chosen to support low noise and distortion. Circuit topologies are compact and cancel external noise pickup. Capacitors with solid dielectrics provide high reliability and long life. Considerable effort is applied to PCB layout which focuses on component placement and routing of traces, as well as copious use of copper planes for shielding and power distribution.

The power available from the PCI Express bus offers a particular challenge due to the lack of a negative supply rail which is required to power analog amplifier stages. The E series utilizes a unique scheme to generate supply rails that are extremely low noise while being very tolerant of poorly designed computer power supplies.

The use of field-programmable-gate-arrays (FPGA) is another core technology pioneered for use in audio devices by Lynx. The E series uses the latest devices with a wealth of resources for parallel processing in Lynx's 16 X 8 mixer and V2 DMA engine which maximizes throughput on the PCIe bus while minimizing CPU workload. As always, FPGA’s allow for field-upgradeability to add features in the future.

The E22 is ideal for applications such as capturing and archiving historic and classic material with extreme accuracy and transparency, broadcast applications requiring 24/7 flawless operation, audio measurement, audio production or  medical, military and industrial applications that require full audio spectrum capabilities and extreme reliability.

Lynx Studio Technology E22 Features:

  • Two channels of A/D and D/A conversion
  • Two channels of AES3 or S/PDIF I/O
  • Extremely low-jitter SynchroLock sample clock generator
  • Fixed or adjustable trim level on all analog I/O's, relay controlled
  • Automatic output muting on power on/off (de-thump)
  • FPGA-based on-board hardware mixing
  • V2 DMA Engine promotes extremely low-latency operation
  • Drivers for Macintosh OS X, Windows 7 & 8
  • Thunderbolt Compatible
  • Lynx Master application
  • RoHS compliant
  • Designed and built in the USA
Digital I/O and Sync Cable for Lynx L22/E22
Lynx Studio Technology CBL-L22SYNC Digital I/O and Sync Cable for Lynx L22/E22
The CBL-L22SYNC from Lynx Studio Technology is a digital I/O and sync cable for the Lynx L22 and Lynx E22 PCI express cards. The cable features two XLR digital and two BNC word clock I/O one end with a VGA (HD15) connector on the other end.
28.34 30.00 6

In Stock
L22 Audio Cable, 2 XLRM/2 XLRF to DB25
Lynx Studio Technology CBL-L22Audio L22 Audio Cable, 2 XLRM/2 XLRF to DB25
The CBL-L22Audio from Lynx Studio Technology is a DB25 to XLR (2 XLRM/2 XLRF) audio cable for the Lynx L22 and E22 PCI Express cards.
40.00
