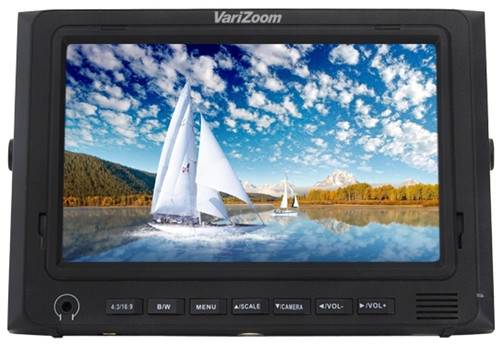

Varizoom VZ-M7
7" HDMI LCD Monitor


Our Price: $276.52
List Price: $279.00
In Stock

The VariZoom VZ-M7 HDMI monitor provides sharp, accurate images for improved framing and focus assist on any camera equipped with an HDMI output. Utilizing top-quality Grade A+ LCD panels and image processing, the M7 offers picture quality and a feature set normally found only on more expensive monitors. Included with the basic M7 kit: monitor, 2 HDMI cables (standard-standard & standard-mini), and AC power adapter. A number of optional accessories designed specifically for the M7 are available-contact your Sales Professional for more information.

VariZoom VZ-M7 Includes:

  • Monitor
  • Power supply
  • 2 HDMI cables (standard-standard & standard-mini)

VariZoom VZ-M7 Features:

  • Accepts all HD signals up to 1080p
  • HDMI In / Out (loop through)
  • DSLR Scaling to allow full-screen viewing of image from cameras such as Canon 5D (sold separately)
  • Auto Aspect Ratio Detection
  • Monochrome (B&W) mode
  • Image Flip for inverted mounting
  • Safety Area markers (5 levels), Centerline Marker, 4:3 area markers
  • Underscan and Overscan modes
  • Color Temperature Presets (D65 and D93 standards), or user-defined through RGB settings
  • Brightness, Contrast, Saturation, Sharpness adjustments
  • Customizable Menu Options for menu duration, position, text color, and language
  • Speaker and Headphone jack for audio monitoring
  • Pixel-to-Pixel Zoom and Peaking for Focus Assist with OPTIONAL VZMZB Remote

VariZoom VZ-M7 Specifications:

  • Screen Size:  7” diagonal
  • HDCP Compliant:  YES
  • Native Resolution:  1024 x 600
  • Brightness:  250 cd/m2
  • Contrast:  700:1
  • Backlight Type:  LED
  • Video Formats:  1080 –24p/24psf/25p/30p/50i/60i/50p/60p; 720 - 50p/60p; 480i; 480p; 576i; 576p
  • Response Time:  10ms
  • Viewing Angle:  L75° / R75° / U70° / D75°
  • Input Voltage:  12VDC nominal (6.5 – 36VDC max. range)
  • Mount Type:  ¼”-20 female (4x – top, bottom, left, right)
  • Inputs/Outputs:
    • HDMI (in)
    • HDMI (out)
    • Headphone 3.5mm (out)
    • “Zoom” (in) 3.5mm
    • XLR power (4+, 1-)
  • Size:  8” x 5.4” x 1.5”
  • Weight:  1.25 lbs.
  • Power consumption:  8W
  • Warranty:  1 year (does not cover screen damage)
