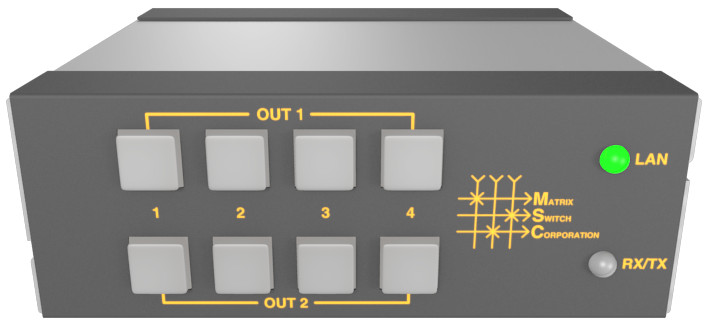

Matrix Switch Corporation MSC-HD42L
3G/HD/SD-SDI 4x2 Mini Router

OUR PART #:  MSC-HD42L

Matrix Switch Corporation's MSC-HD42L is a Mini SDI video routing switcher that features 4 inputs with 2 outputs.
Learn More
Our Price: $718.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Matrix Switch Corporation MSC-HD42L
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Matrix Switch Corporation's MSC-HD42L is a Mini SDI video routing switcher that features 4 inputs with 2 outputs. It's ideal for applications that do not need rack mounting, need a compact size, and when low cost is important.

This small router doesn't skimp on either technical performance or control features. It employs the same high reliability components used in our other routers.

The MSC-HD42L offers flexible and user friendly control, including a built-in Javascript-enabled web page interface, and simple, yet powerful text based control protocol which can be sent via TCP/IP or RS-232 Serial Port.

Matrix Switch Corporation MSC-HD42L Features:

  • Re-clocks SDI Video SD (270 MBPS) / HD (1.484 GBPS) / 3G (2.97 GBPS)
  • Auto by pass any rate from 20MBPS to 3GBPS
  • All versions pass SDI embedded audio
  • Dual BNCs per output
  • Compact design. 5 inches x 5 inches x 1.75 inches
  • Less than 2 pounds including the power supply
  • Low power consumption. less than 5VA
  • Store and recall up to 10 non-volatile presets
  • Includes local control panel
  • Vertical interval switching
  • Control via simple text based protocol over TCP/IP via Ethernet port, RS-232 or web page interface
    (see Protocol Information Document under the "Documentation" tab, or call your Sales Professional for more information)
  • Modern Javascript web page interface
  • System software updates using Ethernet port

Matrix Switch Corporation MSC-HD42L Technical Specifications:

  • Input impedance:  75 ohms ±1%
  • Input return loss:  > -15 dB at 1.5GBPS, > -12 dB at 2.97GBPS
  • Input level:  800mV P-P ±20%
  • Output impedance:  75 ohms ±1%
  • Output return loss:  > -15 dB at 1.5GBPS, > -12 dB at 2.97GBPS
  • Output level:  800mV P-P ±5%
  • Cable equalization:  Belden type 1694A cable: 350m @ SD (143 - 540MBPS), 175m @ HD (1.5GBPS), 100m @ 3G (2.97GBPS)
  • Jitter:  < 0.2UI P-P
  • Embedded audio:  Clean pass through
