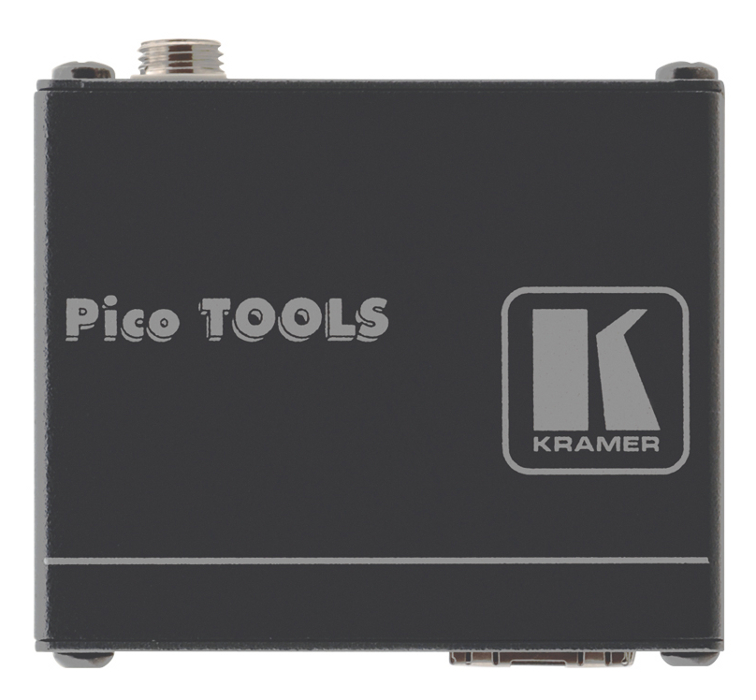

Kramer PT-580T
HDMI over Twisted Pair HDBaseT Transmitter

OUR PART #:  PT-580T

The PT-580T from Kramer Electronics is a 4K resolution, HDBaseT twisted pair transmitter for HDMI signals.
Learn More
Our Price: $180.00
List Price: $225.00
You save 20%!
Write the first review.
Kramer PT-580T
In Stock

Related Products

The PT-580T from Kramer Electronics is a 4K resolution, HDBaseT twisted pair transmitter for HDMI signals. The unit inputs an HDMI signal that it converts to a twisted pair signal. An HDBaseT receiver (for example the TP-580R or WP-580R) converts the twisted pair signal back into an HDMI signal and together they form a transmitter receiver pair.


  • Projection systems in conference rooms, boardrooms,auditoriums, hotels and churches, production studios
  • Rental and staging

Kramer PT-580T Features:

  • Max. Data Rate - 10.2Gbps (3.4Gbps per graphicchannel), supporting 4K resolution
  • HDTV Compatible
  • HDCP Compliant
  • Certified HDBaseT Technology
  • HDMI Support - Deep color, x.v.Color™, lip sync, HDMIuncompressed audio channels, Dolby TrueHD, DTS-HD, CEC
  • 2K x 4K Support
  • 3D Pass-Through
  • EDID Pass-Through - Passes EDID signals from thesource to the display
  • Range - Up to 70m (230ft) when using BC-HDKat6a cables
  • Indicator - Power LED
  • Size - Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rackadapter

Kramer PT-580T Specifications:

  • Input: 1 HDMI connector
  • Output: 1 RJ-45 connector
  • Max. Data Rate: 10.2Gbps (3.4Gbps bandwidth pergraphic channel)
  • Compliance With HDMI Standard: Supports HDMI and HDCP
  • Operating Temperature: 32° to 104°F (0° to +40°C)
  • Storage Temperature: -40° to 158°F (-40° to +70°C)
  • Humidity: 10% to 90%, RHL non-condensing
  • Power Consumption: 5V DC, 575mA
  • Dimensions (W, D, H): 2.4" x 2.1" x 1" (6.2 x 5.2 x2.4cm)
  • Weight: 0.3lbs (0.14kg)
  • Included Accessories: 5V DC power supply
  • Options: 19” RK-4PT rack adapter; Kramer BC-HDKat6a cable
