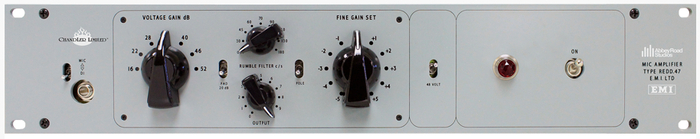

Chandler REDD.47 Single-Channel Microphone Tube Preamplifier

Chandler Limited’s REDD.47 microphone preamplifier is a re-creation of the original valve line amplifiers used in Abbey Road Studios’ heralded and rare EMI REDD.51 recording consoles circa 1959-1968.

Designed as a central component to the EMI REDD.51 recording console, the original REDD.47 line amplifier was used to amplify virtually every stage of the audio path (mic inputs, line inputs, echo sends and monitors).

The REDD.47 lent its unmistakably punchy, aggressive character to music recorded at Abbey Road Studios between 1964 and 1968, including many tracks by The Beatles.

The Chandler Limited REDD.47 pre-amp offers many additional benefits to the original design including increased gain, allowing a range of tonal options from pristine clean sound to classic rich, saturated tone with up to 2% harmonic distortion before clipping. The Chandler Limited REDD.47 pre-amp easily reproduces the distortions heard on The Beatles’ ‘Revolution.’

Chandler Limited’s REDD.47 tube microphone pre-amplifier delivers the legendary sound of Abbey Road Studios’ ‘Holy Grail’ preamp, with extra features to meet today’s recording studio standards.

Chandler Limited REDD.47 Specifications:

• Channels: Mono
• Circuit: Tube (EF86, E88CC)
• Connections:
  • Inputs: Mic/Lin XLR (pin 2 hot), D/I (1/4")
  • Output: XLR (pin 2 hot)
  • Transformer balanced I/O (custom wound)
• Controls:
  • Voltage Gain: Stepped 16 - 52 dB
  • Fine Gain: Variable +/- 5 dB
  • Total Gain: +57 dB
  • Output Control: Variable
  • Rumble Filter: Inductor based, switchable (30, 45, 60, 70, 90, 110, 130, 180 Hz)
  • Pad: 20 dB, switchable
  • Phantom Power: +48V, switchable
• Power: Internal Power Supply
