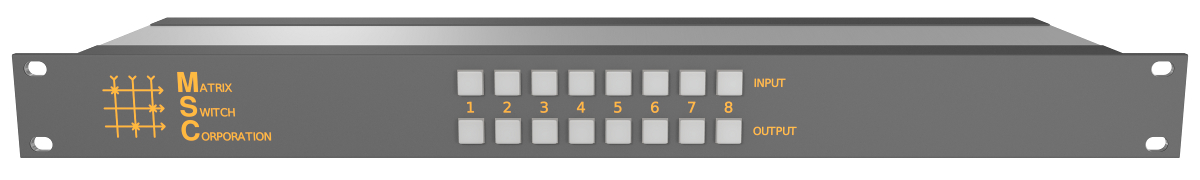

Matrix Switch Corporation MSC-1HD1616S
16x16 3G/HD/SD-SDI Video Router

OUR PART #:  MSC-1HD1616S

Matrix Switch Corporation offers the MSC-1HD1616S; a 16x16 3G/HD/SD-SDI Video Router - this model comes with a status panel on the front of the unit.
Learn More
Our Price: $2,158.00
List Price: $2,480.00
You save 13%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Matrix Switch Corporation MSC-1HD1616S
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Matrix Switch Corporation offers the MSC-1HD1616S; a 16x16 3G/HD/SD-SDI Video Router - this model comes with a status panel on the front of the unit.

1RU Configurable SDI video routing switchers from Matrix Switch Corporation offer factory configurable matrix size configurations of 8x16, 16x8 and 16x16. Control panel and redundant power supply options provide flexibility in purchasing only those features that are needed. These systems are 1RU in height and less than 6 inches deep, allowing for installation in space and weight limited situations.

An extra audio option provides audio routing capabilities in addition to the included embedded SDI audio routing support. This option is ordered as a separate 1RU device connected via a D25 straight through cable. Either AES digital (MSC-DE1616) or analog stereo audio (MSC-AA1616) can be chosen.

Matrix Switch Corporation MSC-1HD1616S Features:

  • Modern Javascript web page interface
  • Flexible control options utilizing our text based protocol (MASCOT) over TCP/IP via Ethernet port, RS-232 serial or web page interface
  • Compatible with Matrix Switch Corporation TCP/IP Remote Panels
  • Reclocks standard SD/HD/3G rates with auto bypass for non-standard rates 20MBPS to 3GBPS
  • All versions pass SDI embedded audio
  • Vertical interval switching
  • Video mute feature
  • Store and recall up to 10 non-volatile presets (complete or partial matrix state recall)
  • Optional local control button panel
  • Optional additional 75 ohm AES digital audio (separate unit MSC-DE1616 connected via D25 AFV connector)
  • Optional additional balanced analog stereo audio (separate unit MSC-AA1616 connected via D25 straight through cable)
  • Supports audio break away (additional audio option only, not embedded SDI audio)
  • Compact design. Less than 6 inches deep
  • Low power consumption. Less than 20VA
  • External DC power supply
  • Optional redundant power supply
  • Complies with all relevant FCC, U/L and CE requirements
  • Software updates via Ethernet port
  • Backed by a full 2 year manufacturer parts and labor warranty

Matrix Switch Corporation MSC-1HD1616S Specifications:

  • Inputs: 16
  • Panel: Status
  • Output: 16
  • Input impedance: 75 ohms ±1%
  • Input return loss: > -15 dB at 1.5GBPS, > -12 dB at 2.97GBPS
  • Input level: 800mV P-P ±20%
  • Output impedance: 75 ohms ±1%
  • Output return loss: > -15 dB at 1.5GBPS, > -12 dB at 2.97GBPS
  • Output level: 800mV P-P ±5%
  • Cable equalization: Belden type 1694A cable: 350m @ SD (143 - 540MBPS), 175m @ HD (1.5GBPS), 100m @ 3G (2.97GBPS)
  • Jitter: < 0.2UI P-P
  • Embedded audio: Clean pass through
  • Size: 19"W x 1.75"H x 6"D
  • Rack Size: 1RU
  • Weight: 5 lbs
  • Power: 12VDC
  • Storage Temp: -10 Through +50 Deg C
  • Operating Temp: 0 Through +40 Deg C
  • Humidity: 0 Through 90% Non-Condensing
