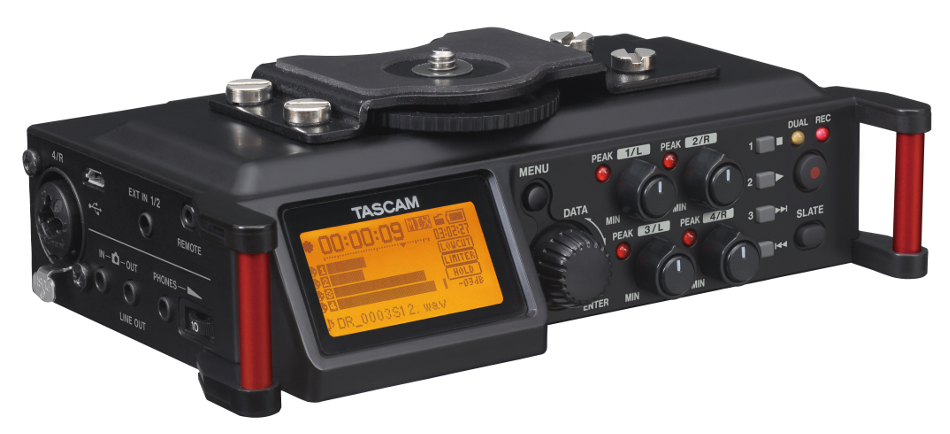

Tascam DR-70D 4-Track Linear PCM Recorder For DSLR Camera Image 1
Tascam DR-70D 4-Track Linear PCM Recorder For DSLR Camera Image 2
Tascam DR-70D 4-Track Linear PCM Recorder For DSLR Camera Image 3
Tascam DR-70D 4-Track Linear PCM Recorder For DSLR Camera Image 4
Tascam DR-70D 4-Track Linear PCM Recorder For DSLR Camera
Our Price: $299.00
List Price: $419.00
You save 29%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The DR-70D from Tascam is the ultimate audio recording solution for filmmakers. Four balanced XLR mic inputs meet the requirements of production sound, from professional users to indie DSLR shooters. The compact format can be mounted either above or below a camera, and a pair of built-in microphones can capture sound on-set. The interface is designed for quick adjustment, with additional features to keep recording levels under control.

Four XLR mic inputs with phantom power are included on the DR-70D, enough to cover busy scenes. The High-Quality HDDA (High Definition Discrete Architecture) Mic Preamps include 64 dB of gain for quiet performances, and all four inputs have individual gain controls. Each input has a limiter and low cut filter available for controlling volume. Also included is Dual Recording mode, which records a safety copy of your audio at a lower level to prevent distorted takes. Quality components like 5532 op amps are used throughout for the clearest audio possible.

Tracks on the DR-70D are captured to SD card, SDHC or SDXC media – up to 128GB cards are supported. The recorder has tripod mounts on the top and bottom of the unit, allowing it to be mounted on a camera, a follow-focus cage, or used standalone. Other production friendly features include a slate tone, low-noise buttons, a powerful headphone output, and standard AA battery power.

Uniquely designed for the needs of filmmakers, television producers, advertisers, and documentarians, the DR-70D packs multitrack recording into a package compact enough to use with any camera.

Features:

  • Supports SD/SDHC/SDXC cards
  • Recording modes: MONO, STEREO, 2MIX, DUAL MONO, DUAL ST, DUAL 2MIX
  • Recording formats: 16 / 24-bit, 44.1k / 48k / 96kHz (WAV/BWF)
  • XLR / TRS inputs support +4dBu line level and phantom power (24V / 48V)
  • Supports mics requiring plug-in power, and mics with high output (1-2)
  • CAMERA OUT jack enables audio mixed on the DR-70D to be output to the camera
  • CAMERA IN jack allows the DSLR camera audio to be monitored through the DR-70D
  • Tripod mounting threads (bottom), camera screw attachment and a shoe mount that can be attached and removed with a coin (top)
  • Handles on the front left and right sides protect the screen and can be used to attach a shoulder strap
  • Mid-side decoding function enables the use of mid-side stereo mics
  • Dual recording function allows two files to be recorded simultaneously at different levels (second file at between -1dB and -12dB)
  • Mark function allows up to 99 points to be added to a single recording (mark information can be used in software that supports the BWF format)

Tascam DR-70D Specifications:

  • Audio Performance:
    • Frequency Response:
      • 20Hz - 20kHz +0.5 / -2dB (LINE IN or MIC IN to LINE OUT, Fs 44.1k / 48kHz, JEITA)
      • 20Hz - 40kHz +0.5 / -3dB (LINE IN or MIC IN to LINE OUT, Fs 96kHz, JEITA)
    • Distortion: 0.02% or less (LINE IN or MIC IN to LINE OUT Fs44.1k / 48k / 96kHz, JEITA)
    • S/N Ratio: 92dB or more (LINE IN or MIC IN to LINE OUT Fs44.1k / 48k / 96kHz, JEITA)
    • Equivalent Input Noise: -120dBu or less
  • Recording Media: SD card (64MB to 2GB), SDHC card (4GB to 32GB), SDXC card (48GB to 128GB)
  • Recording Format:
    • WAV: 44.1kHz, 48kHz, 96kHz; 16-bit / 24-bit
    • BWF: 44.1kHz, 48kHz, 96kHz; 16-bit / 24-bit
    • Number of Channels: 4-Channel (stereo x 2, mono x 4)
  • Analog Audio Input:
    • Set to "MIC / MIC + PHANTOM:
      • Input Impedance: 2kΩ
      • Phantom Power: 48V +/-4V (10mA / CH), 24V +/-4V (10mA / CH)
      • Maximum Input Level: 0dBu
      • Minimum Input Level: -72dBu
      • MIC Input Gain: TRIM MAX
      • LOW: +11dB
      • HIGH: +51dB
      • HI + PLUS: +63dB
    • Set to "LINE":
      • Input Impedance: 10kΩ or more
      • Standard Input Level: +4dBu
      • Maximum Input Level: +20dBu
    • 1/2 Connector:
      • Connector: 1/8" Stereo mini jack (this connector can be supplied plug-in power)
      • Input Impedance: 10kΩ
      • Maximum Input Level: +10dBV
      • Minimum Input Level: -50dBV
      • MIC Input Gain: TRIM MAX
      • LOW: +3dB
      • HIGH: +26dB
      • HI + PLUS: +38dB
    • CAMERA IN Connector:
      • Connector: 1/8" Stereo mini jack
      • Input Impedance: 10kΩ
      • Standard Input Level: -10dBV
      • Maximum Input Level: +6dBV
    • Connector: XLR-3-31 (1:GND, 2:HOT, 3:COLD) / 1/4" TRS Standard Jack
  • Analog Audio Output:
    • LINE OUT Connector:
      • Connector: 1/8" Stereo mini jack
      • Output Impedance: 200Ω
      • Standard Output Level: -10dBV
      • Maximum Output Level: +6dBV
    • CAMERA OUT Connector:
      • Connector: 1/8" Stereo mini jack
      • Output Impedance: 200Ω
      • Standard Output Level: -40dBV
      • Maximum Output Level: +24dBV
    • PHONES Connector:
      • Connector: 1/8" Stereo mini jack
      • Maximum Output Level: 20mW + 20mW
    • USB:
      • Connector: Micro-B type
      • Format: USB 2.0 HIGH SPEED mass storage class
    • REMOTE:
    • Connector: 2.5mm TRS jack
  • Power: 4 AA batteries (Alkaline or NI-MH), USB bus power, Dedicated AC adapter (TASCAM PS-P515U,
  • Power Consumption: 5.0W
  • Dimensions (WxHxD): 6.65" x 2.2" x 4.2" (169mm x 55.2mm x 106.5mm)
  • Weight: 1.37lbs (including batteries, 1.16lbs w/o batteries)
  • Operating Temperature: 0°C to 40°C
  • Standard Accessories: USB Cable, Camera attachment bracket screw hole covers x6, Owner's Manual (including warranty)
  • Computer Compatibility:
    • Windows:
      • OS: Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1
      • CPU: Pentium 300MHz or more
      • RAM: 128MB or more
    • Macintosh:
      • OS: Mac OS X Jaguar (V10.2), Mac OS X Panther (V10.3), Mac OS X Tiger (V10.4), Mac OS X Leopard (V10.5), Mac OS X Snow Leopard (V10.6.8), OS X Lion (V10.7), OS X Mountain Lion (V10.8), OS X Mavericks (10.9)
      • CPU: Power PC, iMac G3, G4 266MHz or more
      • RAM: 64MB or more
    • USB: Recommended USB 2.0
