Philips Color Kinetics 103-000015-04
Light System Manager - Generation 4

OUR PART #  103-000015-04

Our Price: $2,704.00
List Price: $3,222.79
You save 16%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

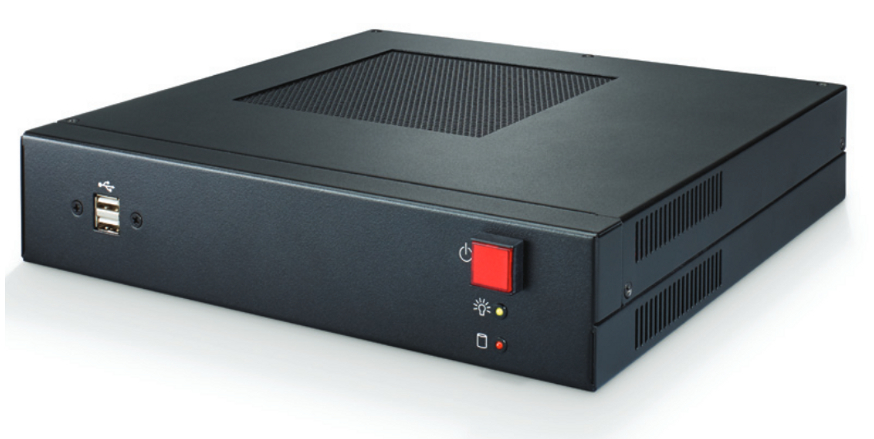

Optimized for medium and large-scale LED lighting installations, the Phillips 103-000015-04 Light System Manager controller (LSM) is an integrated hardware and software solution comprising Light System Engine (LSE) controller hardware and Light System Composer (LSC) creative design software.  With support for intricately designed installations containing thousands of LED nodes, Light System Manager offers the versatility to manage wide-ranging architectural, entertainment, and retail lighting environments.

Phillips 103-000015-04 Includes:

  • Light System Manager
  • Power cable
  • (2) Mounting brackets and (6) Mountingscrews
  • Software CD
  • Quick Start Guide
  • Installation Instructions

Phillips 103-000015-04 Features:

  • Easy to use — Featuring Ethernet-based  controland automatic lighting system discovery, Light System Manager dramaticallysimplifies installation.
  • Hardware support for medium and large environments —Light System Engine hardware processes simultaneous light output data for upto 15,000 individually controllable LED nodes, depending onconfiguration.
  • Improved reliability — Solid-state drives reduce thenumber of moving parts to enhance the reliability of the LSEhardware.
  • Slimmer profile — Slimmer form factor offersconvenient surface mounting, as well as the ability to install in server racksand racknmount cases.
  • Flexible mounting options — Integrated mounting tabsallow installation overhead, on vertical surfaces, or on moving architecturalor entertainment features.
  • Packaged with Light System Composer — Light SystemComposer software allows you to create and manage dynamic light shows withfully customizable effects, multi-layer editing, and unique color palettes.You can design shows with single or multiple color-changing effects, animatedimages, geometric patterns, and more.
  • Versatile zone usage — Configure and control multipleplayback zones, each with up to unique light show assignments. Light SystemManager allows zone control of both indoor and outdoor fixtures within asingle installation.
  • Simplified control access — Designed for use withLSM, Ethernet Controller Keypad is a wall-mounted triggering device thatcontrols light shows and fixture brightness at the touch of a button. LSMsupports up to 10 keypads within a single lightinginstallation.
  • Automatic playback control — Configure showscheduling based on a specific date, a day of the week, weekdays, orweekends.
  • Support for IntelliWhite lighting fixtures — LightSystem Manager offers visual effects with color temperature and intensitysettings designed specifically for IntelliWhite white lightfixtures.
  • Supports the optional AuxBox expansion device — AuxBox automaticallytriggers up to eight light shows using any remote triggering device with adry-contact closure. Via the AuxBox, you can trigger light shows by motionsensors, third-party control or sensor systems, and more.

Phillips 103-000015-04 Specifications:

  • Please review attached documentation for this info.

Phillips 103-000015-04 Software Requirements:

  • System Requirements:
    • Software Operating System:
      • PC: Vista / Windows 7
      • Mac: OS X 10.9 or greater
  • Hardware:
    • Optical Drive:
      • PC: CD-ROM or DVD drive
      • Mac: CD-ROM or DVD drive
    • Memory:
      • PC: 256 MB RAM
      • Mac: 256 MB RAM
    • Disk space:
      • PC: 10 MB free disk space
      • Mac: 10 MB free disk space
