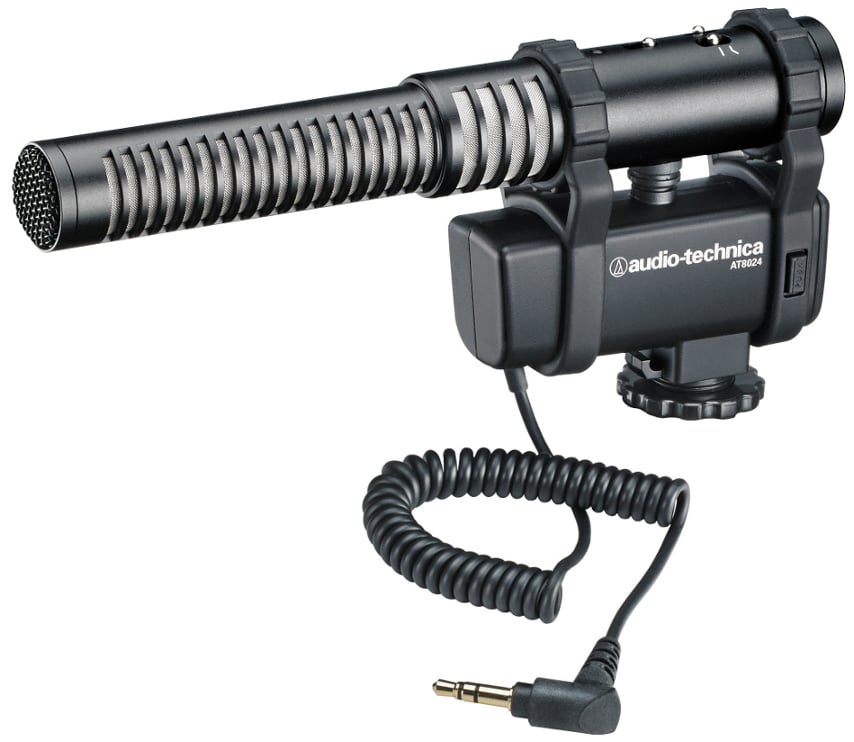

Audio-Technica AT8024
Stereo / Mono Camera-Mount Shotgun Microphone

OUR PART #:  AT8024

The Audio-Technica AT8024 Stereo/Mono Camera-Mount Shotgun Microphone lets you capture high-resolution audio for video.
Learn More
Our Price: $249.00
Write the first review.
Audio-Technica AT8024
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Audio-Technica AT8024 Stereo/Mono Camera-Mount Shotgun Microphone lets you capture high-resolution audio for video. Selectable line-cardioid mono and internally matrixed mid-side stereo modes are the main feature of this microphone, which allows you to focus on a single sound source or capture a wider field of audio.

The AT8024 also features a 3-position adjustable input pad (-20 dB, -10 dB, 0 dB) that captures both soft and loud bits of sound without distortion. The microphone's switchable low-frequency roll-off reduces pickup of undesired ambient noise, room reverberation and mechanically coupled vibrations. The AT8024 is powered by one AA battery (included), performs with a high max SPL, and features an integral camera shoe mount.

Audio-Technica AT8024 Includes:

  • AT8024 stereo/mono camera-mount shotgun microphone with shoe mount
  • Windscreen
  • Fuzzy windscreen
  • AA battery

Audio-Technica AT8024 Features:

  • For use with DSLR and other video cameras
  • Delivers sound superior to cameras' internal microphones
  • Selectable line-cardioid mono or mid-side stereo modes provide the flexibility to capture high-resolution audio in any environment
  • Handles loud sound sources without distortion
  • Three-position adjustable input pad and switchable low-frequency roll-off
  • Integral rubber shock mounts isolate the microphone from vibration and mechanical camera noise
  • Compact, lightweight design with integral shoe mount
  • Red/green LED power indicator

Audio-Technica AT8024 Specifications:

  • Element: Fixed-charge back plate, permanently polarized condenser
  • Polar Patterns: Line-cardioid, LR stereo
  • Frequency Response: 40 Hz - 15 kHz
  • Low Frequency Roll-Off: 80 Hz, 12 dB/octave
  • Open Curcuit Sensitivity: –37 dB (14.1 mV) re 1V at 1Pa (Mono & LR Stereo)
  • Impedance: 50 ohms
  • Maximum Sound Input Level:
    • 128 dB SPL, 1 kHz at 1% T.H.D.
    • 148 dB SPL, with 20 dB pad
  • Dynamic Range (typical):
    • Mono: 106 dB, 1 kHz at Max SPL
    • Stereo: 104 dB, 1 kHz at Max SPL
  • Signal-To-Noise Ratio:
    • Mono: 72 dB, 1 kHz at 1 Pa
    • Stereo: 70 dB, 1 kHz at 1 Pa
  • Battery Type: One 1.5V AA (included)
  • Battery Life: 100 hours, typical
  • Switches:
    • Mono, M-S Stereo
    • Three-position input pad
    • Flat, roll-off
  • Weight: 4 oz. (114 g)
  • Dimensions: 6.77" L x 0.94" Diameter (172 x 24.0 mm)
  • Output Connector: 3.5 mm stereo mini-plug on cable
  • Cable: Permanently attached 0.2 m -1 m (7.8"- 39.3") coiled cable with right-angle molded 3.5 mm stereo mini-plug at output end
