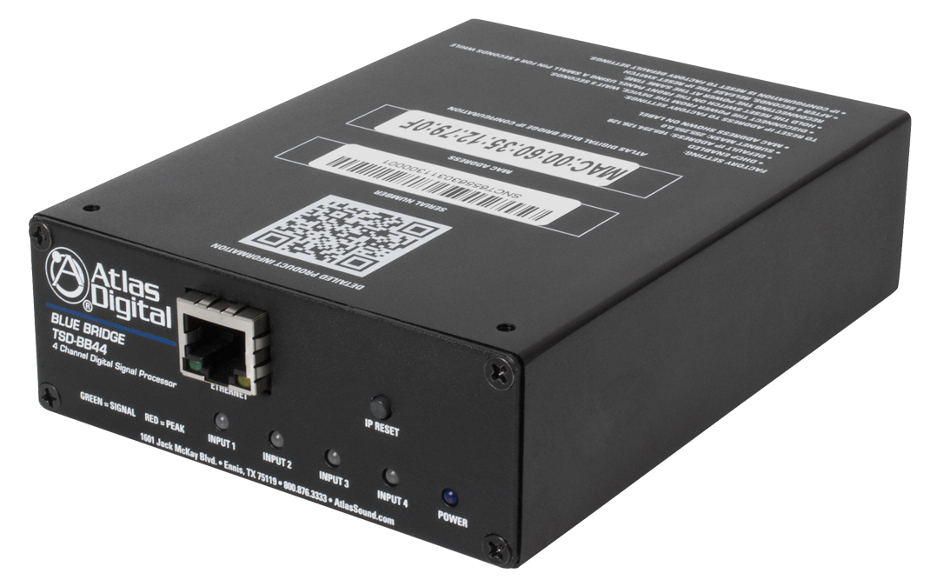

Atlas Sound TSD-BB44
4 In / 4 Out BlueBridge DSP Audio Processor


The Atlas Sound TSD-BB44 BlueBridge DSP audio processor is a powerful and flexible tool offering mission critical solutions to satisfy the exact needs of any installation.
Learn More
Our Price: $972.99
List Price: $1,215.99
You save 20%!
Write the first review.
Atlas Sound TSD-BB44
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Atlas Sound TSD-BB44 BlueBridge DSP audio processor is a powerful and flexible tool offering mission critical solutions to satisfy the exact needs of any installation. Engineered to strict standards with the highest quality internal components, BlueBridge devices provide pure clean audio, Ethernet connectivity for cost effective TCP/IP control and easy programmability. Intended for a variety of audio applications, BlueBridge DSP platforms are cost effective solutions for the most demanding applications including video conferencing, house of worship, presentation rooms, conference rooms, courtrooms, room combining, restaurants, multi-zone paging, background music, and many other sound reinforcement and AV applications.

The BlueBridge family of products feature open architecture, drag and drop software that makes them incredibly easy to use. Each model utilizes high quality THAT® microphone preamps and 24 Bit converters to obtain an ultra-low noise floor while still maintaining a smooth sound that satisfies the needs of demanding clients, with the flexibility and control a system designer requires. BlueBridge models use a 40 Bit Floating Point DSP engine to prevent digital clipping that commonly occurs in other DSP products and to obtain maximum speed and power to process advanced algorithms in complex system designs. BlueBridge DSP units can operate on any network while the optional control accessories require a PoE switch. BlueBridge devices need to be connected to the network during set-up and if control is required but can be applied in many instances where network control is unnecessary or unavailable like live speech applications. When connected to a network, each BlueBridge processor on the network will be auto recogized and controllable. BlueBridge models provide many valuable processing tools including standard mixers, gain sharing auto-mixers, delays, equalizers, level controls, duckers, filters, and dozens of other processing capabilities.

Atlas Sound TSD-BB44 Features:

  • Drag and Drop Open Architecture
  • Mic or Line Selectable Inputs
  • Balanced High Gain Outputs
  • Output Peak & Signal Indicator LEDs
  • Ultra Low Noise Floor
  • High Quality Mic Preamp (THAT® Corp)
  • Ethernet Network Connectivity
  • 24dB Converters
  • 48kHz, 40 Bit Floating DSP Engine
  • External Power Supply (Included)

Atlas Sound TSD-BB44 Specifications:

  • Inputs:  4
  • Input Type:  Mic or Line, GUI Selectable
  • Configuration Electronically Balanced Gain:  -40 to +15dB in 0.25dB Steps
  • Polarity:  +/-, GUI Selectable
  • Input Impedance:  > 10 kOhms
  • Maximum Input Level:  +20dBu
  • Phantom Power:  48V, GUI Enabled
  • Outputs:  4
  • Output Impedance:  50 Ohms
  • Maximum Output Level:  +20dBu
  • Frequency Response:  20 Hz - 20 kHz
  • Dynamic Range:  110dB Type (Unweighted)
  • CMMR:  > 100dB (50 Hz - 10 khz)
  • Distortion:  0.002% (1kHz @ +4dBu)
  • Height:  1.5" (3.9cm)
  • Width:  4" (10.1cm)
  • Depth:  5.2" (13.21cm)
  • Weight:  6 oz. (0.165 kg)
  • External Power Supply Safety and Certifications:  cUL, CE, RoHS, TUV
