OUR PART # BOB16-I/O
The RME BOB-16 breakout boxes are the perfect rack solutions for interconnecting multichannel XLRs with the common D-sub connector format. Three different versions are available: BOB-16 I, BOB-16 O and BOB-16 I/O.
The BOB-16 connects up to 16 XLR inputs and/or 16 XLR outputs (Neutrik connectors) with two D-sub 25-pin connectors. It works like two breakout cables D-Sub from/to XLR. The usual multicore breakout cables are replaced with a 19” rack mount unit, preventing cable chaos, errors and connection problems. The BOB-16 is pin compatible to the common TASCAM pinout format. Adapters to the YAMAHA format are available from RME partner ALVA.
The BOB-16 I/O version connects 8 XLR inputs to a D-sub 25-pin connector and 8 XLR outputs to another D-sub 25-pin connector. The breakout box supports all interfaces using an analog 25-pin D-sub I/O as well as the following RME interfaces: ADI-8 QS, ADI-8 DS, M-32 AD, M-32 DA, M-16 AD, M-16 DA.
All BOB-16 boxes provide the revolutionary Flip frame option. It allows to change rack brackets and handles from front to rear and thus to change XLR or D-sub from front to rear as well. This way a BOB will perfectly fit in every rack and working situation.

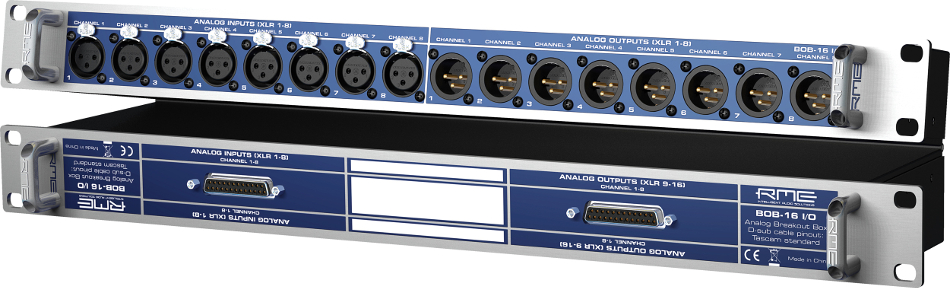

NOTE: Image shown above is for illustrative purposes only; the front and back of a single unit are shown and only one unit is sold per purchase. For more information on this and other products, contact your Sales Representative.
