Shure P3T
PSM 300 Series Half-Rack Single Channel Wireless Transmitter

OUR PART #  P3T

Selected Model Price: $349.00
List Price: $436.00

Save up to 20%! (Low Price Guarantee)
Select model: (shipping times are approximate)

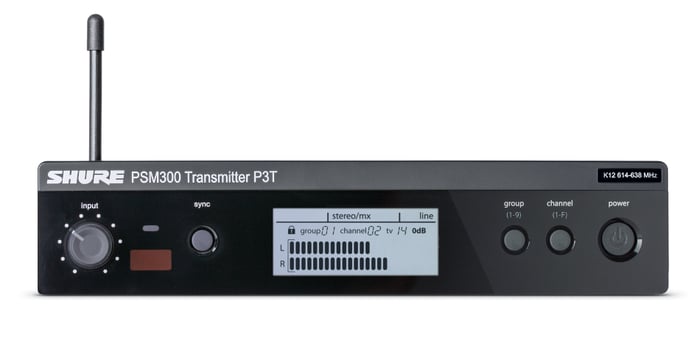

The Shure P3T half-rack single channel wireless transmitter housed in a rugged all-metal chassis for both entry-level and professional-tier PSM 300 wireless in-ear monitor systems. The P3T offers dependable wireless transmission and 24-bit digital audio, which combine to deliver a superior personal monitoring mix for every performance.

Send two channels of audio to a bodypack receiver up to 300 feet (90 m) away, with patented Audio Reference Companding to ensure transparent sound quality with no artifacts or dropouts.

Shure P3T Includes:

  • P3T Half-Rack Single Channel Wireless Transmitter
  • Rackmount and hardware kits
  • Detachable 1/4 Wave Antenna
  • BNC Cable
  • BNC Bulkhead Adapter
  • Power Supply
  • User Guide

Shure P3T Features:

  • Sends a stereo or mono mix wirelessly to performers onstage
  • Detailed, 24-bit digital audio
  • Rock-solid analog wireless connection over a 300 foot (90 meter) range
  • One-touch IR sync instantly links transmitter to bodypack receiver
  • High-contrast LCD screen with audio metering
  • Selectable line/aux level
  • 1/4" (6.3 mm) TRS balanced inputs and loop outputs
  • Detachable 1/4 wave antenna
  • Rack hardware kit included

Shure P3T Specifications:

  • RF Carrier Range:  488 – 937.5 MHz (Note: varies by region)
  • Compatible Freqeuncies Per Band:  Up to 15
  • Tuning Bandwidth:  24 MHz maximum (Note: varies by region)
  • Operating Range:  300 ft (90 m)
  • Audio Frequency Response:  38 Hz – 15 kHz
  • Signal-to-Noise Ratio:  90 dB (typical)
  • Total Harmonic Distortion:  < 0.5% (typical) (ref. +/- 34 kHz deviation @ 1 kHz)
  • Companding:  Patented Shure Audio Reference Companding
  • Spurious Rejection:  > 80 dB (typical)
  • Frequency Stability:  +/- 2.5 ppm
  • MPX Pilot Tone:  19 kHz (+/- 1 Hz)
  • Modulation:  FM, MPX Stereo (ref. +/- 34 kHz deviation @ 1 kHz)
  • Operating Temperature:  0°F to 145°F (-18°C to +63°C)
  • RF Output Power:  10, 20, 30 mW (Note: varies by region)
  • RF Output Impedance:  50 Ohms (typical)
  • Net Weight:  27.6oz. (783 g)
  • Dimensions: 1.7" H x 7.8" W x 6.8" D (43 x 198 x 172 mm)
  • Power Requirements:  12 – 15 V DC, 260 mA maximum

Shure P3T
PSM 300 Series Half-Rack Single Channel Wireless Transmitter

OUR PART #  P3T

Product Videos:

Product Information:

The Shure P3T half-rack single channel wireless transmitter housed in a rugged all-metal chassis for both entry-level and professional-tier PSM 300 wireless in-ear monitor systems. The P3T offers dependable wireless transmission and 24-bit digital audio, which combine to deliver a superior personal monitoring mix for every performance.

Send two channels of audio to a bodypack receiver up to 300 feet (90 m) away, with patented Audio Reference Companding to ensure transparent sound quality with no artifacts or dropouts.

Shure P3T Includes:

  • P3T Half-Rack Single Channel Wireless Transmitter
  • Rackmount and hardware kits
  • Detachable 1/4 Wave Antenna
  • BNC Cable
  • BNC Bulkhead Adapter
  • Power Supply
  • User Guide

Shure P3T Features:

  • Sends a stereo or mono mix wirelessly to performers onstage
  • Detailed, 24-bit digital audio
  • Rock-solid analog wireless connection over a 300 foot (90 meter) range
  • One-touch IR sync instantly links transmitter to bodypack receiver
  • High-contrast LCD screen with audio metering
  • Selectable line/aux level
  • 1/4" (6.3 mm) TRS balanced inputs and loop outputs
  • Detachable 1/4 wave antenna
  • Rack hardware kit included

Shure P3T Specifications:

  • RF Carrier Range:  488 – 937.5 MHz (Note: varies by region)
  • Compatible Freqeuncies Per Band:  Up to 15
  • Tuning Bandwidth:  24 MHz maximum (Note: varies by region)
  • Operating Range:  300 ft (90 m)
  • Audio Frequency Response:  38 Hz – 15 kHz
  • Signal-to-Noise Ratio:  90 dB (typical)
  • Total Harmonic Distortion:  < 0.5% (typical) (ref. +/- 34 kHz deviation @ 1 kHz)
  • Companding:  Patented Shure Audio Reference Companding
  • Spurious Rejection:  > 80 dB (typical)
  • Frequency Stability:  +/- 2.5 ppm
  • MPX Pilot Tone:  19 kHz (+/- 1 Hz)
  • Modulation:  FM, MPX Stereo (ref. +/- 34 kHz deviation @ 1 kHz)
  • Operating Temperature:  0°F to 145°F (-18°C to +63°C)
  • RF Output Power:  10, 20, 30 mW (Note: varies by region)
  • RF Output Impedance:  50 Ohms (typical)
  • Net Weight:  27.6oz. (783 g)
  • Dimensions: 1.7" H x 7.8" W x 6.8" D (43 x 198 x 172 mm)
  • Power Requirements:  12 – 15 V DC, 260 mA maximum
