Ace Backstage Co. ISO102DDBBX
12" Deep Full Back Box with Isolation Bracket for High & Low Voltage in Same Full Size Pocket

OUR PART #:  ISO102DDBBX

Our Price: $194.01
List Price: $250.99
You save 23%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ace Backstage Co. ISO102DDBBX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

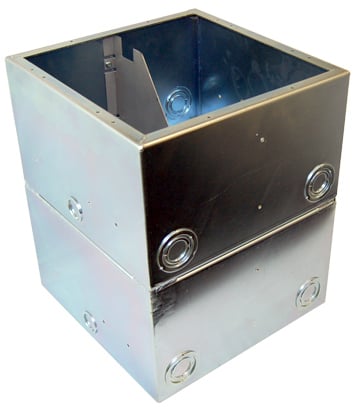

The Ace Backstage ISO102DDBBX is a 12" Deep Full Back Box with an Isolation Bracket that is designed for use when installing full size pockets with high and low vontage in the same pocket.

Dimensions: 10" W x 10" L x 12" D

Clearance Volume: 722 cubic inches

Includes:

  • 1x ACE 102/104 Back Box
  • 1x ACE ISOBRKT, installed
  • 1x Disposable Protective Back Box Cover
  • 4x Self-Tapping Screws

Isolated ACE Back Boxes include a galvaneal steel separation bracket mounted inside the back box to provide isolation between high and low voltage for ACE Stage Pockets. Installing ISO Back Boxes during the rough-in stage of construction saves the installer time and hassle in the finish-stage. High voltage conduit can enter the back box through combination knockouts on one side of the back box and low voltage through the opposite side. The connector and AC panels can be terminated and left inside the ISO back box until carpet is laid or floors are finished. In the final, finish stage the installer can pull the terminated connector panels through the back access opening in the ACE Pocket and secure the pocket bezel to the finished floor.

The Isolation Bracket sits tightly beneath the pocket, inside the back box, to maintain secure separation of high and low voltage, ensuring manual isolation.

NOTE: This back box is not suitable for Mini or Half Back Box applications.

ACE ISO Back Boxes are designed exclusively for use with ACE Full and Double Wide Stage Pockets. Set the back box securely braced into the floor to provide support equal to the floor loading requirements, accounting for any height offset required for the finished floor. Standard electrical conduit may be connected to the back box on any side via combination knockouts, and audio conduit connected on the opposing side. The protective cover is discarded when the finished pocket is installed. Mating screw holes are provided to secure the pocket flange to the back box flange.

Ace Backstage ISO102DDBBX Features:

  • CLEARANCE VOLUME: Standard Stage Pocket body assemblies are 4.5" deep while the Back Box is 6" deep providing 1.5" work clearance in the bottom of the Back Boxes, making them ideal for feed thru or distribution junctions. Clearance volumes for the ISO102DDBBX Back Box with Full Pocket is 722 Cubic Inches
  • DURABLE CONSTRUCTION: ACE Standard Back Boxes (#BBX) are made from tough, welded 14 gauge steel (.071" thick). Ace Standard AC Isolation Brackets (#ISOBRKTx) are made from 16 gauge galvaneal (.064" thick).
  • ELECTRICAL KNOCKOUTS: ACE Standard Back Boxes come with standard Electrical Conduit Combination Knockouts. 1/2", 3/4", 1", and 1-1/4" Knock Outs multiple places typical on opposing sides. 1/2" and 3/4" Knock Outs multiple places typical on opposing sides.
  • PROTECTIVE COVER: Included with all ACE Back Boxes is a disposable, protective cover. Finished in the same corrosion resistant zinc as the back box itself, the cover protects the box until the stage pocket is installed in the finish-stage of construction.
  • DURABLE FINISH: Clear zinc corrosion-resistant finish
  • STANDARD BACK BOX MATERIALS:
    • ISO Back Box – 14 Gauge Steel (.071" thick)
    • ISO Bracket – 16 Gauge Galvaneal (.063" thick)
