Neutrik NAC3FCB-D
Bulk Pack of A-Type Cable End Output Locking Power Connectors

OUR PART #:  NAC3FCB-D

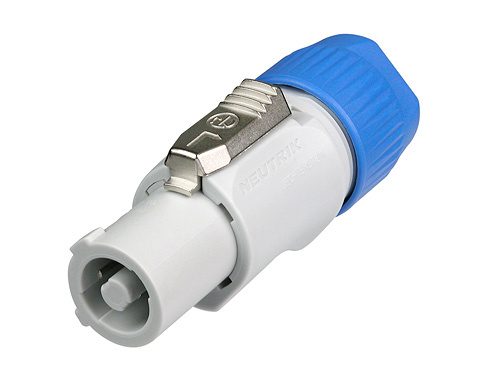

The Neutrik NAC3FCB-D is a bulk pack of lockable power-out cable connectors with screw terminals in gray.
Learn More
Our Price: $5.81
List Price: $7.43
You save 22%!
Write the first review.

This product must be purchased in multiples of 100

Neutrik NAC3FCB-D
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Neutrik NAC3FCB-D is a bulk pack of lockable power-out cable connectors with screw terminals in gray.

The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

NOTE:  The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

Neutrik NAC3FCB Features:

  • Locking 20 A / 250 V ac appliance coupler
  • 3 contacts for line, neutral and premating safety ground
  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Fast and easy twist lock latching system
  • Extremely robust and reliable
  • Ergonomic design
  • User friendly latch design for easy handling
  • Unique Neutrik chuck type strain relief
  • UL, cUL recognized components
  • VDE certified
  • SEV approved
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Neutrik NAC3FCB Specifications:

  • Electrical:
    • Contact Resistance:  </= 3 megohms (inner)
    • Dielectric Strength:  4 kVdc / 2.8 kVac
    • Insulation Resistance:  > 0.1 Gigohm (after damp heat test IEC 68-2-30)
    • Number of electronical contacts:  2 + PE
    • Rated Current per Contact:  20 A rms
    • Rated Voltage:  250 V ac
  • Mechanical:
    • Cable O.D.:  6 - 15 mm (Cable O.D. range limited to 6 mm - 14 mm acc. VDE)
    • Lifetime:  > 1000 mating cycles
    • Wiresize:  2.5 sq. mm
    • Wiresize:  14 AWG
    • Locking Device:  Quick Lock
  • Material:
    • Contact Plating:  4 µm Ag
    • Contacts:  Bronze (CuSn6)
    • Insert:  Polyamide (PA 6 30 % GR)
    • Locking Element:  Zinc diecast (ZnAl4Cu1)
    • Shell:  Polyamide (PA 6 30 % GR)
    • Strain Relief:  Polyacetal (POM)
  • Temperature Range:  -30 °C to +80 °C
