BBE MP24M

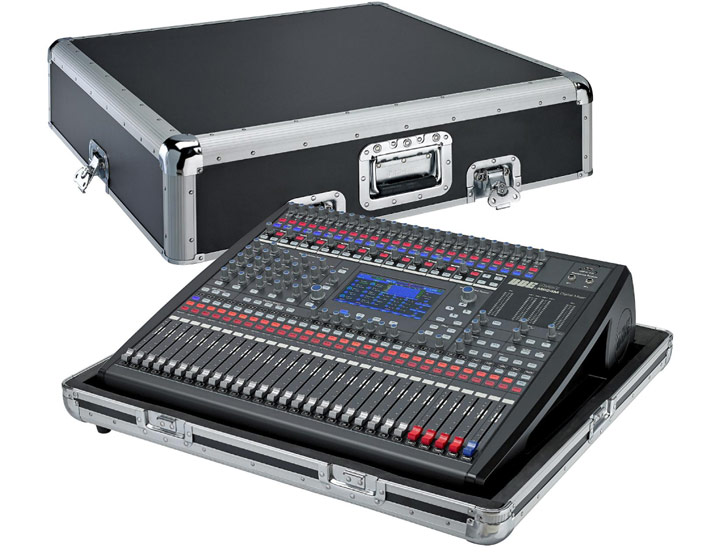

24-Channel Digital Mixer with BBE Sonic Maximizer Processing and Flight Case

OUR PART #:  MP24M

The BBE Sound MP24M Digital Mixer is the only digital mixing system available with BBE® Sonic Maximizer® processing.
Learn More
Sale Price: $1,499.99
List Price: $2,499.99
You save 40%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

BBE MP24M
Qty:
In Stock

Similar Products

The BBE Sound MP24M Digital Mixer is the only digital mixing system available with BBE® Sonic Maximizer® processing. The MP24M features 24 Class A microphone preamps, a virtual rack of fourteen 31-band graphic EQs, eight AUX sends and four Sub groups all with full DSP processing, and precise LED metering. The input channels feature compressor, gate, high and low pass filters, four-band parametric EQ, delay, and polarity reverse.

The BBE MP24M also lets you save FX presets, Channel DSP presets and full console Scene presets via simple to use Load/Save/Copy functions.

BBE Sound MP24M Features:

  • BBE's Sonic Maximizer® processing
  • 24 ultra-high headroom BBE MASS® Class A, Twin Servo mic preamps
  • 2 Stereo AUX line Inputs
  • 4 Subgroups
  • Dedicated Mono Output with Variable Level Control
  • 2 Digital Effects Engines Featuring BBE's Proprietary FX Library
  • 8 AUX Sends
  • 15 Total Analog Outputs (LIR Stereo Mains, Mono Main, 1-4 Subgroups, 1-8 AUX Sends)
  • Assignable AES/EBU Output
  • 7" full-color LCD display
  • 100 Scenes can be Stored for Recall Anytime
  • Remote Mixing via PC or iOS Device
  • High-definition 24-bit/48 kHz A/D D/A converters
  • 32-bit floating-point SHARC DSP Processors
  • Dedicated Talkback mic input, fully assignable with EQ
  • High and Low Pass Filters
  • Full Function Gate and Compressor/Limiter
  • 4-band fully parametric EQ on every input and output
  • Phase Reverse
  • Channel Delay
  • 31-Band 1/3 Octave Graphic EQ Available on all analog outputs
  • Odd/Even Input Channels can be Linked
  • Odd/Even AUX Sends and Sub-Groups can be Linked
  • 2.4 GHz Wireless Connectivity for Stereo Playback
  • 100mm Long Throw Faders

BBE Sound MP24M Specifications:

  • Microphone Inputs:
    • Frequency Response to Direct Output:  20 Hz - 100 kHz at 0 dBu +/- 1.5 dB
    • Frequency Response to Main Output:  20 Hz - 20 kHz at 0 dBu +/- 1.5 dB
    • Distortion (THD+N) to Direct Output:  < 0.005% at 0 dBu +/- 1 kHz
    • Distortion (THD+N) to Main Output:  < 0.01% at 0 dBu +/- 1 kHz
    • SNR (Signal to Noise Ratio):  107 dB
    • Maximum Input Level:  +21 dBu
    • Phantom Power (+/-3V):  +48 VDC
  • Line Inputs:
    • Frequency Response to Direct Output:  20 Hz - 100 kHz at 0 dBu +/- 1.5 dB
    • Frequency Response to Main Output:  20 Hz - 20 kHz at 0 dBu +/- 1.5 dB
    • Distortion (THD+N) to Direct Output:  < 0.005% at 0 dBu +/- 1 kHz
    • Distortion (THD+N) to Main Output:  < 0.01% at 0 dBu +/- 1 kHz
    • Gain:  -15 dBu to +35 dBu
    • Maximum Input Level (Gain at 0 dBu):  +20 dBu
  • Aux 1~2 Inputs:
    • Frequency Response to Main Output:  20 Hz - 20 kHz at +0 dBu +/- 1.5 dB
    • Distortion (THD+N) to Main Output:  < 0.01% at 0 dBu +/- 1 kHz
    • Gain:  -8 to +10 dBu
    • Maximum Input Level:  +22 dBu
  • Tape L/R Inputs:
    • Frequency Response to Main Output:  20 Hz - 20 kHz at +4 dBu +/- 1.5 dB
    • Distortion (THD+N) to Main Output:  < 0.01% at 0 dBu +/- 1 kHz
    • Gain:  -8 to +10 dBu
    • Maximum Input Level:  +21 dBu
  • Talkback MIC:
    • Frequency Response to Main Output:  20 Hz - 20 kHz at +0 dBu +/- 1.5 dB
    • Distortion (THD+N) to Main Output:  < 0.01% at 0 dBu +/- 1 kHz
    • Gain:  -8 to +10 dBu
    • Phantom Power (+/-3V):  +48 VDC
  • Maximum Output Level:
    • Main Outputs:  +20 dBu
    • Mono Output:  +22 dBu
    • Aux 1~8 Outputs:  +18 dBu
    • Sub 1~4 Outputs:  +18 dBu
    • Tape Outputs:  +14 dBu
    • Control Room Outputs:  +18 dBu
  • System Crosstalk:
    • Input to Output (at +4 dBu, 1 kHz):  -83 dBu
    • Adjacent Channels (at +4 dBu, 1 kHz):  -82dBu
    • Noise (Bus noise):  -85 dBu
  • Noise Gate:
    • Threshold Range:  -84 dBu to 0 dB
    • Attack Time:  0.5 ms - 200 ms
    • Release Time:  5 ms - 1 Sec
  • Compressor:
    • Threshold Range:  -30 dBu +/- 20 dB
    • Attack Time:  0.5 ms - 200 ms
    • Release Time:  10 ms - 1 Sec
    • Ratio:  1:1 to 1:10
    • Gain:  -0 dBu +/- 24 dB
  • EQ:
    • Low (Low Pass or Low Shelf):  21 Hz - 19.2 kHz +/- 24 dB
    • Low Mid:  21 Hz - 19.2 kHz +/- 24 dB
    • High Mid:  21 Hz - 19.2 kHz +/- 24 dB
    • High (High Pass or High Shelf):  21 Hz - 19.2 kHz +/- 24 dB
  • Digital Audio:
    • ADC Dynamic Range:  114 dB
    • DAC Dynamic Range:  114 dB
    • Internal Processor:  SHARC 32-bit, floating point
    • ADC, DAC bit depth/ sampling rate:  24 bit/48 kHz
  • Impedances:
    • Microphone Inputs:  1.4 kOhms
    • Channel Insert Return:  2.5 kOhms
    • All Other Inputs:  10 kOhms or greater
    • Tape Out:  1 kOhms
    • All Other Outputs:  120 Ohms
  • Operating Free-air Temperature Range:  0° C to 40° C
  • Storage Temperature Range:  -20° C to 60° C
